MDL-III-785-Lock Narrow spectral line width 600mW 785nm Laser for spectrum analysis
APPLICATION:
Diode infrared laser module at 785nm is made features of ultra compact, long lifetime and easy operating, which is specially designed for Raman spectroscopy , measurement, communication, spectrum analysis, etc.
SPECIFICATIONS:
Model |
MDL-III-785-Lock |
||
Wavelength (nm) |
785±0.3 |
||
Spectral line width(nm) |
<0.2 |
||
Output power (mW) |
>1, 50, 100, … ,600 |
||
Dimensions of beam at the aperture (mm) |
~10×1 |
||
Transverse mode |
Multimode |
||
Operating mode |
CW |
||
Power stability (rms, over 4 hours) |
<1%, <3%, <5% |
||
Warm-up time (minutes) |
<5 |
||
M2 factor |
<20 |
||
Beam divergence, full angle (mrad) |
<3. 0 |
||
Beam height from base plate (mm) |
24. 8 |
||
Polarization ratio |
>50:1 |
||
Pointing stability after warm-up (mrad) |
<0.05 |
||
Operating temperature (℃) |
10~35 |
||
Power supply (90-264VAC or 5VDC) |
PSU-III-LED |
PSU-III-FDA |
PSU-III-OEM |
Modulation option |
TTL/Analog 1Hz-5KHz, 1Hz-10KHz, 1Hz-30KHz, and TTL on/off |
||
Expected lifetime (hours) |
10000 |
||
Warranty |
1 year |
||

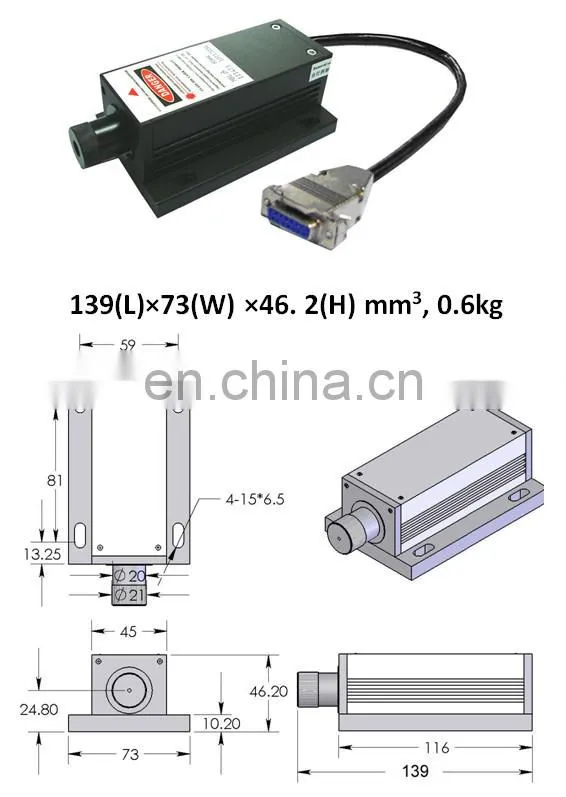

Laser Head
PSU-III-LED Power supply

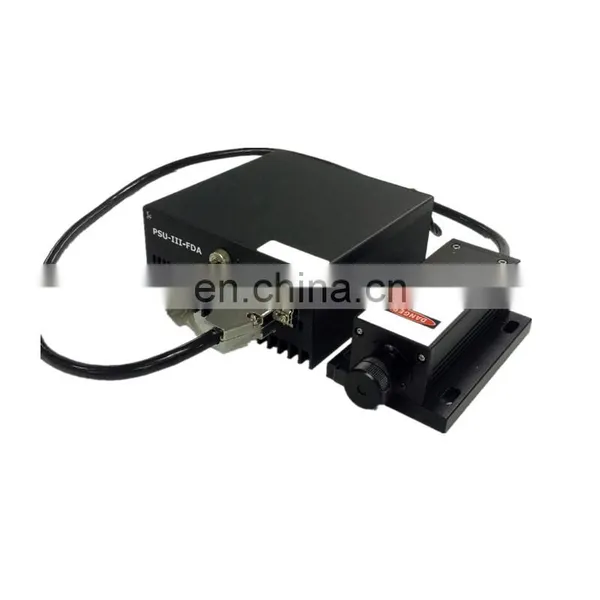

PSU-III-FDA Power supply

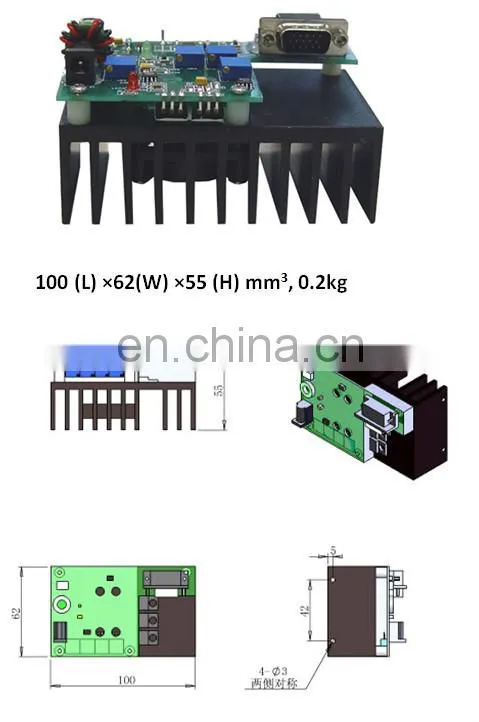

PSU-III-OEM Power supply
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE, RoHS and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
