3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree

3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree thumbnail-1
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree thumbnail-2
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree thumbnail-3
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree thumbnail-4
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree thumbnail-5
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree photo-1
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree photo-2
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree photo-3
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree photo-4
3/5/8/10mm 500*600mm 3K Plain Matte Carbon Fiber Sheet/plate With +/-45 or 0/90 Degree photo-5
US$ 15 - 105 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
XN
Place of Origin:
China
Model Number:
carbon fiber sheet/plate
Contact Supplier Request Quote Chat Now
Zibo Xinnuo International Trading Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name XN
Place of Origin China
Model Number carbon fiber sheet/plate
Shape Carbon Plate
Application Other, diving equipment
Dimensions max 1200*2100mm
Working Temperature -80~+120 degrees
Volatile 0.0001
Ash Content (%) 0.0001
H Content (%) 0.0001
N Content (%) 0.0001
S Content (%) 0.0004
C Content (%) 93
Product Type Carbon Fiber

3/5/8/10mm 500*600mm 3K plain matte carbon fiber sheet/plate with +/-45 or 0/90 degree



 The Carbon fiber Plates/sheets are multiple layers of unidirectonal carbon fiber oriented at  0/90 degree(can be +/-45 degree, Client need to note us, Otherwise we will do default 0/90 degree), The surface is a layer of 3K plain weave carbon fiber.

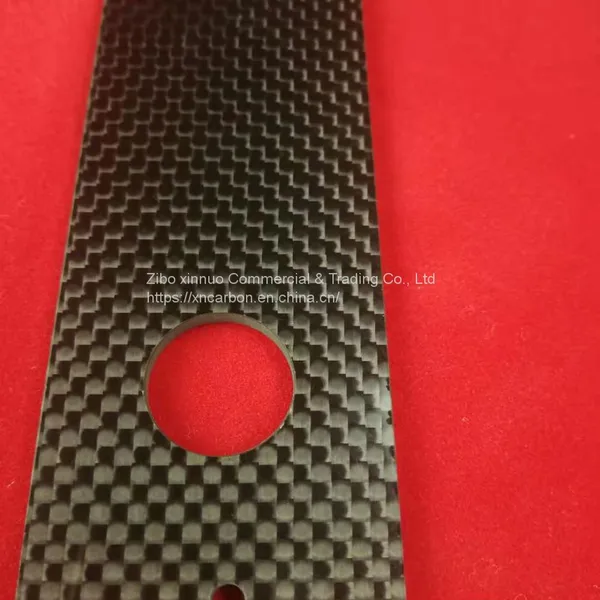

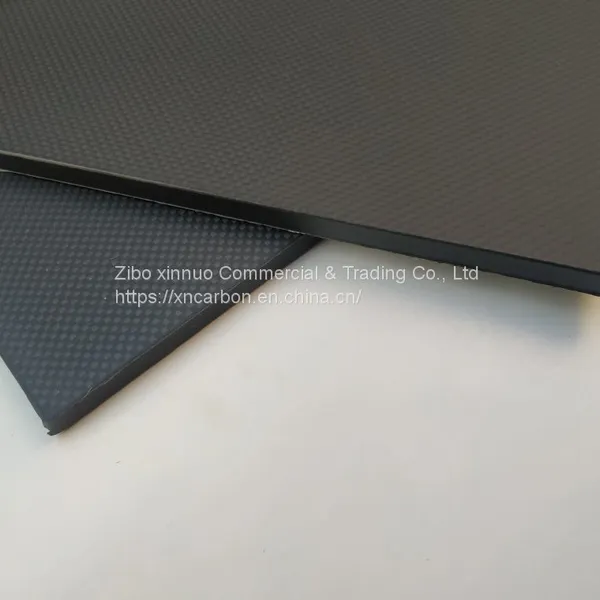

See the 3K plain matte carbon fiber plate picture for example.


It details as follows:


Size Suface Compose

3*500*600mm/8*500*600mm

  Matte 3K twill +UD(+/-45 degree)




Carbon fiber plates/sheets have advantages as follows:

  • High strength and stiffness with low weight

  • Excellent fatigue resistance

  • Dimensional stability: Low to Zero CTE (Coefficient of Thermal Expansion)

  • X-Ray transparency

So it can be used for the following applications:


  • Light weight strong structural components,for example UAV drone,bridge panel,airplane panel;

  • Replace other material to increase strength,for example wall, bridge pier;

  • It good performance for X-Ray transparency,So it can used for Medical radiation equipment lying board

Carbon fiber sheets/plates can be customized.  for example 300*300mm,400*500mm, 500*500mm ,1000*6000mm ,1m*1.2m etc.Thickness can from 1mm to 20mm,We have the capacity to  produce carbon fiber  sheets/plates with differnt thicknesses and sizes.

You can talk to our engineer for your specific needs.





Product Tags: carbon fiber plate , carbon fiber sheet , 3K plain carbon fiber sheet , 3K twill carbon fiber plate , 3mm 5mm 6mm 8mm carbon sheet , 500*600mm 3k plain carbon panel
