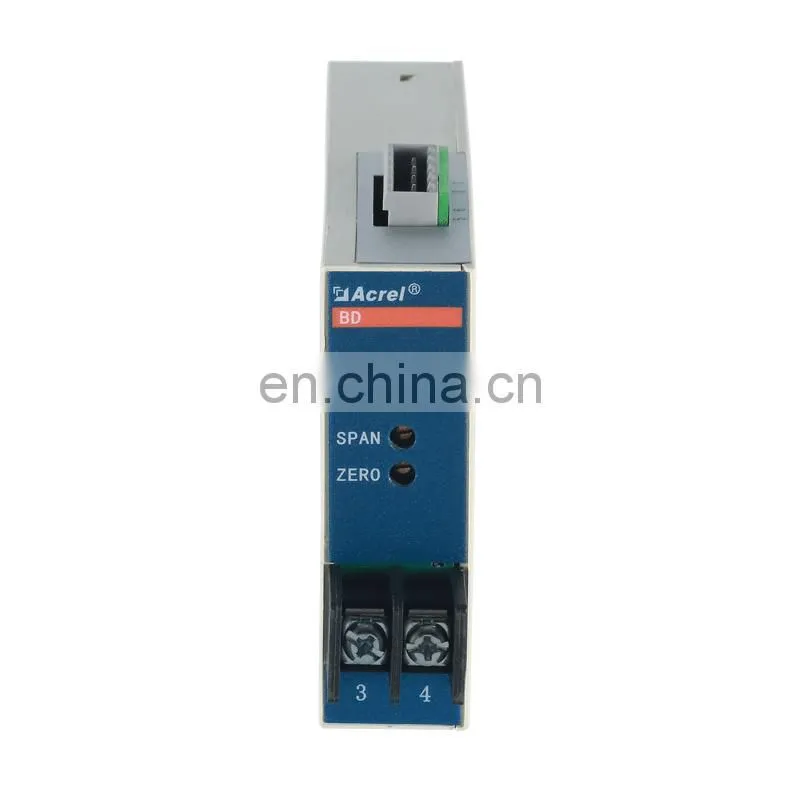

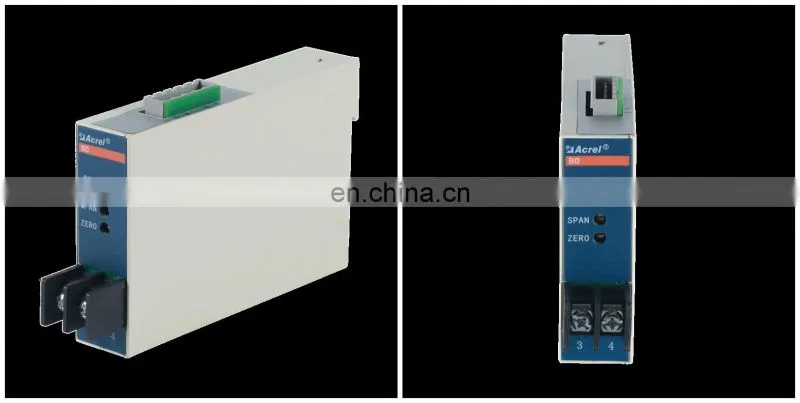

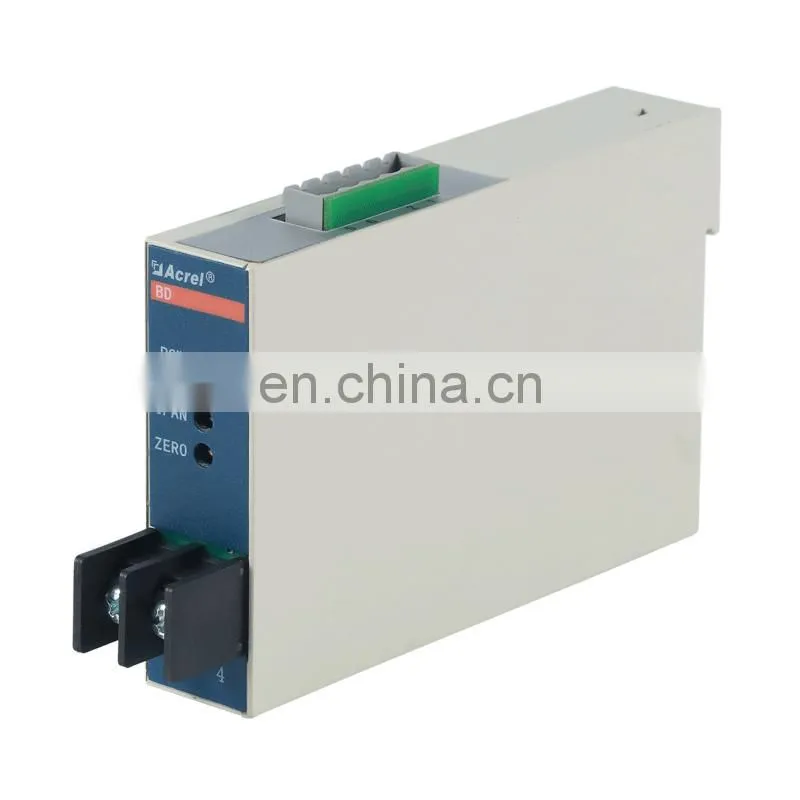

DC Current Transducer BD-DI Electricity Transmitter
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel BD-DV dc Voltage Transformer Input 0-10v/0-75mV With 4-20mA Analog OutputNegotiableMOQ: 1 -
AC Current Transducer BD-AI Measuring 0-5A With 4-20mA Analog OutputNegotiableMOQ: 1
-
Acrel 0-5A Measurement Single Phase AC Current Transducer/sensor BD-AI With Factory PriceNegotiableMOQ: 1
-
BD-AI Acrel AC 1A 5A Measuring Range Single Phase Current Transducer With RS485NegotiableMOQ: 1
-
Single Phase Current Transducer BD-AI/C With RS485 CommunicationNegotiableMOQ: 1
DC Current Transducer
Product Description
Characteristic
General
BD series is olate and convert electrical parameters(e.g.current,voltage,frequency,power and power factor) in the power grid into
DC analog signal or digital signal.
Standards
IEC/EN61869-1,IEC/EN61869-2
* Input: DC4-20mA,0-20mA
* Output: DC4-20mA,0-20mA,0-5V,0-10V
* Accuracy: Class 0.5
* Power supply: AC85-265V / DC24V
* Frequency: 45-65Hz
* Frequency: 45-65Hz
* Response time: <400ms
* Insulation resistance: ≥100MΩ* Continuous overload: 120%In
* Environment:
Operating temperature:-10℃ ~ +55℃
Storage temperature:-25℃ ~ +70℃
Humidity, ≤95%RH, no dew, no aggressive gas
Storage temperature:-25℃ ~ +70℃
Humidity, ≤95%RH, no dew, no aggressive gas
* Altitude: ≤2500m
* Installation method: TS35mm rail or screw
Type |
Function |
FOB Shanghai (USD) |
||
BD-DI |
Input DC4-20mA,0-20mA;Output:4-20mA or 0-5V Power supply:AC/DC85-270V or DC24V
|
57.4 |
||
BD-DV |
Input DC0-10V,0-75mV;Output:4-20mA or 0-5V Power supply:AC/DC85-270V or DC24V
|
57.4 |
||
Specification
Dimension
Wiring
Packing & Delivery
