Product Description:

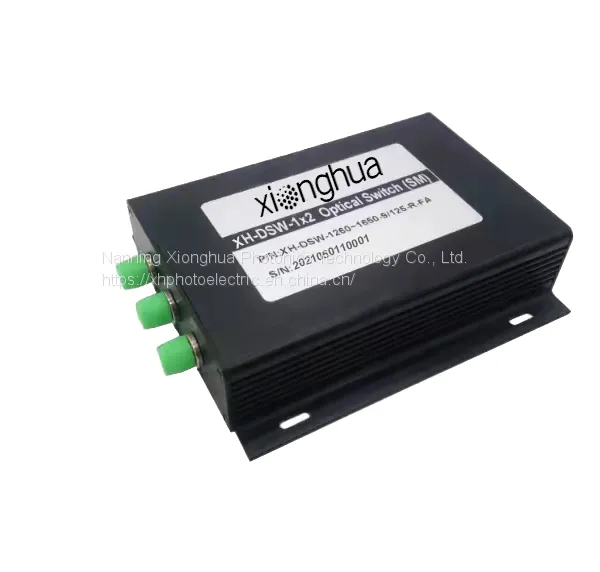

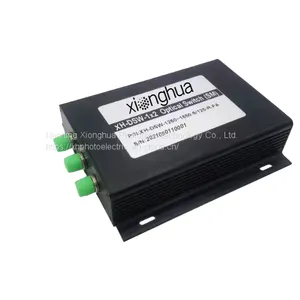

XH-OLP-1-1- Optical Line Protection module is mainly used in optical fiber transmission to automatically switch the main fiber and backup fiber fault judgment. In the optical network signal link, when the optical signal of the main fiber exceeds the set optical power alarm value (such as the threshold set by the power drop, including no light), the module automatically switches from the main fiber to the optical path of the backup fiber, and vice versa. In the event of a fiber failure, the module automatically switches back to the main fiber (the module detects whether the optical path is normal, and the normal optical path can be automatically switched). The module supports RJ45 Ethernet and serial RS-232 communication, and the status information of the module can be inquired through commands.
Features:
With low insertion loss and high reliability
Real-time monitoring of the status of the main and standby fiber optic signals
The optical path can be switched manually and automatically
Support Ethernet and serial communication control
Parameter：
Parameter parameter value
Model XH-DSW-1X2
Insertion loss (dB) Typical value: 0.6 Maximum value: 1.2
Wavelength range (nm) 800~1310 1260~1650
Working wavelength (nm) 850/980/1310 1310/1550/1625
Return loss (dB) Multimode ≥30 Single mode ≥50
Channel crosstalk (dB) Multi-mode ≥ 35 Single-mode ≥ 55
Polarization related loss (dB) ≤0.05
Wavelength dependent loss (dB) ≤0.25
Temperature related loss (dB) ≤0.25
Repeatability (dB) ≤±0.02
Switching times (Times) ≥107
Switching time (ms) ≤10
Transmission power (mW) ≤500
Working voltage (V) 5
Working temperature (℃) -20~+70
Storage temperature (℃) -40~+85
Package size (mm) (L)104.0×(W)120×(H)28±0.2mm
Ordering information: XH-OLP-1-1-M-A-B-C-D
| Working wavelength（A） | Fiber type（B） | Power down state（C） | Connector（D） |
| 1310:1310nm 1550:1550nm 1625:11625nm X:other | SM:SM,9/125 M5:MM,50/125 M6:MM,62.5/125 X:other | L: Keep the light path unchanged N: Switch to the standby end | FP: FC/PC FA: FC/APC X:other |
Reminder: The module comes standard with 5V power adapter, serial cable, and network port cable.
