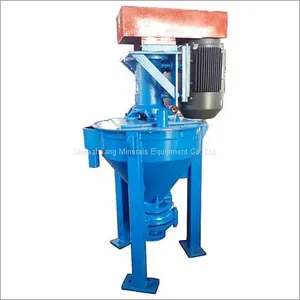

Help CenterVertical Tank Froth Pump SF/50QV
Related Products
-
SHF Series Horizontal Metal Froth PumpsNegotiableMOQ: 1 Set -
100ZGB Metal Slurry Pump for Power PlantsNegotiableMOQ: 1 Set
-
Mineral Processing Tailings Slurry Pump 150ZGBNegotiableMOQ: 1 Set
-
ZGB Heavy Duty Centrifugal Slurry PumpNegotiableMOQ: 1 Set
-
Coal Washing Heavy Duty Slurry Pump 100ZJNegotiableMOQ: 1 Set
Certificate: CE/ISO
Place of Origin: Hebei, China
Introduction:
● Color: Blue
● Material: A05 high chrome iron alloy
● Function: Delivering foam slurries
● Type: Vertical
● Theory: Centrifugal
● Efficiency: Max.55
The type SF Froth Pump is a vertical pump complete with a hopper that utilizes casings and liners from the Type ‘SH’ pumps.
It is designed to pump frothy slurries more efficiently by de-aerating or partially de-aerating the froth before it enters the pump head, utilizing an induced vortex principle.
The ‘SF’ range is available in sizes ranging from 50mm up to 200mm discharge diameter.
Pump Model: SF/50QV
Hard metal vertical froth pumps SF series has been designed to increase the pumpability of frothy slurry. The principle of operation is similar to that of hydrocyclone separation.
Standard pumps are supplied with parts in wear-resistant high chrome iron alloy, with a nominal hardness of 58-65HRC.
The SF froth pump is ideal for all applications involving the handling of air-entrained slurries, such as flotation froth in base metal concentrators, phosphate and apatite washing plants, and calcium carbonate upgrading plants. The pump can also be used as a mixing and distribution unit, where the dry powder has to be mixed with water.
Specifications:
|
Pump Model |
Allowable Max. Power (kW) |
Material |
Clear Water Performance |
Diameter |
||||
Capacity Q |
Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
Suction (mm) |
Discharge (mm) |
|||
Impeller |
m3/h |
|||||||
SF/50QV |
15 |
Metal (A05) |
7.6-42.8 |
6-29.5 |
800-1800 |
45 |
100 |
50 |
SF/75QV |
18.5 |
23-77.4 |
5-28 |
700-1500 |
55 |
150 |
75 |
|
SF/100RV |
37 |
33-187.2 |
5-28 |
500-1050 |
55 |
150 |
100 |
|
SF/150SV |
75 |
80-393 |
5-25 |
250-680 |
55 |
200 |
150 |
|
SF/200SV |
110 |
126-575 |
5.5-25.5 |
350-650 |
55 |
250 |
200 |
|

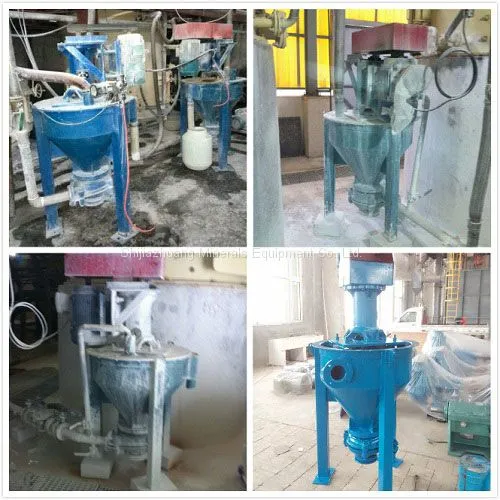

Projects with SF Frothy Pumps:
