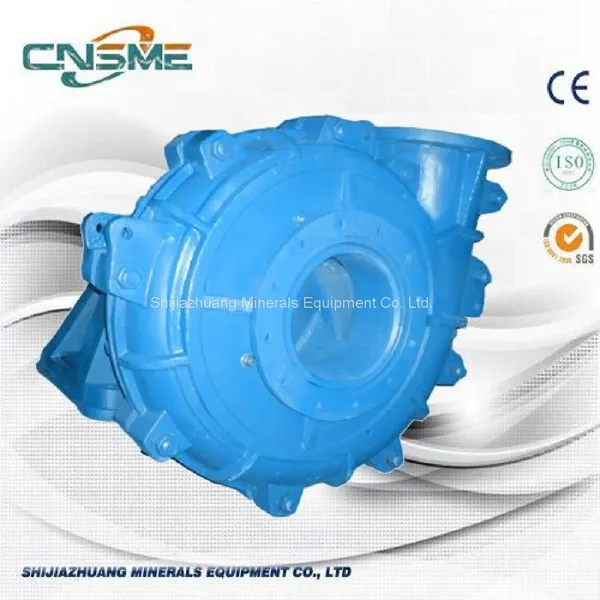

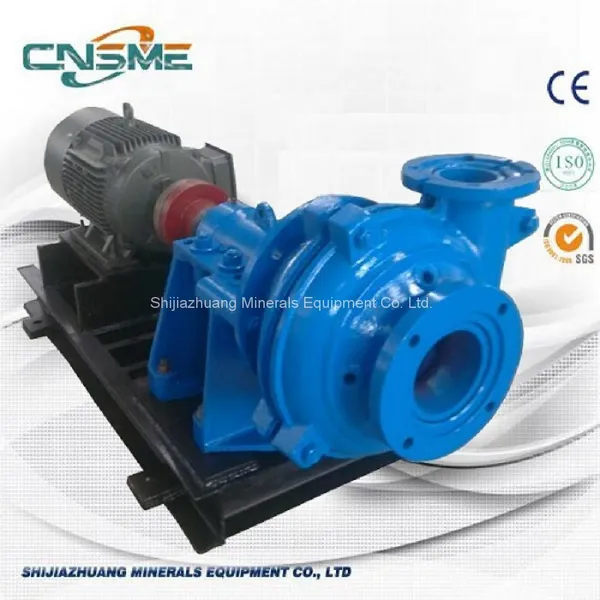

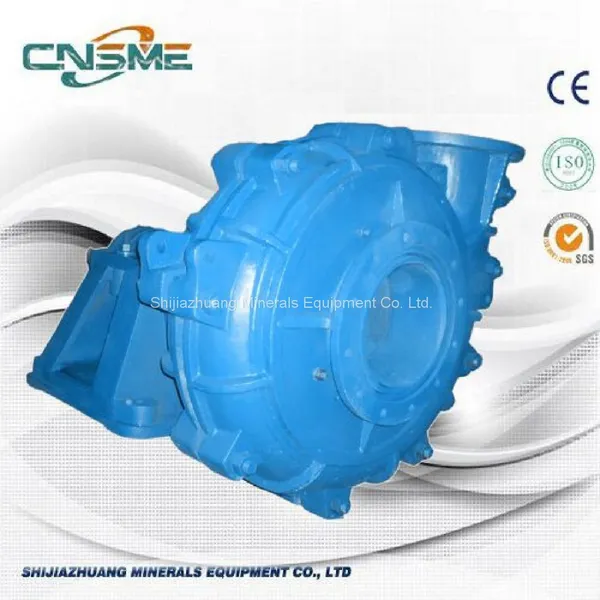

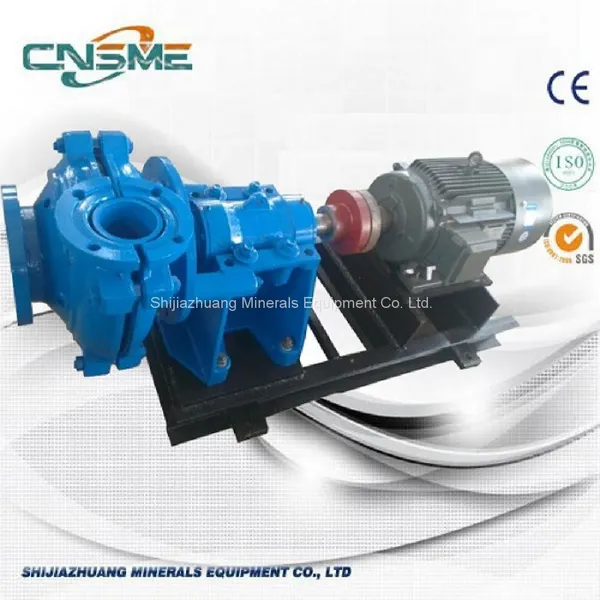

SL Series Ligh Duty Slurry Pumps

SL Series Ligh Duty Slurry Pumps thumbnail-1
SL Series Ligh Duty Slurry Pumps thumbnail-2
SL Series Ligh Duty Slurry Pumps thumbnail-3
SL Series Ligh Duty Slurry Pumps thumbnail-4
SL Series Ligh Duty Slurry Pumps thumbnail-5
SL Series Ligh Duty Slurry Pumps photo-1
SL Series Ligh Duty Slurry Pumps photo-2
SL Series Ligh Duty Slurry Pumps photo-3
SL Series Ligh Duty Slurry Pumps photo-4
SL Series Ligh Duty Slurry Pumps photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
CNSME
Model Number:
SL/75C, SL/150E, SL/300S
Application:
Sewage
Contact Supplier Request Quote Chat Now
Shijiazhuang Minerals Equipment Co. Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNSME
Model Number SL/75C, SL/150E, SL/300S
Application Sewage
Fuel Diesel
Power Electric
Usage Water
Theory Centrifugal Pump
Standard or Nonstandard Standard
Pressure High Pressure

Ligh Duty Slurry Pumps; Metal Lined Slurry Pumps; Tailings Slurry Pumps

Model: SL/75C, SL/150E, SL/300S

Series: Metal Lined Slurry Pumps

General Introduction:

▶Our horizontal slurry pumps are designed for heavy-duty applications such as mining, minerals processing, mill discharge, power plants, tailings, and other industrial applications, for maximum abrasion, erosion, and corrosion resistance.

▶The pumps are in a wide range of sizes, available with both high chrome and rubber wearing parts. Components like impeller and volute come in a range of hard metal types and elastomers to suit the specific application.

▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal, and mechanical seal.

▶Our metal-lined slurry pumps are designed for heavy-duty industrial applications, to handle the most arduous slurries.

▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp-edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.

▶Designed for rugged duties while offering higher efficiencies, the SL series is a combination of the SH pump’s unique features.

▶The SL Series Slurry Pumps provides the widest range of hydraulics from the 20mm to 550mm discharge pumps. The 20mm pump is perfect for the laboratory or in demonstration plants.



Specifications:


Pump
Model

Outlet
(mm)

Allowable
Max. Power (kw)

Material

ClearWater Performance

Impeller

Capacity  Q

Head
H(m)

Speed
n(r/min)

Max.Eff.
η%

NPSH
(m)

No. of
Vanes

Vane Dia.
(mm)

Impeller

m3/h

l/s

SL/20A

20

7.5

Metal
(A05)

2.34-10.8

0.65-3

6-37

1400-3000

30

5

152.4

SL/50B

50

15

16.2-76

4.5-20

9-44

1400-2800

55

190

SL/75C

75

30

18-151

5-42

4-45

900-2400

57

2290

SL/100D

100

60

500-252

14-70

7-46

800-180

60

2-3.6

305

SL/150E

150

120

1115-486

32-135

12-51.5

800-1500

65

2-6

381

SM/200E

200

120

666-1440

185-400

14-60

600-1100

73

4-10

549

SM/200F

200

260

666-1440

185-400

14-60

600-1100

73

4-10

549

SL/250E

250

120

396-1425

110-396

8-30

500-800

77

2-10

550

SL/300S

300

560

468-2538

130-705

8-60

400-950

79

2-10

653

SL/350S

350

560

650-2800

180-780

10-59

400-840

81

3-10

736

SL/400ST

400

560

720-3312

200-920

7-51

300-700

80

2-10

825

SL/450ST

450

560

1008-4356

280-1210

9-48

300-600

80

2-9

933

SL/550TU

550

1200

1980-7920

560-2200

10-50

250-475

86

4-10

1213



Materials:

Description of Parts

Material

Material Code

Pump Body, Split-Casing

Grey Iron

G20/G21

Ductile Iron

D20/D21

Impeller, Volute,
Wear Liners, Expeller,
Expeller Ring,
Stuffing Box

27% High Chrome
Natural Rubber

A05/R55

Shaft

304 Stainless Steel

C21

316 Stainless Steel

C23

Shaft Sleeve

304 Stainless Steel

C21

316 Stainless Steel

C23

Aluminum Oxide Coating, White

J04

Chrome Oxide Coating, Black

J05



Driven Type:

DC(z): The pump and the engine are directly connected by a coupling.

Belt-driven Types: The pump and the engine is connected by pulleys and belts --- CV, CR(z), ZV(z).





Applications:

Oil sands, Mineral Sands, Fine tailings, Phosphoric acid, Coal, Flotation


Product Tags: Horizontal Slurry Pumps , SL Heavy Duty Pump , Warman Pump , Metal Lined Slurry Pumps , Ligh Duty Slurry Pumps
