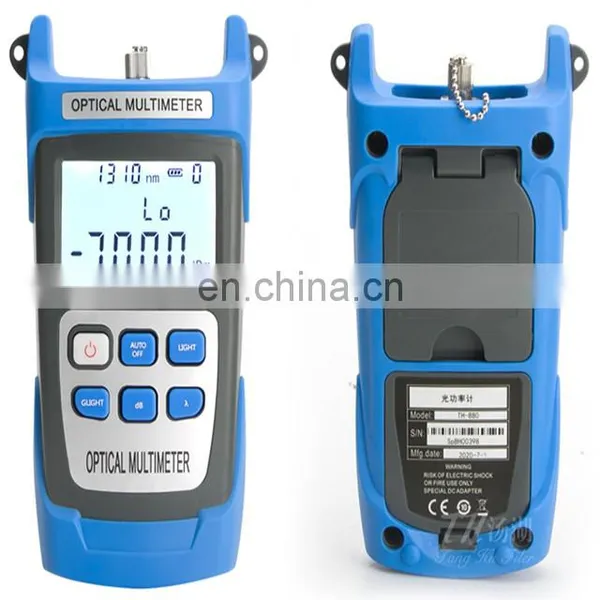

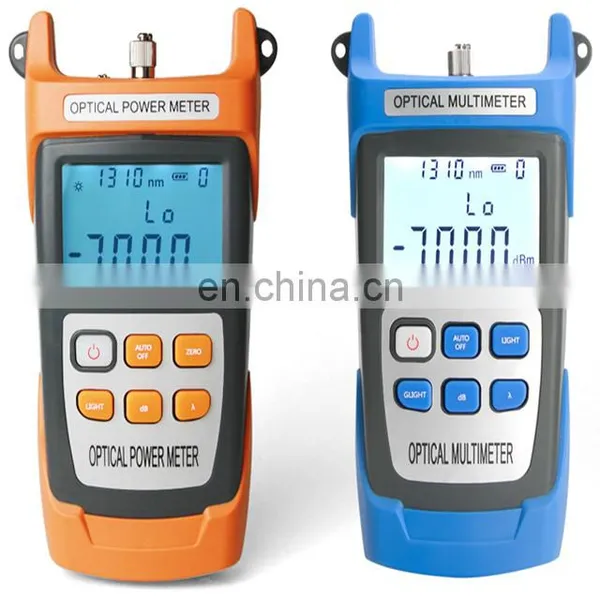

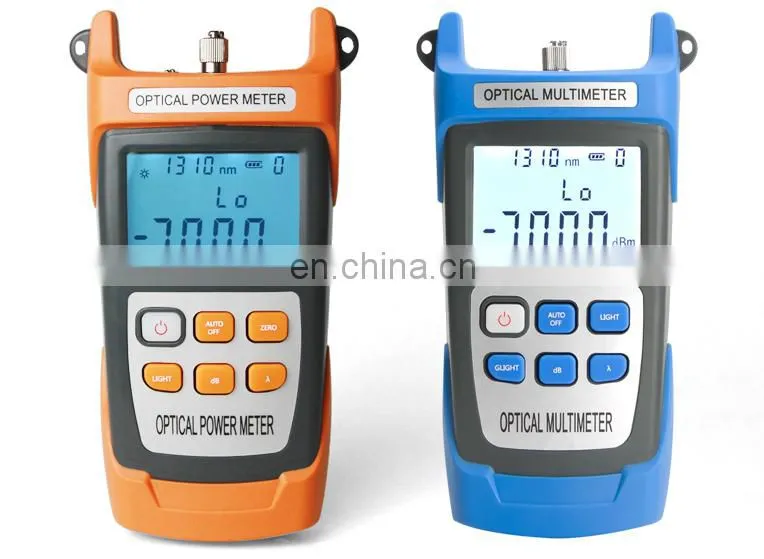

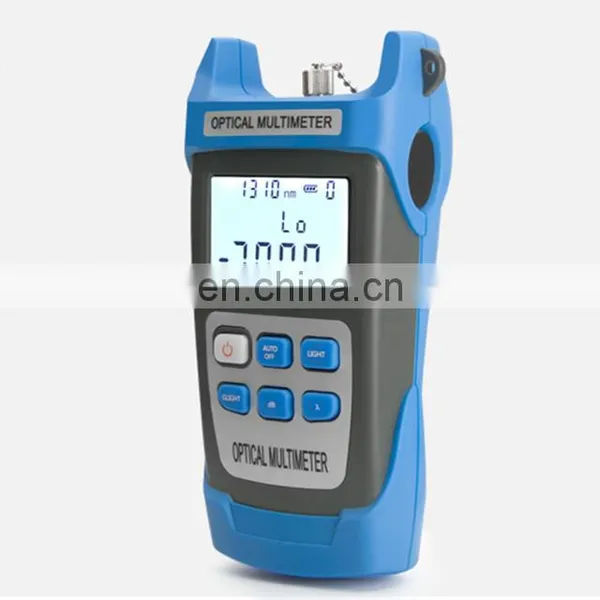

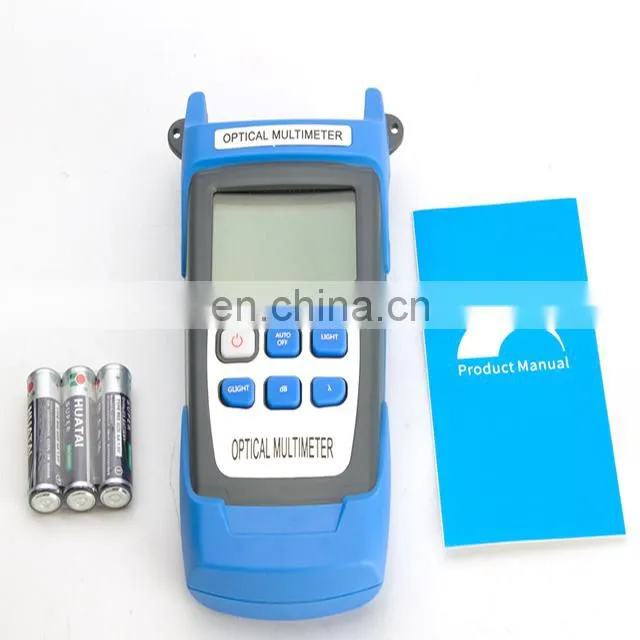

Handheld fiber optical laser light source power meter TH-880 850 1625nm six wavelength fiber optical power meter
P
1.Quick Details
Qdapt company,TH-880 handheld fiber optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
2. Features
1.Self calibration by user himself
2.Rechargeable lithium battery supports continuous work for up to 48 hours.
3.Linear indicators (mW) and non-linear indicators (dBm) display in one screen
4.UniqueFC/SC/ST universal port (see Figures 1, 2), no complex conversion VFL function
5.4-digit LCD display, supporting three display formats: dB,nw and dBm
6.Automatic range switching
7.Automatic power-off, BacklightON/OFF
8.Multi-wavelength measurement
9.Low power indication

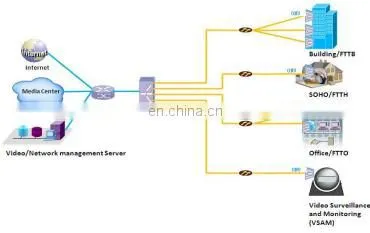

3.Application
4.Specifications
|
Name |
Fiber Optic Power Meter |
|
Type |
TH-880 |
|
Country Of Origin |
Qingdao, China |
|
Dimension |
200x105x50mm |
|
Weight |
310g |
|
Wavelength |
850~1625nm |
|
Calibrated Wavelength |
850,980,1300,1310,1490,1550nm |
|
Measurement Range |
-70~+3dBm |
|
Detector |
InGaAs |
|
Uncertainty |
±5% |
|
Resolution(dB) |
0.01 |
|
Optical Connector |
FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
|
Battery Operating Time |
240 h with 1.5V Battery(3) |
|
Operating Temperature(°C) |
-10 ~ +60 |
|
Storage Temperature(°C) |
-25 ~ +70 |
|
Relative Humidity |
0 to 95% (non-condensing) |
5.Partner
6.FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time??
A: 1) Samples: within one week. 2) Goods: 15-20 days usually.
