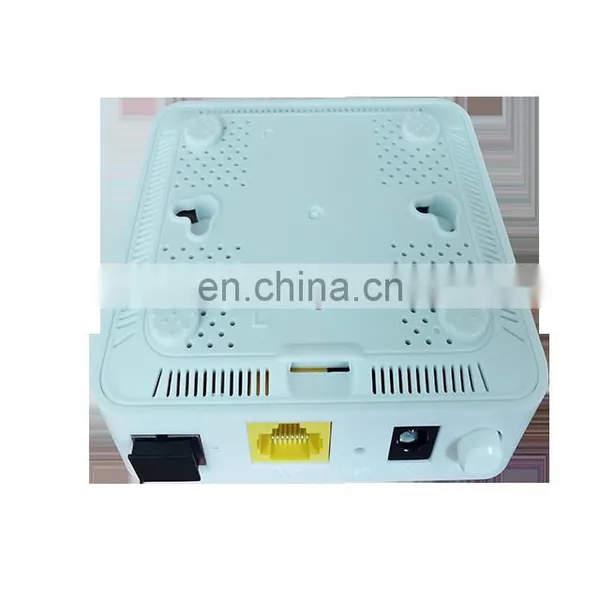

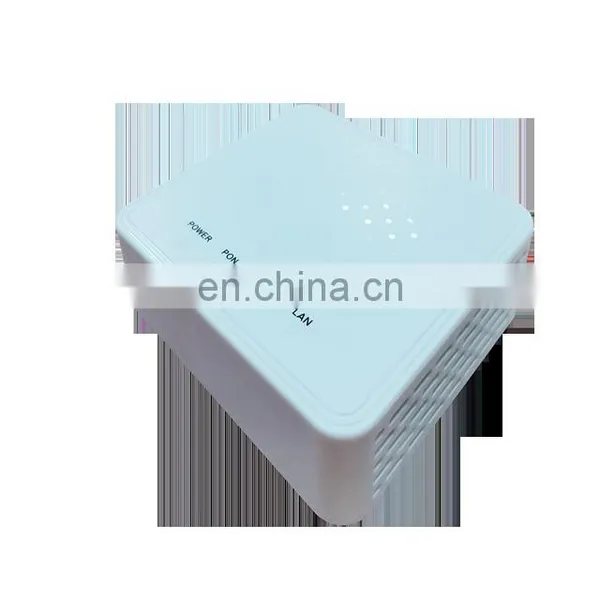

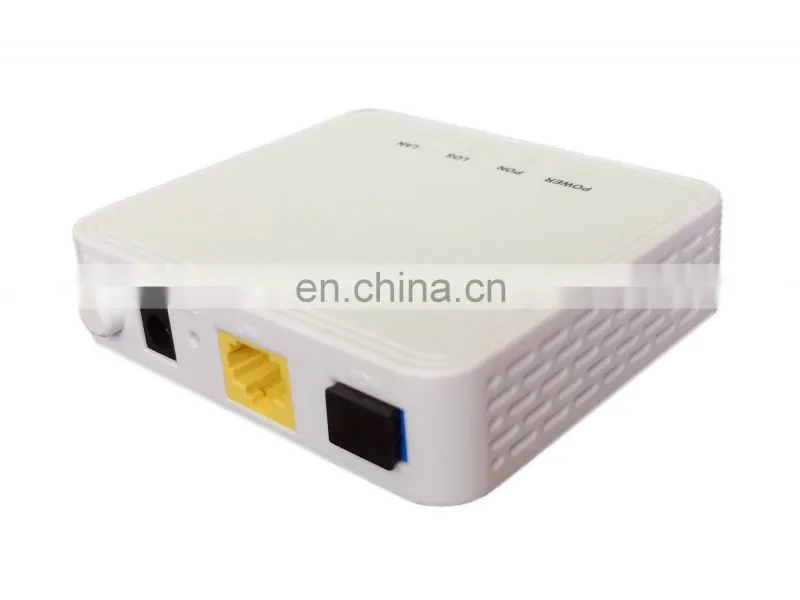

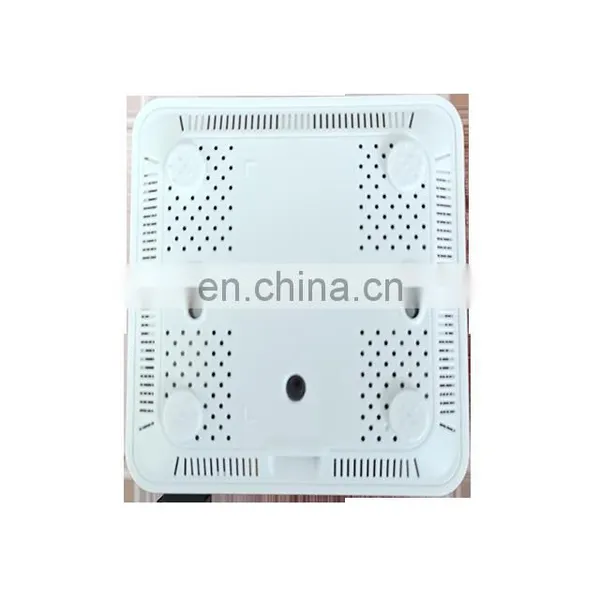

XPON ONU
1.Quick Details
G/EPON 1GE Security ONU is support Dual mode(EPON and GPON), It can also be applied to a wide temperature environment. and also has a powerful firewall function.G/EPON 1GE ONU meets telecom operators FTTO (office), FTTD (Desk), FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and designa GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.
2.Features
Dual Mode( can access gpon/epon olts ).
Compatible with popular OLT(HW,ZTE...)
Industrial Design
Routing or Bridging Mode
Detecting Rogue ONU
Flow & Storm Control , Loop Detection
Firewall: DDOS, Filtering Based on ACL/MAC/URL
O&M: WEB/TELNET/OAM(OMCI)/TR069
Smart and compact ABS casing
3.Application
4.specifications
|
Technical Item |
1GE ONU-CM2801SX |
|
PON Interface |
1 G/EPON Port (EPON Px20+ and GPON Class B+) Wavelength: Tx 1310nm,Rx 1490nm Transmit distance: 20KM Connector:SC/UPC Receiving Saturation:≥-8dBm Receiving Sensitivity:≤-28dBm Transmitting Optical power: 0~+4dBm |
|
LAN Interface |
1 x 10/100/1000Mbps auto-adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector |
|
LED |
3, For Status of REG, SYS, LINK/ACT |
|
Operating condition |
Temperature: -30℃~+70℃ Humidity: 10%~90%(non-condensing) |
|
Storing condition |
Temperature: -30℃~+70℃ Humidity: 10%~90%(non-condensing) |
|
Power supply |
DC 12V/0.5A |
|
Power consumption |
≤4W |
|
Software Parameters |
|
|
Basic |
Support MPCP discover®ister /Support authentication Mac/Loid/Mac+Loid Support Triple Churning/Support DBA bandwidth/Support authentication SN/Psw/Loid/Loid+Psw Support auto-detecting, auto-configuration, and auto firmware upgrade |
|
Alarm |
Support Dying Gasp/Support Port Loop Detect/Support Eth Port Los |
|
LAN |
Support Port rate limiting/Support Loop detection/Support Flow control/Support Storm control |
|
VLAN |
Support VLAN tag mode/Support VLAN transparent mode Support VLAN trunk mode(max 8 VLANs)/Support VLAN 1:1 translation mode(max 8 VLANs) Auto VLAN detection |
|
Multicast |
Support IGMPv1/v2 /Support IGMP Snooping /Max Multicast VLAN 8 /Max Multicast Group 64 |
|
QoS |
Support 4 queues /Support SP and WRR /Support 802.1P |
|
L3 |
Support IPv4 /Support DHCP/PPPOE/Static IP /Support Static route/Support NAT |
|
Management |
Support CTC OAM 2.0 and 2.1/Support ITUT984.x OMCI/Support WEB/Support TELNET/Support CLI |
|
Throughput |
Upstream >900Mbps / Downstream >960Mbps |
5.Application Scenario
1) Fiber to the house project
2) Cable network TV
3) Passive optical network system
4) Metropolitan area network
5) Other spectroscopic systems
6.FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5: What about delivery time??
A: 1) Samples: within one week. 2) Goods: 15-20 days usually.
