Product Description

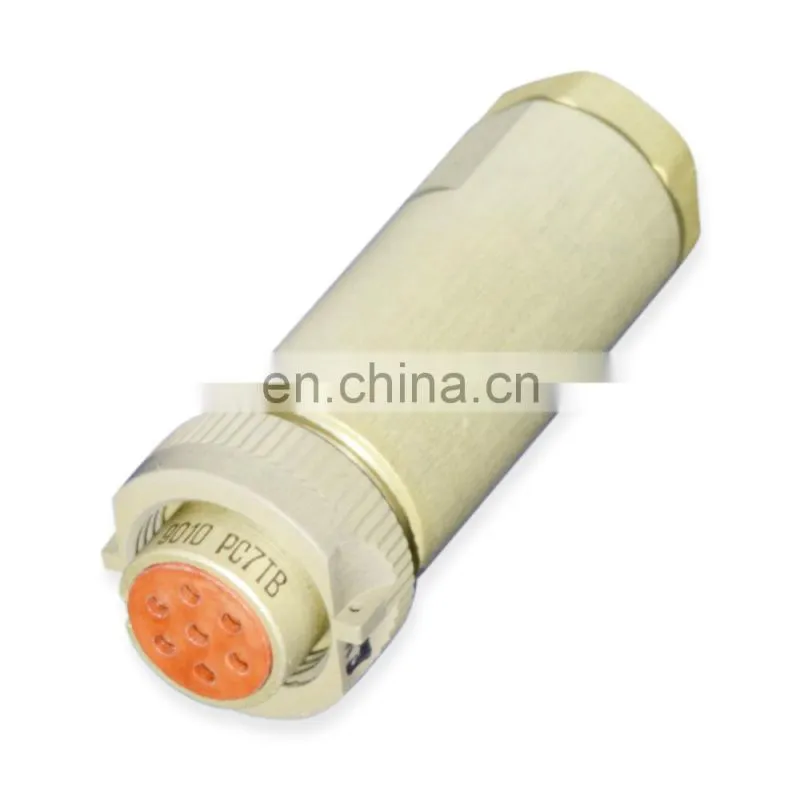

PC7TB Cable outlet with casing russian connectors


Electric low-frequency cylindrical connector PC7TV is designed for operation in DC, AC (with a frequency up to 3 MHz) and pulse currents. Interpretation: РС - connector type, 7 - number of contacts, threaded connection, silver coating of contacts, ТВ - for a macroclimatic area with a humid tropical climate.



Features
TS
AVO.364.047TS
Functional group
low-frequency cylindrical
Design type
cable outlet
Contact type
round
Number of pins or contacts
7
Case standard size
12
Pin diameter
1 mm
Covering of pins or contacts
Ag (argentum)
Housing material
aluminium
Insert material (insulator)
Carbolite
Overall dimensions L*W*H
15х36 mm
Type of casing or nozzle
metal enclosure
Joint method
threaded
Installation method
volumetric
Product color
light-green
Operating position
any
Contact resistance
not exceeding 5 mΩ
Rated voltage
200 V
Operating current
3.1 A
Operating frequency range
1 Hz to 5,000 Hz
Minimum operating time
1,500 h.
Operating temperature range
from -60°С to +85°С
Relative humidity
98% at a temperature of +35°С.
Linear loads
147 m/с²
Resource
500 cycles
Climatic modification
ТВ - omni-climatic, tropical resistant design
Packing & Delivery
Piece net weight
6g
Packaging
Plastic bag + box
Box size
Minimum size 12*10*4 cm
Box weight
Minimum weight 200g
Production for STM
N/a
