Product Description

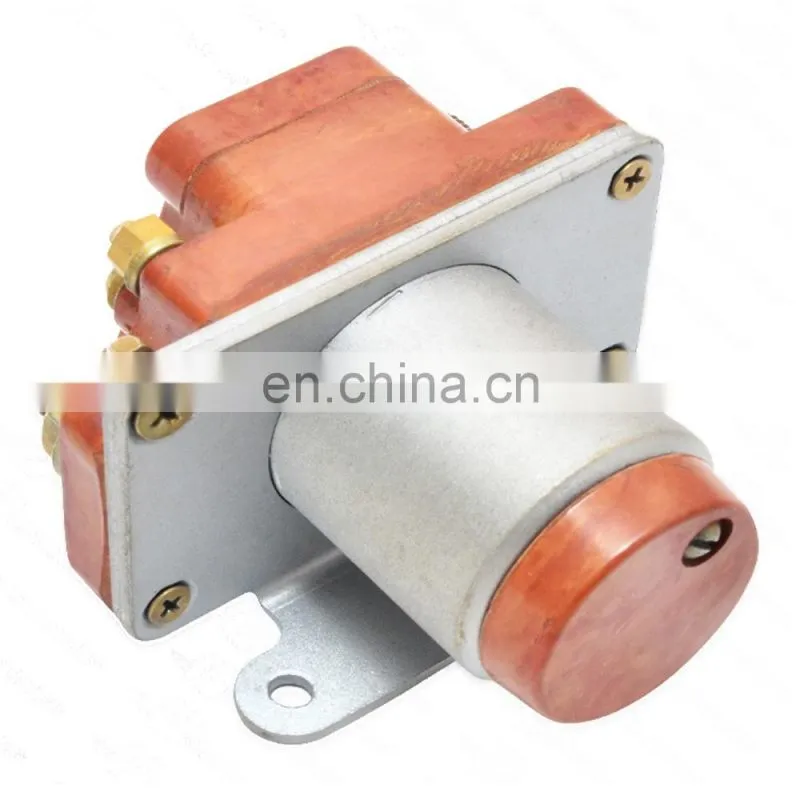

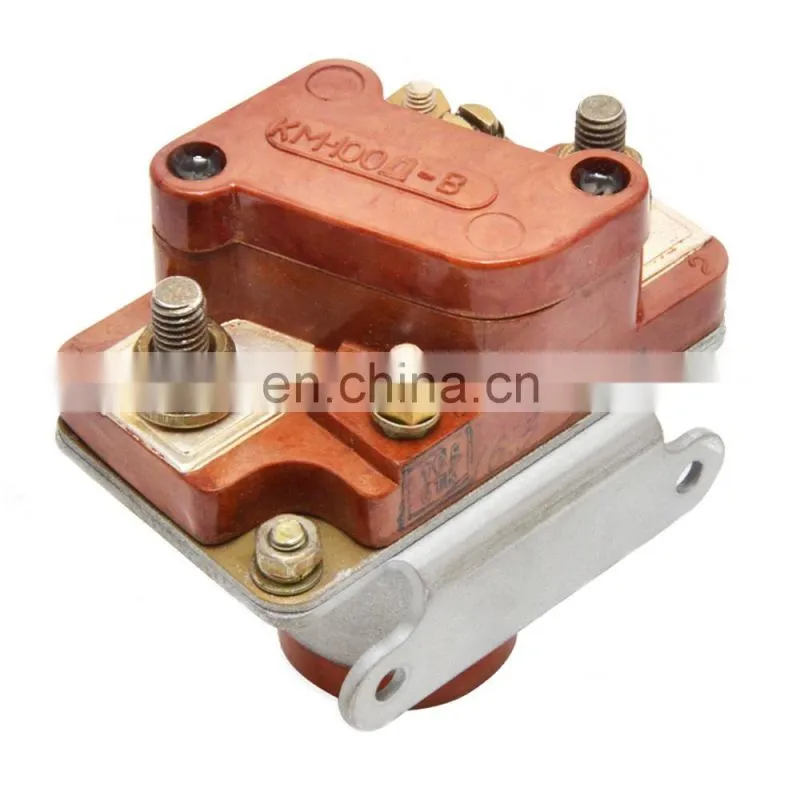

KM100DV Russian components aircraft power systems contactor

KM100D-V Contactor is a small-size continuous-operation contactor. It is designed to connect and disconnect electricity consumers to/from aircraft power systems, which are operated under different climate conditions, including tropical. Direct rated current on a coil - 0.4 A, rated voltage on a coil - 27 V. Definition: K - contactor; M- small-size; 100 - amperage - 100 A; D - continuous operating regime; V - moisture-proof.


Key features:
- TU U 31.2-00213807-041:2007
- Operating regime - continuous
- Operating position - any
- Mounting method - mechanical
- Rated current - 100 A
- Rated voltage - 27 V
- Service life - 5,000 cycles

Features
Technical specifications
TU U 31.2-00213807-041:2007
Overall dimensions L*W*H
70х43х70 mm
Body length
70 mm
Body width
43 mm
Product height
70 mm
Operating regime
Continuous
Mounting method
Mechanical
Operating position
any
Rated current
100 A
Rated voltage
27 V
Service life
5,000 cycles
Operating temperature range
-60°С to +50°С
Relative humidity
Up to 98% at a temperature of +40°С
Product weight
363 g
Packing & Delivery
Piece net weight
363 gr
Packaging
Plastic bag + box
Box size
Minimum dimensions 12*10*8 cm
Box weight
Minimum weight - 200 g
Production for STM
No
