Automotive Particulate Matter Sensor APMS-3302
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Cubic
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automotive PM2.5 Sensor Laser Particle Sensor Module for Automotive Use APMS-3308NegotiableMOQ: 1 Piece -
Automotive PM2.5 Sensor Fast Response for PM 2.5 APMS-3004NegotiableMOQ: 1 Piece
-
Automotive CO2 Sensor Non-dispersive Infrared (NDIR) ACDS-1000NegotiableMOQ: 1 Piece
-
Automotive CO2 Sensor 40000ppm ACDS-1001NegotiableMOQ: 1 Piece
-
Automotive Air Quality Sensor for In-cabin Air Quality Monitoring AQM-1020NegotiableMOQ: 1 Piece
Brand Name
Cubic
Place of Origin
China
Introduction

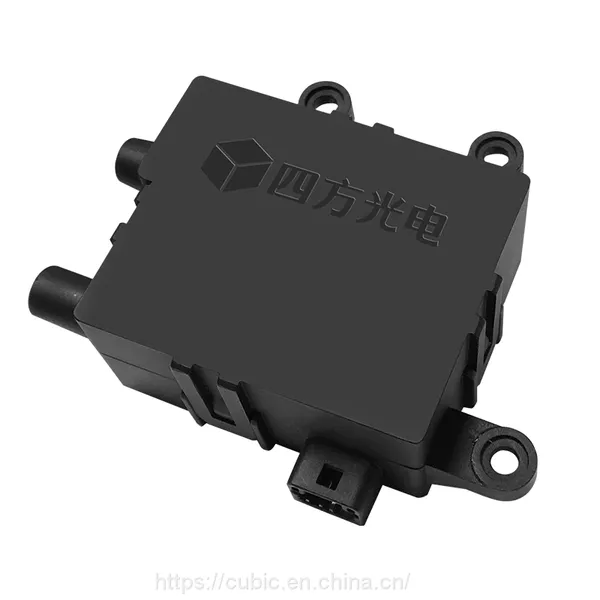

Automotive particulate matter sensor APMS-3302 is a laser particle sensor module for automotive application, which can measure PM2.5 concentration accurately and output in unit of μg/m directly via mathematical algorithm and scientific calibration.
Features
1.Long lifetime, more than 100,000 hours
2.High-temperature laser module with constant power output, working temperature can reach 85℃
3.Multi-channel output, not only PM2.5 but also PM1.0 and PM10 concentration simutaneously
4.Iintelligent identification of different dust sources
5.Accurate, stable and reliable measurement in various practical and complex road conditions
Specifications
| Operating principle | Laser scattering |
| Measured particle size | 0.3μm~10μm |
| Measurement range | 0~1000μg/m³ |
| Resolution | 1μg/m³ |
| Maximum consistency | ≤35μg/m³ , ±5μg/m³; >35μg/m³ , ±15% of reading |
| Response time | ≤1s |
| Time to first reading | ≤10s |
| Digital output | LIN |
| IP rating | IP5K4 |
| Noise |
Applications
Automotive Air Purifier
Automotive Air Conditioner
