Help CenterProfile Bending Machine
Related Products
The profile bending machine is special high-efficiency processing equipment for the bending of various profiles such as angle steel, channel steel, I-shaped copper, flat surface, square tube, round tube, etc. The cnc profile bending machine can complete the end pre-bending and coiling of various profiles He-shaped and hu-shaped workpieces are widely used in aerospace, petrochemical, hydropower, shipbuilding, automobile manufacturing, machinery manufacturing, steel structure construction and other industries. Overview of the structure of the profile bending machine for sale. The machine is an arc downward adjustment structure, the upper roller shaft is fixed, and the two lower spokes respectively make 35 lines of lifting movement around a central shaft relative to the upper spoke shaft. Its function is mainly to pre-bend the end of the profile and the bending profile is bent and deformed, and at the same time, the two lower spokes are also the main driving shafts, which are driven by a hydraulic motor, so that the bent and deformed profile is rolled into shape. In order to prevent the deformation of the profile during the bending process and improve the bending accuracy of the profile, two rollers and rollers are added, which can move up and down vertically to adapt to the profile of different specifications and different bending radii.
The 180-profile bending machine is a downward-adjustable three-spoke bending machine. The bed is a steel plate structure and is treated to eliminate internal stress. The transmission of the main report is transmitted to the power through the hydraulic system through the hydraulic motor, gears, and sprocket for rotating motion. . The two side rollers move in an arc around the central axis. The power transmitted by the hydraulic motor and gears through the hydraulic profile bending machine system and the main stop rotate at the same time. The support rollers are installed on the side caps so that the support report and the side spokes do at the same time. Arc movement to ensure the precision of the rolled profile. According to the requirements of the site and profile, it can be installed vertically or horizontally.
The machine produced by ezhong profile bending machine manufacturer annually is a kind of special high-efficiency metal fabrication equipment for bending angle steel, channel steel, I-shaped steel, flat steel, square steel, round copper and other special-shaped steel. Round process. This machine is advanced in structure, reliable in work, small in size and complete in functions. It is currently the most advanced profile forming equipment domestic and overseas. EZHONG is a professional profile bending machine manufacturer, and we have high quality profile bending machines for sale at a very competitive profile bending machine price.

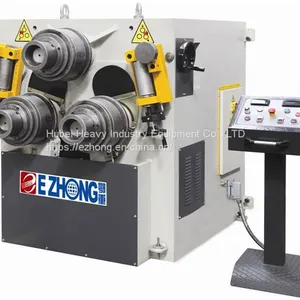

The Details Of EZHONG CNC Profile Bending Machine
- It is an arc downward adjustment type three-spoke profile bending machine, which can complete the functions of rounding, arcing, and rounding of various profiles at one time. (Note: When the precision of the rolled profile is high, a special mold must be prepared. If the accuracy is appropriately relaxed, a general mold can be used to complete the rolling.)
- The CNC profile bending machine body adopts steel welded parts, all of which have undergone annealing and other heat treatment processes. It is a closed frame structure. The position of the upper roller is fixed. The two lower rollers can move in an arc around the fixed center of rotation. All three rollers are active rollers. Its power is provided by a hydraulic motor, which can be rotated in both forward and reverse directions; the lifting of the two lower rollers is hydraulically driven, which is stable in transmission, safe and reliable; the supporting roller devices on both sides of the upper roller are beneficial to control the rolling accuracy of the profile. The two lower rollers are equipped with display devices.
