3660*1220*25mm Size Fiberglass Walkways Non Slip Blue FRP Grating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiberglass Rectangular Tube FRP Pultrusion Pipe Epoxy Fiberglass Tubes Structural FRP Square TubeNegotiableMOQ: 1 -
Anti-uv FRP GRP Hollow Round Plastic Tube FRP Fiberglass Square PipesNegotiableMOQ: 1
-
38mm Mesh Size FRP Walkway Grating Anti-Slip FRP Walkway FlooringNegotiableMOQ: 1
-
High Quality Low Price High Strength 50*50mm FRP GRP Grille Panel Anti Slip Molded Fiberglass GratingNegotiableMOQ: 1
-
High Strength Customized Fiberglass Composite Plastic Molded Grille Sheet FRP Walking GratingNegotiableMOQ: 1
Product Description

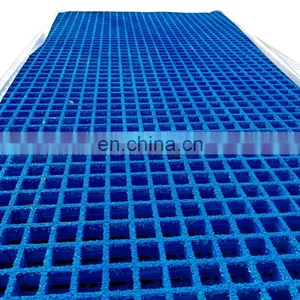

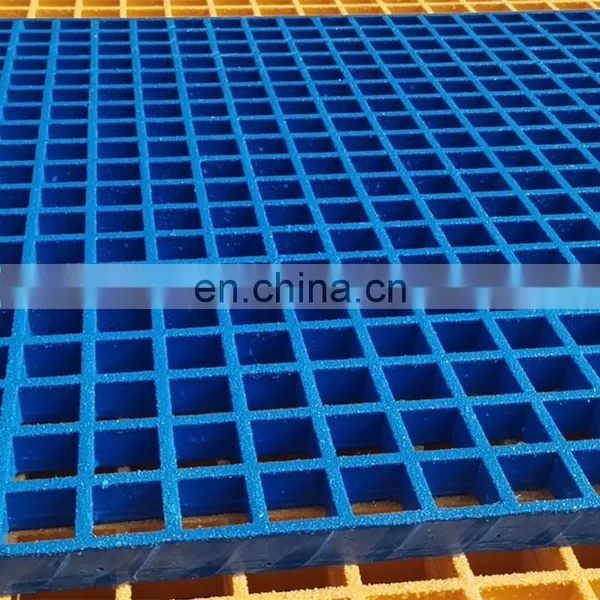

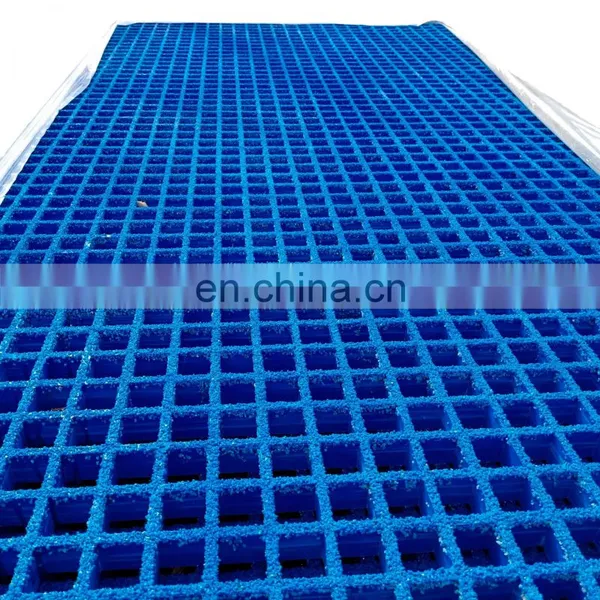

3660*1220*25mm size fiberglass walkways non slip blue FRP grating
Molded FRP grating consists of continuous glass strands encased in resin and wrapped in a surfacing veil which protectsthe fibers and allows resin to saturate the outermost part of the bar as well as penetrate between the glass fibers. This ensures a smooth and corrosion-resistant surface, with a higher glass/resin ratio than molded products. The individual bars.are then assembled using two-piece cross bars and epoxy to mechanically join the load bars.
Specification |
Bar Size (Top/Below)
|
Panel Size (mm) |
Mesh size 38mm*38mm, 25mm thickness |
6.5/5.0mm |
1220x3660,1226x4010,1524x4000,1530x4010,1997x3012 |
Mesh size 38mm*38mm, 30mm thickness |
6.5/5.0mm |
1220x3660,1220x4010,1524x4010,921x3055 |
Mesh size 38mm*38mm, 38mm thickness |
7.0/5.0mm |
1220x3660,1220x4010,2100x4240,998x4010,1220x2440 |
Mesh size 38mm*38mm, 50mm thickness |
9.5/7.5mm |
1220x4010,1220x3666,1230x4010,1220x2440,921x3055 |
Mesh size 38mm*38mm, 60mm thickness
|
10.5/8.5mm |
1230x4010 |
Mesh size 38mm*38mm, 70mm thickness |
11.0/9.0mm |
1230x4010 |
Mesh size 40mm*40mm, 25mm thickness |
6.5/5.0mm |
1007x3007,1007x4007,1247x4047,1527x4047 |
Mesh size 40mm*40mm, 38mm thickness |
7.0/5.0mm |
1527x4047,1247x4047,1007x3007,1007x4047 |
Mesh size 40mm*40mm, 38mm thickness |
7.0/5.0mm |
1527x4047,1007x3007,1007x4047,1247x4047 |
Mesh size 50mm*50mm, 15mm thickness |
6.0/5.0mm |
1228x4020,1220x3660,1220x2440 |
Mesh size 50mm*50mm, 50mm thickness |
8.0/6.0mm |
1524x4000,1220x3660,1220x2440,1220x4000 |
13x13/40x40 micro mesh 38mm thickness
|
6.5/4.5/5.0mm |
1527x4047,1247x4047,1007x3007,1007x4047 |
19x19/38x38 mini mesh 38mm thickness
|
6.5/5.0mm |
1220x3660,1220x2440,921x3055,1220x4000,1226x4010 |
25x25/50x50 mini mesh 50mm thickness
|
8.0/6.0mm |
1532x4020 |
Production process
3660*1220*25mm size fiberglass walkways non slip blue FRP grating
Resin, fiberglass fiber yarn, calcium powder filling, color paste, reagents, etc. are arranged in proportion, stirring for 20
minutes.
2 . Draw yarn
Lay the alkali-free yarn layer by layer to improve the strength of the FRP grating.
Lay the alkali-free yarn layer by layer to improve the strength of the FRP grating.
3 . Compression mold
The stirred raw materials are poured into the mold and compacted mechanically or manually.
The stirred raw materials are poured into the mold and compacted mechanically or manually.
4 . Heat curing
After the grating is heated for 20 minutes, the raw materials and yarn are fused together.
After the grating is heated for 20 minutes, the raw materials and yarn are fused together.
5 . Cooling demoulding, mold lifting
After the above process is completed, cooling for 10 minutes demolding, mold lifting, semi-finished grating finished.
After the above process is completed, cooling for 10 minutes demolding, mold lifting, semi-finished grating finished.
6 . Grinding, painting and washing
The FRP grating is polished and washed with a layer of varnish or water.Packing
The FRP grating is polished and washed with a layer of varnish or water.Packing
Application
3660*1220*25mm size fiberglass walkways non slip blue FRP grating
Product Application:
Fiberglass is light weight,height strength,Non-Conductive,Corrosion Resistant,Slip Resistant and No Welding required.Widely used by:
Chemical Plants ------ Having excellent resistant to corrosion, FRP grating is extensively used in Chemical Plants.It is mainly used operation platform,walkways,oil storage tanks,power distribution boards and rooms.etc.
Manufacture ------ FRP grating can be used as Walkways,Fencing,Racks and shelving,Wash racks,Scaffolding,Drainage pit covers Stairs,etc.
Transportaion ------ FRP grating can be used as access ways,Platforms(static resistant),docks,trenches,tanker,Stairs,Freight car flooring fill areas as well as walking surfaces and in work areas,etc.
Water and Sewage Water ------ FRP grating are environmentally safe and can be used extensively as filter media support,access walkways,trench Scaffolding,manhole cover,walkovers Scaffolding and Fencing,Stairs,etc.

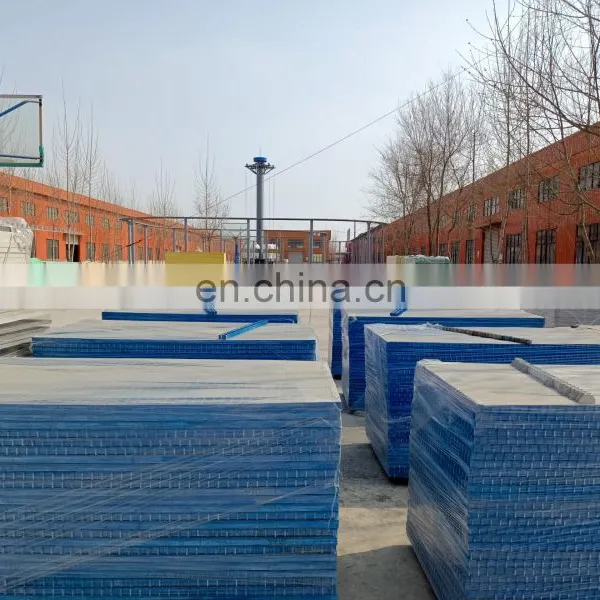

Packing&Shipping
