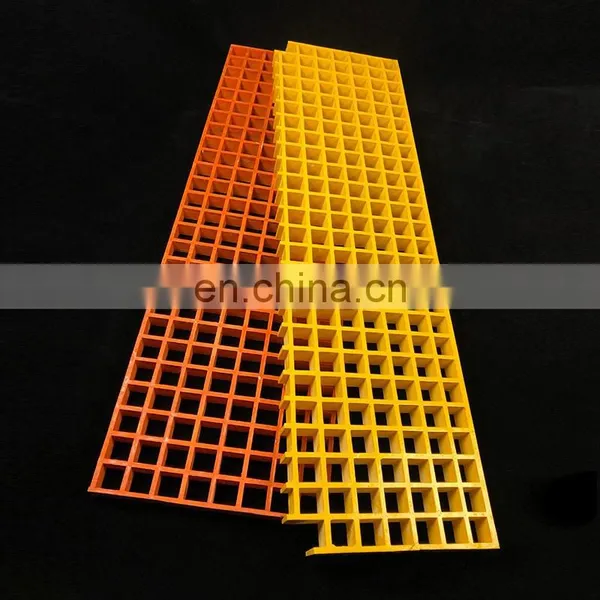

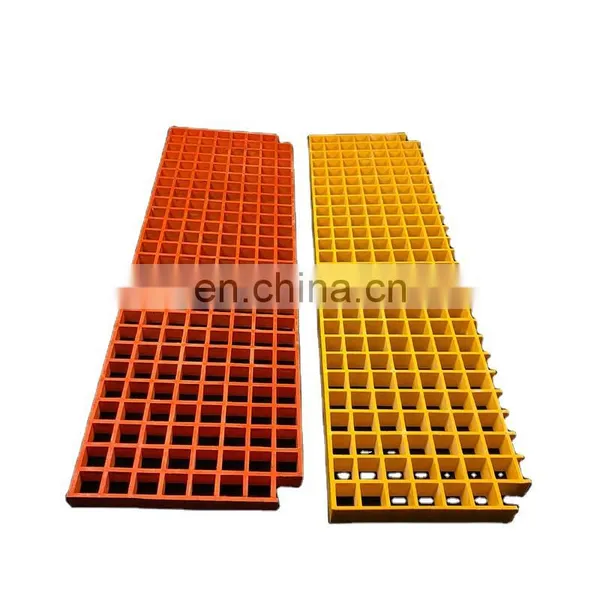

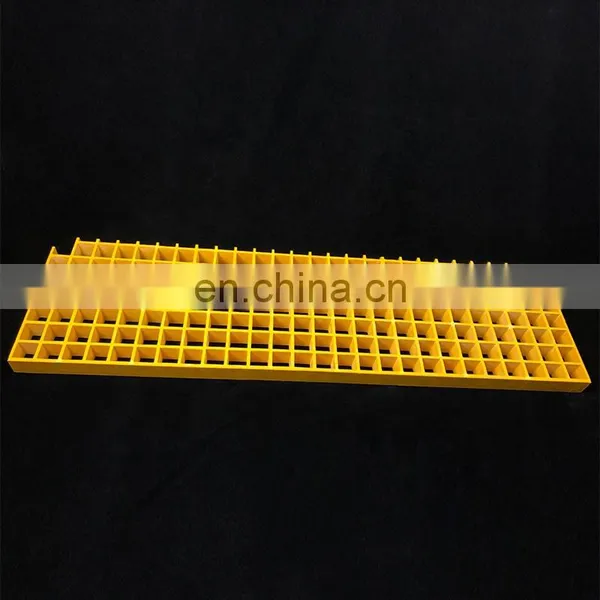

38*38mm non slip fire resistant Grp trench drain grating cover Platform
Firberglass Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
FRP grating are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard. Our gratings are manufactured in a wide range of sizes in order to guarantee an immediate solution to various design problems and are produced in monolithic panels that are easy and fast to install.
Frp grating producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.
Specification(mm) |
Panel size(mm) |
Weight(kg) |
Customize |
38*38*25 |
1220*3660 |
54 |
yes
|
38*38*30 |
1220*3660 |
70 |
|
38*38*38 |
1220*3660 1000*4007
|
88 81
|
|
50*50*50 |
1220*3660 |
98 |
|
19*19*38*38*30 |
1075*3626 |
72 |
|
38*38*65 |
1030*4040 |
141 |
|
40*40*40 |
1010*4040 |
81 |
|
19*19*38*38*38 |
1220*3660 |
92 |
|
25*25*50*50*30 |
1220*3660 |
62 |
Product Details Show

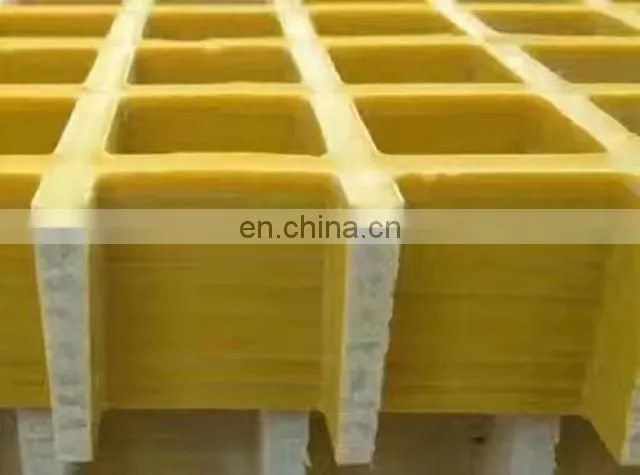

Smooth surface of frp grating
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Gritted surface of frp grating
Good mechanical property Inflaming Retarding Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
Concove surface of frp grating
Frp grating with concave surface can customized size
Yellow, green, black, grey, transparent, etc .Customized color are available.
Yellow, green, black, grey, transparent, etc .Customized color are available.
Our frp grating is high quality with accurate size
Product Displays
Our producing types of frp grating, from mesh size to panel size, and we can customized size of fiberglass grating according your requirement.
Features of frp grating:
1. Light weight: Its weight is one quarter of steel gratings; easy for carrying, which reduce the carrying cost.
2. Good mechanical property: Resin content is 35%; fiberglass content is 65%, which increase the rate between strength and weight.
3. Aging resistance: UV absorption agent and polyester surface veil mat are added in the formula, which can protect from
ultraviolet rays.
4. Effective: The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach above 26. (per the
requirement of project)
5. Others: Impact resistance, free from maintenance, easy for processing, slide resistance, electric and thermal insulation.
1. Light weight: Its weight is one quarter of steel gratings; easy for carrying, which reduce the carrying cost.
2. Good mechanical property: Resin content is 35%; fiberglass content is 65%, which increase the rate between strength and weight.
3. Aging resistance: UV absorption agent and polyester surface veil mat are added in the formula, which can protect from
ultraviolet rays.
4. Effective: The fire retardant effect is of 1 to 25, or oxygen index is above 26. Oxygen index can reach above 26. (per the
requirement of project)
5. Others: Impact resistance, free from maintenance, easy for processing, slide resistance, electric and thermal insulation.
Application
Fiber (frp) graiting is used as tree grating ,car wash drain grating and walkway grating and so on, have widely use value.
FRP molded grating used in chemical, petroleum, metallurgy, electric power, electroplating, batteries, machinery, pharmaceutical,printing and dyeing, mining, sewage treatment, home decoration, municipal engineering, car washes, etc;
Specific applicable: operating platform, trench cover, double ground, road, corridor, stair tread, condole top, found board, car washes the floor, etc
Specific applicable: operating platform, trench cover, double ground, road, corridor, stair tread, condole top, found board, car washes the floor, etc

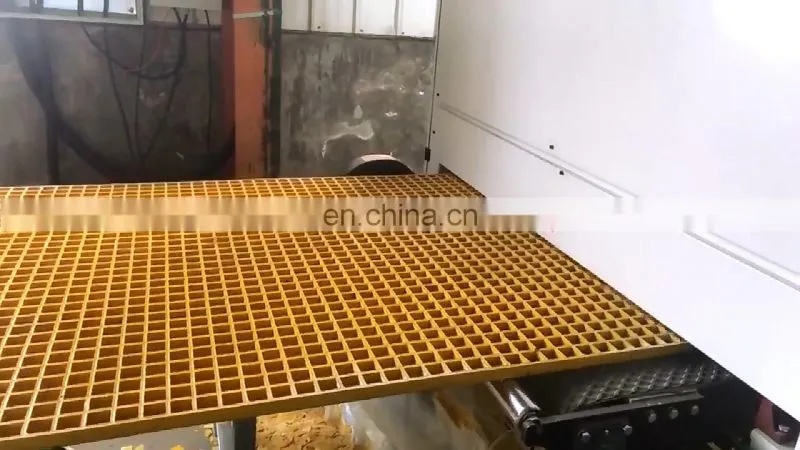

Process and Packing
