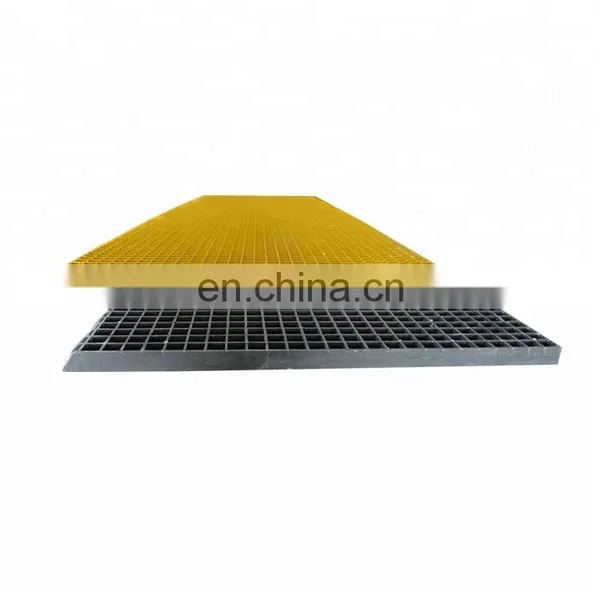

38*38*30 Heavy Duty Offshore Grating Floor GRP FRP Walkway Plastic Grating
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Reinforced Composite Plastic Grille Walkway Grating FRP Molded Grating FlooringNegotiableMOQ: 1 -
Fiberglass Grating Stair Step Ladder FRP Composite Plastic Grating PanelNegotiableMOQ: 1
-
FRP Access Systems Hot Sale Fiberglass Frp Grating for Plastic Floor GratingNegotiableMOQ: 1
-
China Manufacturers High-speed Rail Highway Insulation Trough Type FRP Cable TrayNegotiableMOQ: 1
-
Pedestrian Walkway Trench Cover Plate Tree Cover 25mm FRP GratingNegotiableMOQ: 1
Product Details
38*38*30 heavy duty offshore grating floor GRP FRP walkway plastic grating
Firberglass Molded grating is manufactured by laying continuous glass fibres in the mould in the direction of vertical and horizontal, and thurougly wetted out with resin, layer by layer.
Light weight Reinforced Plastic fiberglass mesh grid are designed with a high safety factor and are manufactured according to the DIN 24537-3 standard. Our gratings are manufactured in a wide range of sizes in order to guarantee an immediate solution to various design problems and are produced in monolithic panels that are easy and fast to install.
Light weight Reinforced Plastic fiberglass mesh grid producing process such as post applied grit could be bonded after as a secondary operation.This continuous process produces an integral, one piece panel,Frp grating offers excellent corrosion resistance as well as bi-directional strength.
Features of Reinforced Plastic fiberglass mesh grid
1. Light weight: Its weight is one quarter of steel gratings; easy for carrying, which reduce the carrying cost.
2. Good mechanical property: Resin content is 35%; fiberglass content is 65%, which increase the rate between strength and weight.
3. Aging resistance: UV absorption agent and polyester surface veil mat are added in the formula, which can protect from
ultraviolet rays.
2. Good mechanical property: Resin content is 35%; fiberglass content is 65%, which increase the rate between strength and weight.
3. Aging resistance: UV absorption agent and polyester surface veil mat are added in the formula, which can protect from
ultraviolet rays.
Specification(mm) |
Panel size(mm) |
Weight(kg) |
Customize |
38*38*25 |
1220*3660 |
54 |
yes
|
38*38*30 |
1220*3660 |
70 |
|
38*38*38 |
1220*3660 1000*4007
|
88 81
|
|
50*50*50 |
1220*3660 |
98 |
|
19*19*38*38*30 |
1075*3626 |
72 |
|
38*38*65 |
1030*4040 |
141 |
|
40*40*40 |
1010*4040 |
81 |
|
19*19*38*38*38 |
1220*3660 |
92 |
|
25*25*50*50*30 |
1220*3660 |
62 |
Product Details Show
Smooth surface of frp grating
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Frp grating with smooth surface is normal use in walkway.Grating contains strong stress resistance, Lightweight, high strength.
Gritted surface of frp grating
Good mechanical property Inflaming Retarding Resin content is 35%, fiberglass content is 65%, which increase the rate between strength and weight.
Concove surface of frp grating
Frp grating with concave surface can customized size
Yellow, green, black, grey, transparent, etc .Customized color are available.
Yellow, green, black, grey, transparent, etc .Customized color are available.
Product Displays
Our producing types of frp grating, from mesh size to panel size, and we can customized size of fiberglass grating according your requirement.
