12*12mm 19*19mm Micro-Mesh FRP Fiberglass Molding Grating Mini Mesh Gritted
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRP Moulded Fibreglass Reinforced Plastic Mesh GratingNegotiableMOQ: 1 -
Roof Walkway Mounting System for Solar Project 25mm Frp GratingNegotiableMOQ: 1
-
Fiberglass Reinforced Plastic Grating Frp/Grp Grid for Floating Pontoon/ Floor GratingNegotiableMOQ: 1
-
38 mm Blue Frp Grille Other Fiberglass Products Molded Composite Fiberglass Flooring GridNegotiableMOQ: 1
-
High Strength Yellow Plastic Grating 38*38*38mm FRP Floor for Car WashNegotiableMOQ: 1
Product Description

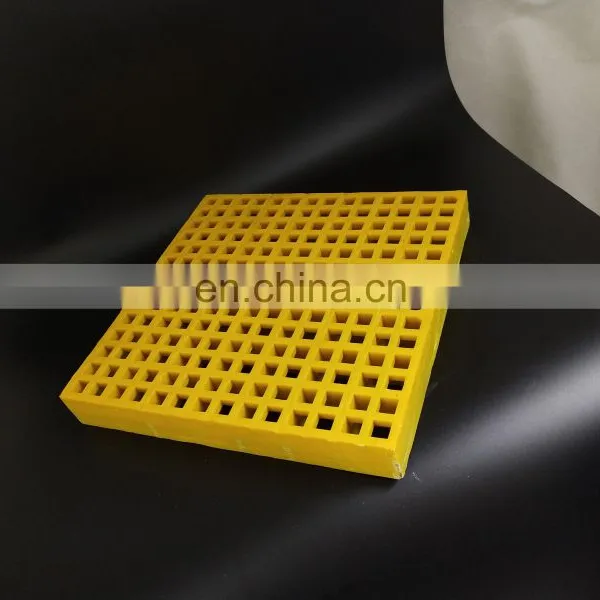

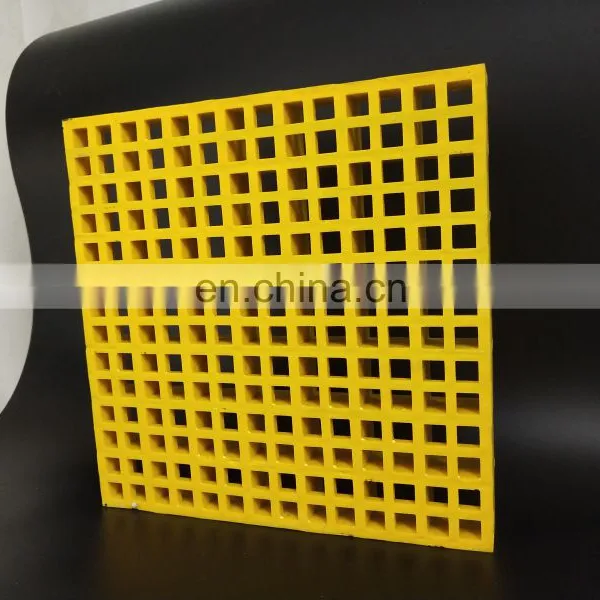

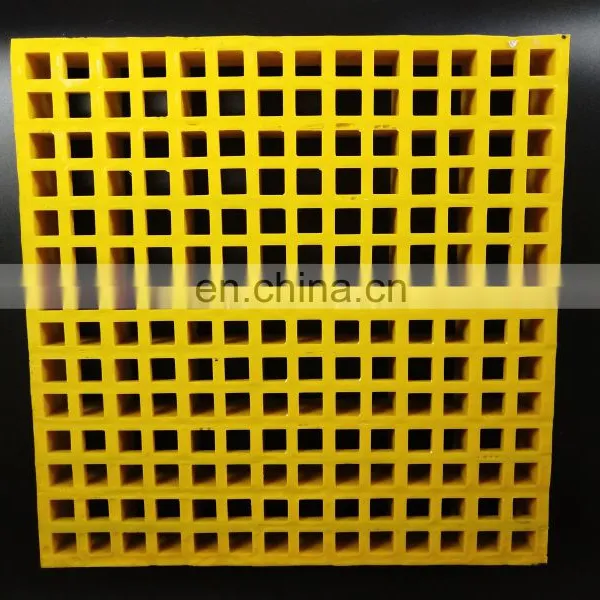

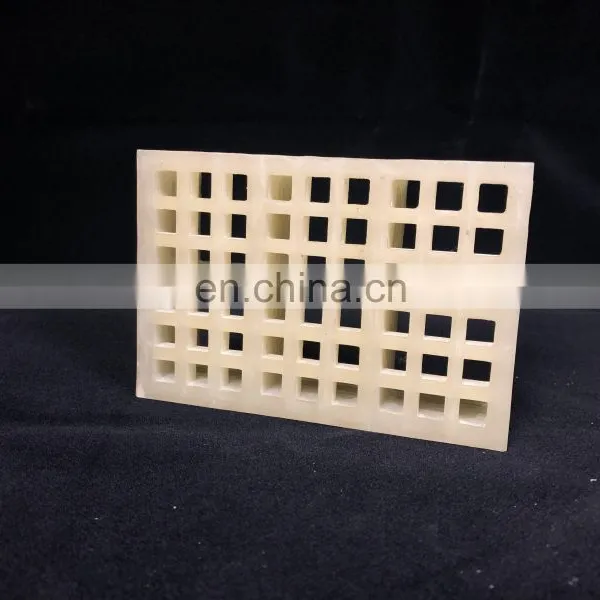

12*12mm 19*19mm Micro-Mesh FRP fiberglass molding grating mini mesh gritted
Micro-Mesh FRP grating is used in variety of applications including docks, piers, boat lifts and decks in 4’ x 12’ panel sizes
(3/4” square mesh opening on top surface). It is also used in and around pools, marinas, waterparks and other public recreationalareas. Micro-Mesh has maximum UV resistance, has a comfortable surface for bare feet and is durable, with a high strength to weight ratio. Depth options include 1/2”, 1” and 1-1/2”. Micro-Mesh panels are the right choice to minimize vibration from rolling cart or wheelchair traffic. The panels with a 1/2" open area between bearing bars are ADA compliant and meet the "15 mm ball test." Micro-Mesh FRP access flooring system is designed as a low cost alternative where subfloor access and unobstructed air flow is required. Lightweight 2'x 2' Micro-Mesh panels are easily removed, providing ready access to electrical conduits, air supply plenums, and service lines.
(3/4” square mesh opening on top surface). It is also used in and around pools, marinas, waterparks and other public recreationalareas. Micro-Mesh has maximum UV resistance, has a comfortable surface for bare feet and is durable, with a high strength to weight ratio. Depth options include 1/2”, 1” and 1-1/2”. Micro-Mesh panels are the right choice to minimize vibration from rolling cart or wheelchair traffic. The panels with a 1/2" open area between bearing bars are ADA compliant and meet the "15 mm ball test." Micro-Mesh FRP access flooring system is designed as a low cost alternative where subfloor access and unobstructed air flow is required. Lightweight 2'x 2' Micro-Mesh panels are easily removed, providing ready access to electrical conduits, air supply plenums, and service lines.
fiberglass molding grating is a glass fiber reinforced material, unsaturated polyester resin matrix, through a special processing composite with a lot of space, FRP grating can be used as structure Materials, corrosive environment for the floor, trench cover, platform, ship deck, stairs, plank road and so on.
Specifications(mm) |
a*b(mm) |
weight(kg) |
38*38*25 |
1220*3660 |
54 |
38*38*30 |
1220*3660 |
70 |
38*38*38 |
1220*3660
1000*4007
|
88
81
|
50*50*50 |
1220*3660 |
98 |
19*19*38*38*30 |
1075*3626 |
72 |
38*38*65 |
1030*4040 |
141 |
40*40*40 |
1010*4040 |
81 |
19*19*38*38*38 |
1220*3660 |
92 |
25*25*50*50*50 |
1220*3660 |
62 |
fiberglass molding grating is composed of alternating directional layers of continuous glass fiber for strength, with resin to consolidate the fibers and provide the shape and corrosion-resistance. Molded grating has very high impact tolerance, as well as the highest chemical resistance of any fiberglass grating. It can be made slip-resistant by adding grit to the surface.
Product Features
38*38/19*19mm fiberglass molding grating mini mesh grip /gritted mesh frp Features
Corrosion resistant
Has very excellent acid-proof, alkali resistance, resistance to organic solvents and salt, and many other gas and liquid medium corrosion performance, has the incomparable superiority in the field of anti-corrosion.According to the requirements of the actual use, it is economical to choose the base material for the use of phthalic, polystyrene, and vinyl resin.
Comparing with other floor materials, FRP moulded grating provides a series of benefits, unmatched impact resistance, while the strength-weight-ratio is only one-fourth of that of steel grating. It is easy to cut and install. FRP moulded grating is made of continuous fiberglass fully soaked in unsaturated polyester resin giving a uniform structure and perfect bi-directional mechanical properties.
1) Corrosion and chemical resistant
2) High strength-to-weight ratio
3) Fire retardant
4) Ergonomic
5) Slip-resistant
6) Anti-aging
7) Easy maintenance
product displays
Product production process
Product application
Construction |
Guardrails, stairs, ladders, wall gratings, platforms, etc. |
Drainage treatment |
Drainage ditch, drain grating, platform, structure, etc. |
Civil Engineering |
Floors, sidewalks, bridges, tree protection, car washes, parking lots, Protect grating, etc. |
Chemical Industry |
Work platform etc. |
Food processing and aquaculture |
The platform, engineering guardrail, etc. |
Ocean industry |
Platforms, fencing, sidewalks, etc. |
Process &Packing
Packing Details : Packing, pallet,wooden box,or as the order....
Delivery Details : 15-30 days after deposit for frp grating
Delivery Details : 15-30 days after deposit for frp grating
