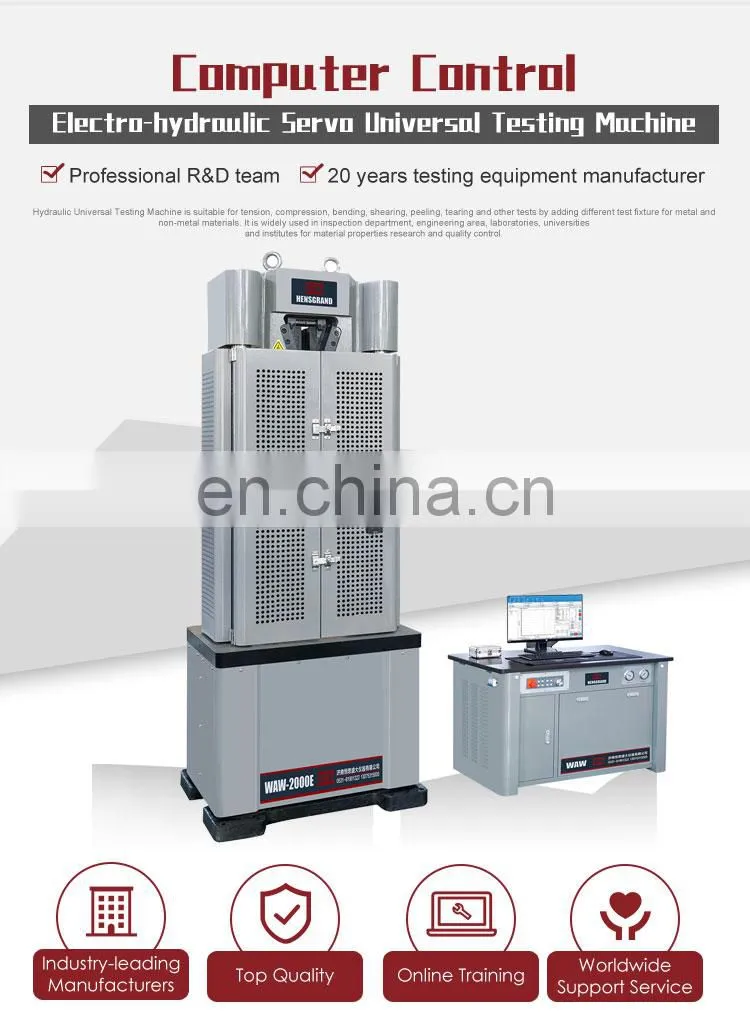

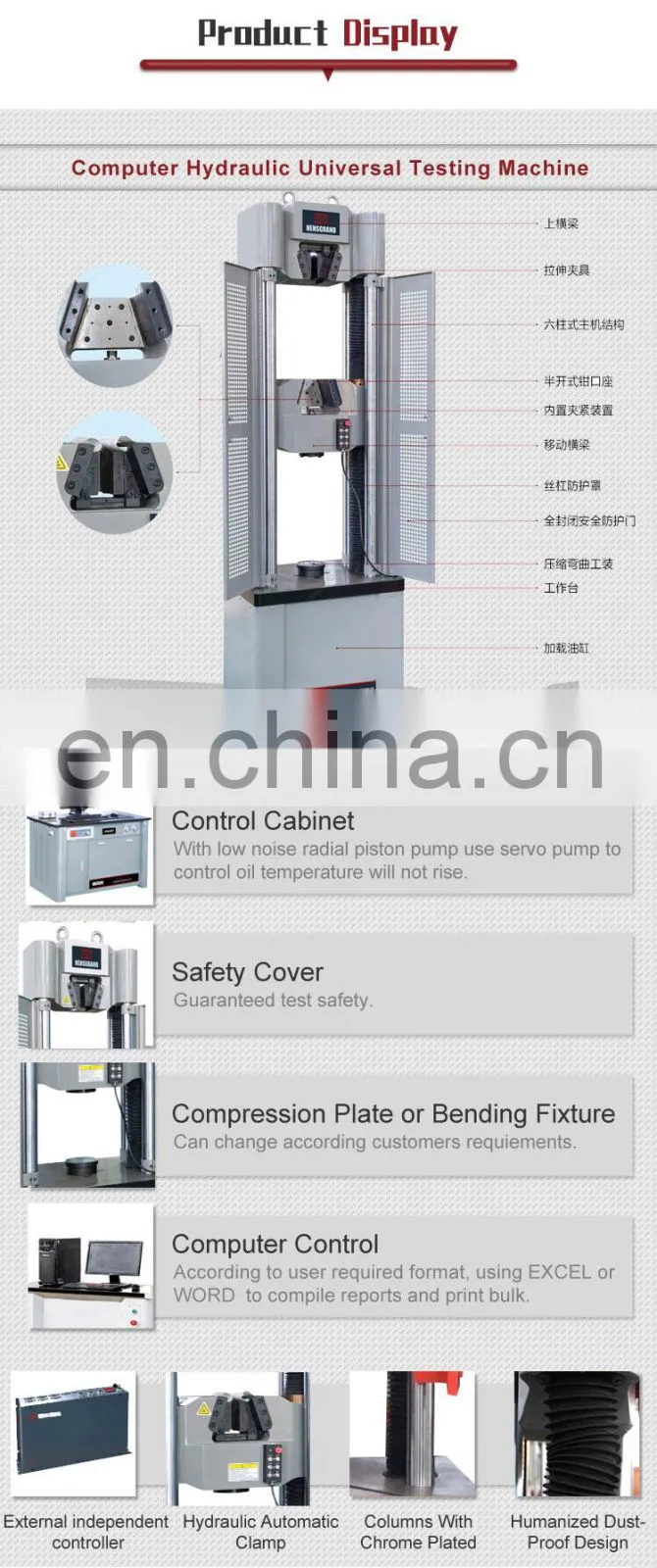

1000kn Tensile Compressive Bending Strength 100 Ton Universal Testing Machine Waw-1000d

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2009

Factory Size:

1,000-3,000 square meters

Hst Group Co.,ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

1000kn tensile compressive bending strength 100 ton universal testing machine waw-1000d

Specification Data

Good price for computer display hydraulic universal Testing machine specification :

Model	WAW-100D	WAW-300D	WAW-600D	WAW-1000D/E	WAW-1200D	WAW-2000D
Control Way	Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Number of Screw drivers	4
Load Accuracy	≤± 1%/ ≤± 0.5%
Load Range	2%~100%FS
Deformation Measurement Range	2%~100%FS
Deformation Accuracy	≤± 1%
Displacement Resolution	0.01mm
Testing speeds (mm/min)	0.1~118	0.1~123	0.1~123	0.1~70	0.1~70	0.1~70
Adjustable crosshead speed(mm/min)	450	450	350	350	320	320
Max. Piston Stroke(mm)	200	200	200	200/250	250	250
Max. Tension Test Space (mm)	780	780	900	950/980	930	1250
Max. Compression Test Space	550	550	650	700	640	850
Column Effective Spacing(mm)	485	485	500	560/580	610	800
Clamping Method	Hydraulic Automatic Clamp
Flat Specimen Clamping Width(mm)	80*80	80*80	90*90	100*100	120*110	150*120
