WAW-1000L 1000KN steel Pull Test machine
1. Application:
This High Frequency Material Tensile Testing Machine is applied in the steel industry, quality inspection stations and other high-frequency, high-fatigue fast metal tensile test.
Contact: Alice Skype: hssdtest What's APP / TEL: +86-15098778967 Ali: cn1001290168
2.Structure

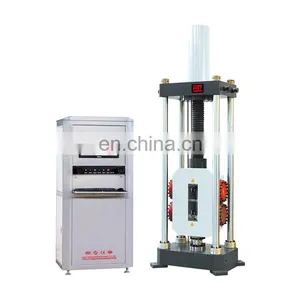

The machine consists of three parts: main unit, oil source, measurement and control system. Computer automatic control rising, falling, test, stop, etc..
3.Features:
3.1 Semi-open jaws seat, rigid, no deformation;
3.2 Double-clip grip,holding firm, non-skid;
3.3 Long cylinder stroke make construction more reasonable, durable;
3.5 Double pump structure independent oil source to improve the test speed.
4.Technical parameter:
Model |
WAW-300L |
WAW-600L |
WAW-1000L |
WAW-2000L |
Max Load |
300kN |
600kN |
1000kN |
2000kN |
structure |
Four columns single pull frame structure |
|||
Control way |
Constant stress, constant deformation, constant displacement three closed-loop control and programming control |
|||
Test class |
1 class |
|||
Test force range |
2%-100%FS |
|||
Test value relative error |
Better than ±0.5% |
|||
Test force resolution |
20000 yard |
|||
Deformation effective test range |
2%~100%FS |
|||
Deformation resolution |
20000 yard |
|||
Deformation value relative error |
Better than ±0.5% |
|||
Displacement resolution |
0.01mm |
|||
Displacement value relative error |
Better than ±1% |
|||
Piston unload maximum speed |
0.1-100mm/min stepless |
|||
Cylinder piston stroke |
500mm |
650mm |
||
Max tensile space |
600mm |
700mm |
||
Specimen clamp way |
Hydraulic double-clip |
|||
Tensile grip Round specimen clamp diameter |
Φ6-Φ40mm |
Φ13-Φ60mm |
Φ13-Φ60mm |
Φ26-Φ70mm |
Tensile grip flat specimen clamp diameter |
0-30mm |
0-40mm |
0-50mm |
0-60mm |
