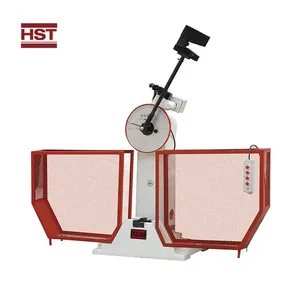

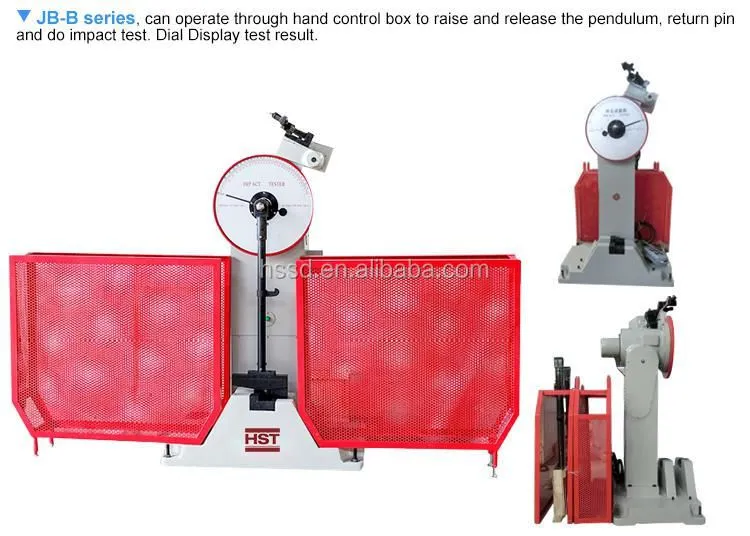

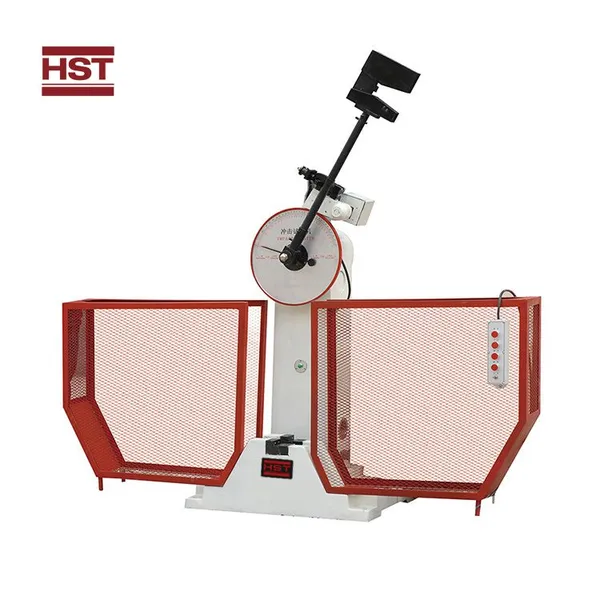

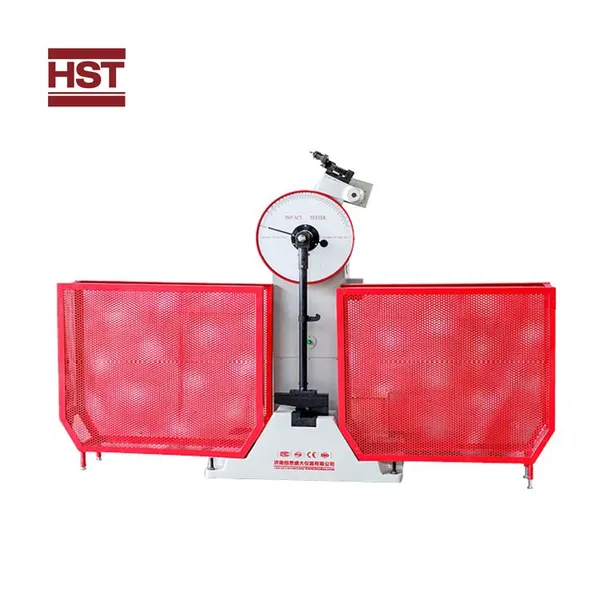

JB-300 Charpy Pendulum Impact Tester/ plastic drop ball impact test machine
Contact me:Sunny mobile:+86-15866777590 Skype:jessica-hssd
1.Application
JB-300 Charpy Pendulum Impact Tester is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
|
Model |
JB-300 |
|
Reading of dia |
0 - 150J (1J/grid); 0 - 300J(2J/grid) |
|
impact energy |
150,300J |
|
The distance between the pendulum shaft and impact point |
800mm |
|
Impact speed |
5.2m/s |
|
Pre-rising angle of the pendulum |
135° |
|
Specimen bearer span |
40+0.2mm |
|
Round angle of the jaw |
R1-1.5mm |
|
Round angle of impact edge |
R2-2.5mm |
|
Angle accuracy |
0.1° |
|
Power supply |
Manual |
|
Standard specimen dimension |
10mm×10mm×55mm |
|
Dimensions (mm) |
1000×630×1520mm |
|
Net Weight (kg) |
320Kg |
4. Configurations:
4.1 Main unit----------1 set
4.2 Pendulum-----2 pcs
4.3 Span specimen plate (L = 40mm)----1 pc
4.5 Specimen centering plate (L = 40mm)(U, V)----1 pc
4.6 Stripping attachment----1 pc
4.7 Internal hexagonal wrench (S=12mm)---1 pc
4.8 Anchor bolts (M16x300mm)---4 pcs
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,16 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 7-15days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.
We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
