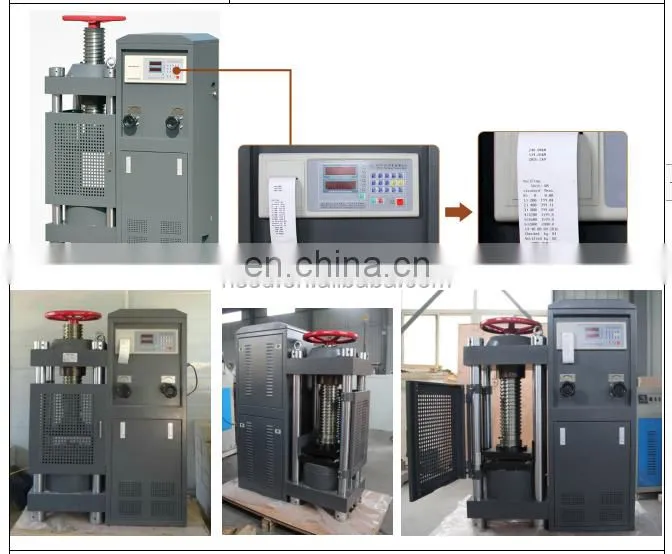

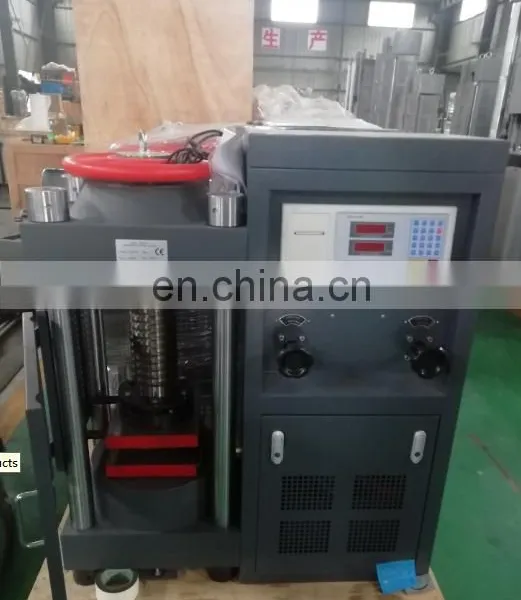

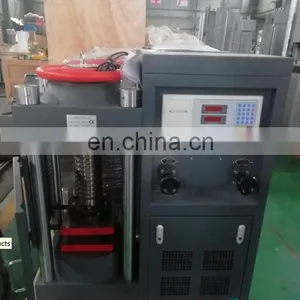

YES-3000 compressive strength machine 3000 kn
Contact: Alice Zhang Skype: hssdtest What's APP / TEL: +86-15098778967
1. Application
This compression testing machine mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building materials compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Feature:The test data is not only could displayed on LCD directly, but also could be displayed on computer screen.
2. Main Specifications
Model |
YES-1000 |
YES-2000 |
YES-3000 |
Max. load |
1000KN /100Ton |
2000kN/200Ton |
3000kN/300Ton |
Machine Class |
1 class |
||
Range of test force |
4% ~100%FS |
||
Testing space adjust method |
Manual adjust |
||
Indicating value accuracy |
±1% |
||
Piston stroke |
30mm |
50 |
|
Diameter of Piston |
250mm |
300 |
|
Distance between platens |
320mm |
400mm |
|
Upper platen size |
220*250mm (Can be customized) |
300x300mm |
|
Display |
LCD screen display |
||
Power supply |
0.75KW, AC380V/50Hz/3 phase(can be customized) |
||
Size |
880*480*1400 mm |
1000x500x1450mm |
|
Weight |
600kg |
1000Kg |
|
Power |
380V/220V / 0.75KW |
||
YES-2000 YAW-2000D YES-300 YAW-300D
