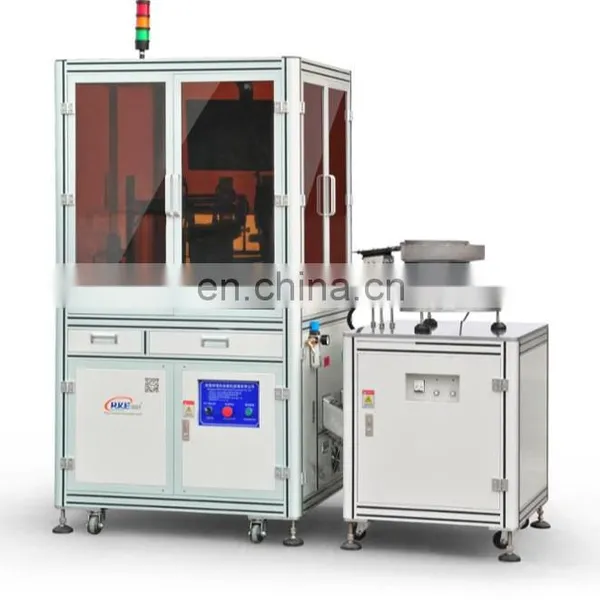

RK-1500 Glass Plate Optical Visual Screw Screening Equipment CCD Fastener Image Automated Sorting Machine for Micro Parts
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2005
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized RK1500 Screw Optical Sorting Machine Glass Plate CCD Visual Inspection Machine for Nuts Fasteners Rubber MeasuringNegotiableMOQ: 1 -
RK1500 Glass Plate Automatic Nut Optical Inspection Equipment Screw Optical Visual Sorting MachineNegotiableMOQ: 1
-
RK-1500 Glass Plate Nut Optical Vision Selection Machine AOI Visual Sorting Equipment for Fastener Screw WasherNegotiableMOQ: 1
-
RK-1360 360 Degree Rubber AOI Visual Sorter Automatic Optical Selective Machine for Plastics TestingNegotiableMOQ: 1
-
China RK-1360 Fastener AOI Image Sorting Machine Optical Visual Selection Machinery for Nut Hardware With 360-degree ViewingNegotiableMOQ: 1
Glass Plate Visual Fastener Screening Equipment
Types: RK-1500 Glass Plate Optical Sorting Machine
Suited for: Nuts, Rivets, Washers, Bushing, Elastic Rings, Sleeves, Inserts, Valve Retainer, Chain Plate, Shearing Parts
Inspection Screen
The machine equipment is outfitted with four industrial cameras.
Camera 1 is a Level camera used for inspecting the multi-segment height and outer diameter of the product.
Camera 2 is a vertical bottom view camera, to inspect the aperture and the burr of the product.
Camera 3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used to detect chamfering.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Camera 1 is a Level camera used for inspecting the multi-segment height and outer diameter of the product.
Camera 2 is a vertical bottom view camera, to inspect the aperture and the burr of the product.
Camera 3 is a vertical top view camera used for inspecting the opposite diagonal and angle of the product. It is also used to detect chamfering.
Camera 4 is a 45° tilt camera used to determine if the product has internal threads.
Technical Parameter:
Note: Customized service can be provided according to the detect demand.
Machine Features:
1. Highly-transparent glass plate.
2. Fit for grease-free parts which can be securely placed on the glass plate.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
3. Wide detection range of fasteners, mobile phone parts, rubber products, electronic components, special-shaped hardware, screw etc.
4. Detection camera: can add 2-6 sets of cameras according to the inspect items.
5. Detection speed: 300~1000 PCS /Min Depend on individual case.
6. Automatic counting packaging machine and automatic feeding system can be added according to customer demand.
Inspection Items:
Diameter, Hole diameter |
Roundness |
Length |
With coating |
Width |
With mark |
Height, Thickness |
With cut/tapering |
Surface defect |
Parallel edge length |
Deformed, Broken |
Broken pin, Recess depth |
Different shape |
With thread |
Crack |
Fine or coarse thread |
Burrs, Chips |
Tooth numbers |
Across Corners |
Pitch |
Across Flat |
Slanted thread |
Chamfer angle |
Minor diameter |
Included angle |
Major diameter |
Arc radius |
Hardness |
Concentricity |
Recognition of different materials |
With or without heat treatment |
Delivery and Package:
Shipping
1. Upon receipt of payment, delivery date will be in 25-30 working days,
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
2. By Air, by Sea or by Express (DHL etc.)
Packed in plywood cases (No Fumigation required) or packed according to customer's requirement.
Service Advantage:
1. Warranty: 12 months FREE overseas service.
2. Enjoy lifelong maintenance.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
3. Professional service team, provide 24 hours, 365 days of technical support.
4. Remote online service and technicians' door-to-door service also offered.
5. Convenient service, response for your machine breakdown in the shortest time and get rid of your worry.
Welcome to ask for details.
Provide related samples and test items, evaluation and project plan will sent back to you after technicians practical test. Then discuss the equipment specification and procurement plan.
We promise that the most suitable machine with cost the least money.
We promise that the most suitable machine with cost the least money.
