HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine

HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine thumbnail-1
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine thumbnail-2
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine thumbnail-3
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine thumbnail-4
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine thumbnail-5
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine photo-1
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine photo-2
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine photo-3
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine photo-4
HP15-5 Stamping Robot China 5 Axis Large Load Industrial Robot Arm for Metal Cutting Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2001
Annual Export Value:
Above US$100 Million
Contact Supplier Request Quote Chat Now
Ae Robotics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

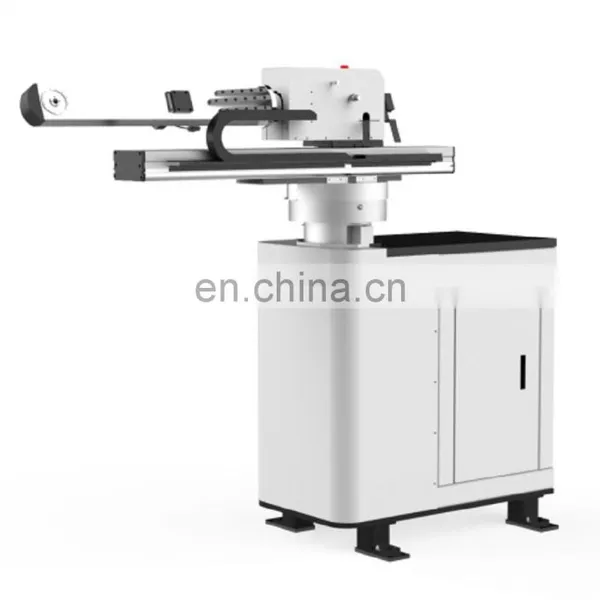

HP15-5 stamping robot 5 axis
Maxium payload 15 kg and reach 1850 mm.

1.To develop and optimize the operating procedure and algorithm of the manipulator in stamping process so as to ensure high efficiency and safety. 2.To utilize the platform of joint robot control system to equip the stamping manipulator with relevant functions. 3.To use the control system to do remote upgrade through Ethernet or USB files, making it convenient for the client’s customized requirements. 4.Powerful file and license management capability to secure your production. 5.With functionality exceeding those general-purpose PLCs in the market.
Specification
Type
HP15-5
Axis
5
Body color
White
Maximum load capacity
15kg
Repeat accuracy
0.05 mm
Maximum working rodius
1850mm
Lowest reclaiming position
1420 mm
Maximum power of entire machine
3900 W
Weight of entire machine
450kg
Axis
Motion Stroke
Maximum Motion Speed
Z(lifting)axie
350mm
1.25 M/S
R(swinging)axie
±135°
150° /s
A(to-and-fro)axie
800mm
1 M/S
B(rotating)axie
±180°
360°/s
C(overturning)axie
-100°~+190°
225°/s
Packing & Delivery
Packing material: shockproof cotton, insulation paper pad, carton, wooden case
Company Profile
AE Robotics Co,. Ltd
AE Robotics Co., Ltd was established in January 2015. We specialize in discrete industrial automation and industrial process automation, and can design, develop, test installation, commission industrial robots and their cells and related accessories, including accessories, equipment transfer, positioning equipment. and control systems. We can provide collaborative robots, industrial robots, robot parts, CNC controllers, robot integration, etc. We expect our professional technical services to provide our clients with the best return on investment.
