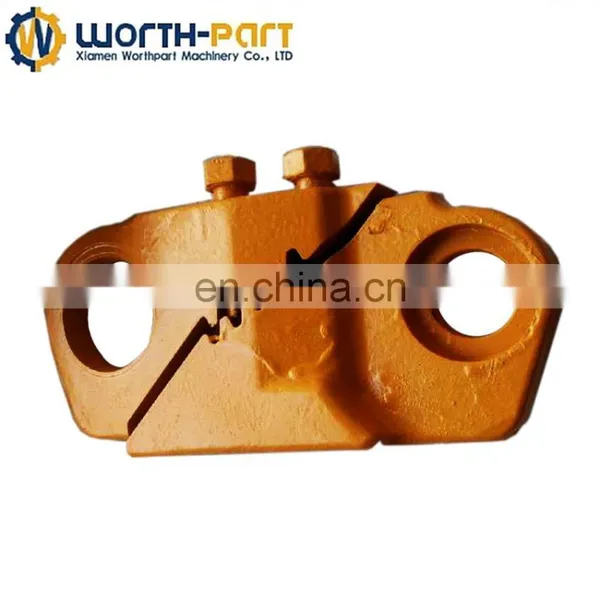

320 Excavator Track Link Track Chain 1941609 45 Link
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JS220LC Excavator Parts JRA0214 Idler For ExcavatorNegotiableMOQ: 1 -
Excavator Parts PC200-8 20Y-30-07300 Track RollerNegotiableMOQ: 1
-
Undercarriage Parts Kato Excavator Bottom Roller HD400 HD450 Track RollerNegotiableMOQ: 1
-
Bulldozer Track Roller D9H D9L D9R D9N Bottom RollerNegotiableMOQ: 1
-
High Quality Manufacturer DX225LCA/DX300LCA/DX340LCA Track Roller , Bottom Roller, Lower Roller for SaleNegotiableMOQ: 1
Kindly Click Here To Send Us Inquiry to Get More Discount
Product Description
Model Name |
320 excavator track link track chain 1941609 45 link |
| Material | 35MnB |
Color |
Black or Yellow |
Surface Hardness |
HRC52-58 |
Machine type |
Bulldozer ,Excavator ,Crane |
Warranty |
2000 hour |
Technique |
Froging/Casting |
Certification |
ISO9001-2008 |
Hardness Depth |
5-10mm |
Usage |
PC200 track link |
Product Overviews
Hot Sale
|
|
|
|
|
|
- 1. track link, track chain, track link assy, track group, track link with shoes.
- 2. track roller, bottom roller, lower roller.
- 3. carrier roller, top roller, upper roller.
- 4. sprocket, driving wheel,
- 5. idler, front idler, rear idler,
- 6. track adjuster, track tension spring, track cylinder, track cylinder assembly.
High surface hardness and deep hardened depth offer greater wear resistance and longer wear life.
Nice welcome to Click here to send us inquiry to know more
Company Information
Worthpart is a manufacturing for excavator undercarriage parts, hydraulic cylinder and Ground Engaging Tools in China, with more than 12 years full experience and a professional sales team.
Our MAIN PRODUCTS:
Track roller, carrier roller, sprocket, idler, track chain, track bush and pin, track shoe.
Bucket bushing and pin, track cylinder, track adjuster, excavator recoil spring, bucket link, link rod, track guard etc.
Part Number
| Model | Link number | Link pitch |
Link part number |
Bolt hole dia | Bolt No | Nut No |
| E70 | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E70B | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E110 | 39 | 171.5 | CR4854/39 | 16mm | 7H3597 | 1M1408 |
| E110B | 41 | 171.5 | 995398 | 16mm | 7H3597 | 1M1408 |
| E120(1LF) | 43 | 171.5 | 4I7480 | 16mm | 7H3597 | 1M1408 |
| E120B | 43 | 171.5 | 4I7480 | 16mm | 7H3597 | 1M1408 |
| E140 | 44 | 171.5 | 932015 | 16mm | 7H3597 | 1M1408 |
| E180 | 48 | 175.5 | 931927 | 18mm | 135-32-11211 | 79039445 |
| E200B | 45 | 190.5 | 964301 | 20mm | 79035814 | 970120 |
| E240,E240 | 46 | 190.5 | 878805 | 20mm | 79035814 | 964299 |
| E300 | 49 | 190.5 | 931963 | 20mm | 79035814 | 964299 |
| E300B | 46 | 203.2 | 995998 | 20mm | 14X-32-11210 | 964299 |
| E450 | 50 | 215.9 | 7I9091 | 22mm | 7H3599 | 7T9825 |
| E650 | 50 | 228.6 | 960260 | 24mm | 930271 | 930323 |
| E205 | 47 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E205 | 47 | 171.5 | 8U3456 | 16mm | 7H3597 | 1M1408 |
| E205 | 45 | 171.5 | 8E1442 | 16mm | 7H3597 | 1M1408 |
| E211 | 51 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E211 | 51 | 171.5 | 5W9836 | 16mm | 7H3597 | 1M1408 |
| E211 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E213 | 42 | 171.5 | 5W4165 | 14mm | 7H3596 | 7K2017 |
| E213 | 51 | 171.5 | 5W4166 | 14mm | 7H3596 | 7K2017 |
| E213 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E215 | 44 | 171.5 | 6A4713 | 14mm | 7H3596 | 7K2017 |
| E215 | 51 | 171.5 | 5C4089 | 14mm | 7H3596 | 7K2017 |
| E215 | 44 | 171.5 | 3T3695 | 16mm | 7H3597 | 1M1408 |
| E215 | 51 | 171.5 | 5C0949 | 16mm | 7H3597 | 1M1408 |
| E215 | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E215C/D | 51 | 171.5 | 6T0511 | 16mm | 7H3597 | 1M1408 |
| E225 | 47 | 171.5 | 8K0323 | 16mm | 7H3597 | 1M1408 |
| E225 | 54 | 171.5 | 8K4699 | 16mm | 7H3597 | 1M1408 |
| E225 | 46 | 175.5 | 3V9026 | 16mm | 7H3597 | 1M1408 |
| E225,E219,E215 | 53 | 175.5 | 3V9025 | 16mm | 7H3597 | 1M1408 |
| E225,E219,E215 | 43 | 190.5 | 6Y8183 | 19mm | 1S1859 | 1S1860 |
| E225,E219,E215 | 49 | 190.5 | 6Y8184 | 19mm | 1S1859 | 1S1860 |
| E235 | 47 | 203.2 | 8E4713 | 19mm | 1S1859 | 1S1860 |
| E235 | 54 | 203.2 | 8E4714 | 19mm | 1S1859 | 1S1860 |
| E235 | 49 | 215.9 | 8E8643 | 22.2mm | 7H3599 | 7T9825 |
| E235 | 53 | 215.9 | 8E8644 | 22.2mm | 7H3599 | 7T9825 |
| E245 | 51 | 228.6 | 8K4753 | 25.4mm | 3T6308 | 2V0250 |
| E245 | 45 | 260.4 | 8E7857 | 25.4mm | 2M5657 | 1S6421 |
| E307 | 42 | 135 | 1028077 | 13mm | 930261 | 6S3419 |
| E307B | 38 | 154 | 1452949 | 16mm | 7H3597 | 1M1408 |
| E311B | 41 | 171.5 | 4I7479 | 16mm | 7H3597 | 1M1408 |
| E312B | 43 | 171.5 | 1469175 | 16mm | 7H3597 | 1M1408 |
| E314C | 46 | 171.5 | 1764871 | 16mm | 7H3597 | 1M1408 |
| E315,E315B | 41 | 190.5 | 1028124 | 20mm | 9W3619 | 9W3361 |
| E315L | 44 | 190.5 | 1028129 | 20mm | 9W3619 | 9W3361 |
| E317,E317N | 44 | 190.5 | 1028129 | 20mm | 9W3619 | 9W3361 |
| E317BL,E317BLN | 45 | 190.5 | 1646893 | 20mm | 9W3619 | 9W3361 |
| E318B,E318BL,E318BN | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320BL | 49 | 190.5 | 9W9353 | 20mm | 9W3619 | 9W3361 |
| E320B,E320BN | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320C | 45 | 190.5 | 9W9354 | 20mm | 9W3619 | 9W3361 |
| E320L | 49 | 190.5 | 9W9353 | 20mm | 9W3619 | 9W3361 |
| E320S | 45 | 203.2 | 6Y0854 | 20mm | 6Y0846 | 9W3361 |
| E322,E322N | 47 | 190.5 | 1171373 | 20mm | 9W3619 | 9W3361 |
| E322B | 47 | 190.5 | 1171373 | 20mm | 9W3619 | 9W3361 |
| E322L,E322LN | 51 | 190.5 | 1171374 | 20mm | 9W3619 | 9W3361 |
| E325 | 45 | 203.2 | 6Y0854 | 20mm | 6Y0846 | 9W3361 |
| E325B | 45 | 203.2 | 1151848 | 20mm | 6Y0846 | 9W3361 |
| E325BL,E325BLN | 48 | 203.2 | 1151849 | 20mm | 6Y0846 | 9W3361 |
| E325N,E325L,E325LN | 48 | 203.2 | 6Y0853 | 20mm | 6Y0846 | 9W3361 |
| E330 | 45 | 215.9 | 6Y2755 | 22mm | 6Y9024 | 9W4381 |
| E330B | 45 | 215.9 | 1187300 | 22mm | 6Y9024 | 9W4381 |
| E330BL,E330BLN | 49 | 215.9 | 1187301 | 22mm | 6Y9024 | 9W4381 |
| E345B | 49 | 215.9 | 1504780 | 24mm | 208-32-51210 | 208-32-5122A |
| E345BL | 52 | 215.9 | 1504745 | 24mm | 208-32-51210 | 208-32-5122A |
| E350 | 47 | 228.6 | 8E6089 | 22mm | 1434891 | 9W4381 |
| E350L | 51 | 228.6 | 8E6090 | 22mm | 1434891 | 9W4381 |
| E365BL | 47 | 260.4 | 1421806 | 27mm | 195-32-11210 | 195-32-11221 |
| E375 | 47 | 260.4 | 6Y7453 | 27mm | 195-32-11210 | 195-32-11221 |
| E385B | 47 | 260.4 | 1740215 | 30mm | 1740221 | 1740222 |

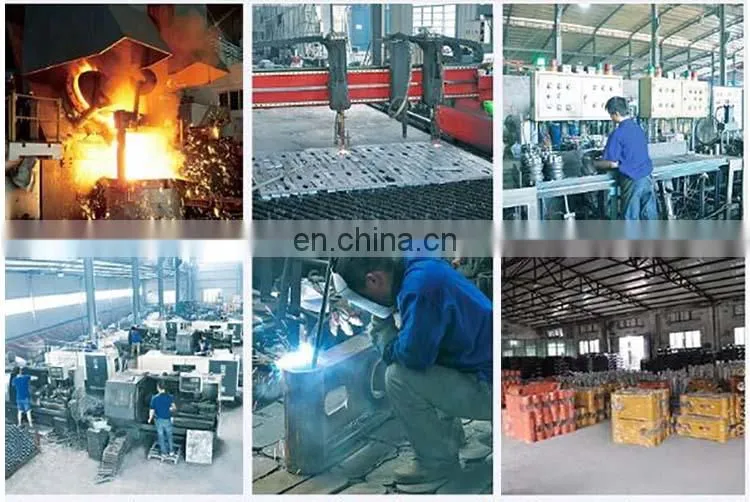

Factory & Equipment
