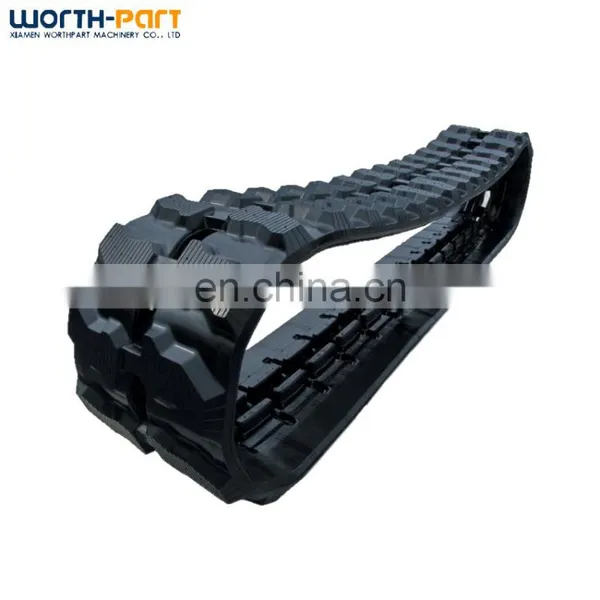

Help CenterKX41 Mini Excavator Undercarriage Parts KUBOTA Rubber Track
Related Products
-
BV206 Rubber Track 620x90.6x64NegotiableMOQ: 1 -
Dozer D68 Track Link, Track Chain, Dozer Track Link Track Chain D68NegotiableMOQ: 1
-
Dozer D5 Track Link, Track Chain, Master Link Track LinkNegotiableMOQ: 1
-
PC120-3 Excavator Track Link, Track Chain Assy 202-32-00011NegotiableMOQ: 1
-
Dozer Track Chain Wholesale D31 Track Link Assy, Track Chain, Master Link Track Link AssemblyNegotiableMOQ: 1
1. Type of rubber tracks:
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: guarantee one year under normal use
4). Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine
2. The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine’s lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
How to Measure Rubber Tracks?
To check for the size of your existing rubber track you will need to measure followings.
- Measure the width of the track in millimeters or we can do the conversions for you. (1 inch = 25.4 millimeters)
- Measure the distance from the top of the center of one link (metal piece that engages with the sprocket on the track) to the top of the center of the next link (in millimeters or we can do the conversions for you). This distance is known as the pitch of the track.
- Count the total number of links (also called metal pieces or lugs) inside of the track.
- The measurement of a track is Width x Pitch x Links.
Rubber Track Tread Patterns and OEM Track Sizes
A wide range of track designs and track patterns are available for specific machine applications and working conditions. Ask one of our professional sales associates which patterns are available for your machine.
Production Line
Application scenarios
If you have a mass of count products with new type, we also can develop the new one for you if you are interested in our company.
If you don’t find the type you want at follows, please give us the particular information of the type you want, and we’ll do our best to help you.
