Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Auto Bearing > Good Quality Cylinder 256907 VBF 2108-3103020 Size 34*64*37 Auto Front Wheel Hub Bearings For Car

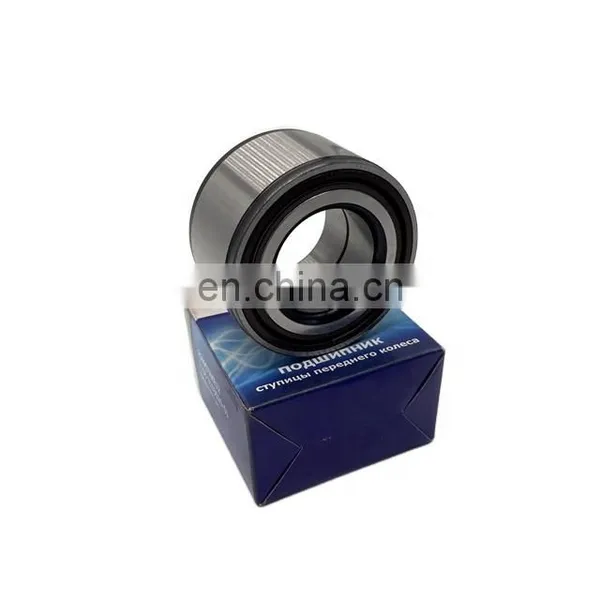

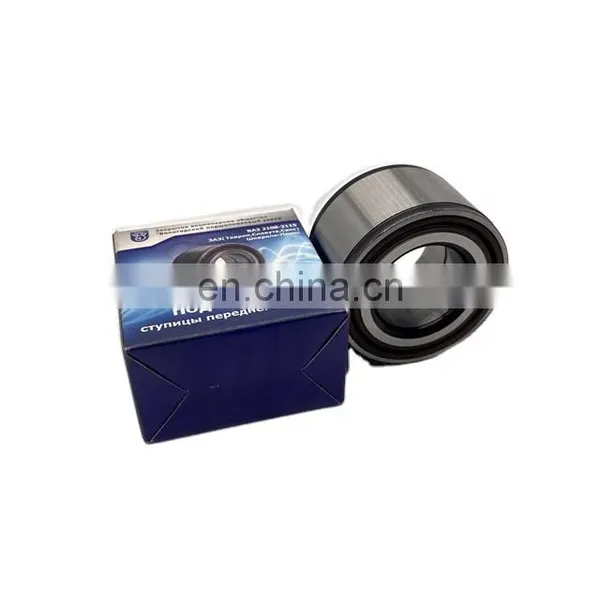

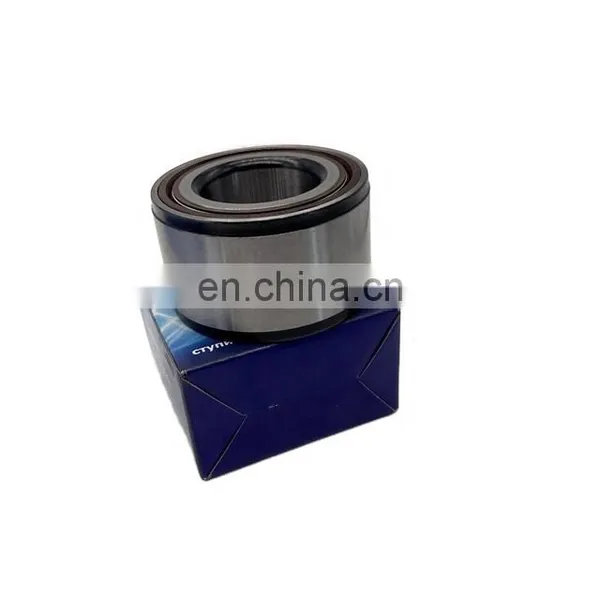

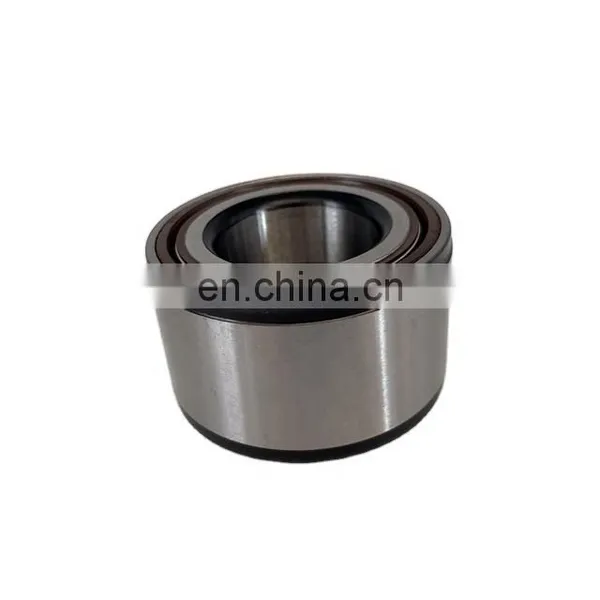

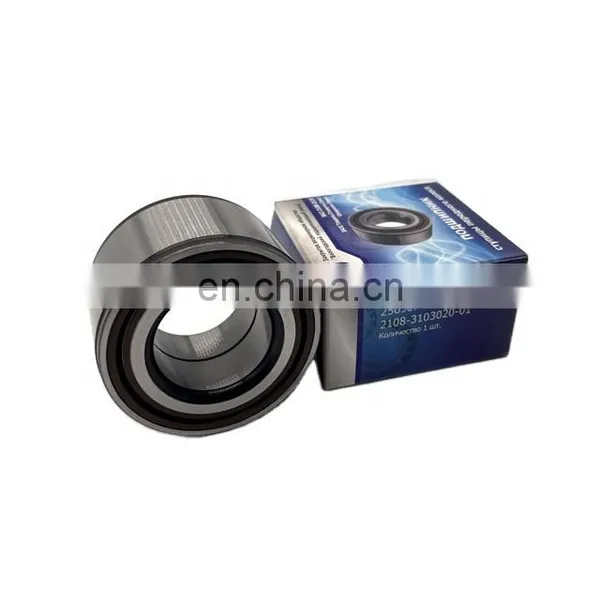

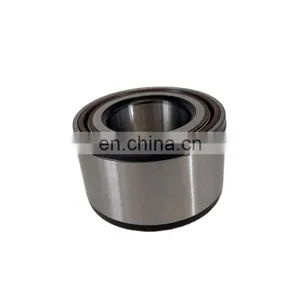

Good Quality Cylinder 256907 VBF 2108-3103020 Size 34*64*37 Auto Front Wheel Hub Bearings For Car
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional 37*72*37 ABS 37*72*37 ABS Xgb41140r00 Auto Spare Wheel Hub Auto Bearing for CLIO IIINegotiableMOQ: 1 -
China Ij131024 335069 42*82*36 Size Manufacturers Wheel Hub Auto Bearing For C3 02- CarNegotiableMOQ: 1
-
Quality Assurance 37*72*37 Abs Ij131014 Bah-0191 A Assembly Front Auto Clutch Wheel Hub BearingNegotiableMOQ: 1
-
Good Price 37*72*37 Size Abs Ij131014 Stable Front Hub Wheel Bearing For Megane IiNegotiableMOQ: 1
-
Wholesale High Quality 713630840 Ij131014 37*72*37 Abs Hub Truck Auto Wheel Bearing For MicraNegotiableMOQ: 1
Specification
Product name |
Good Quality Cylinder 256907 VBF 2108-3103020 size 34*64*37 Auto Front Wheel Hub Bearings For Car |
Usage |
wheel hub bearings |
Rotational Speed ingrease |
6000 |
Car Make |
LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA |
OE NO. |
2108-3103020 |
Place of Origin |
China |
Brand Name |
VLBG VBF |
Model Number |
256907 2108 -3103020 |
Warranty |
24Months |
Inner diameter |
34MM |
Outside diameter |
64MM |
Height |
37MM |
Outer cage width |
37mm |
Certificate |
ISO9001/TS16949 |
Number of balls pcs |
28 |
Weight |
0.445kg |
Ball diameter |
9.52 |
Steel grade |
shkh-15 |
Dynamic Load Capacity.H |
31500 |
Static Lifting capacity.H |
27900 |
256907 2108 -3103020 |
Double-row angular contact ball bearing GOST 6-256907 |
Double-row angular contact ball bearing GOST 6-256907
Double-row angular contact ball bearing GOST 6-256907 was specially developed for operation in passenger car hub assemblies.
It has a higher load capacity than single row deep groove ball bearings, but has comparable speed characteristics. Among other things, being a radial-thrust one, it can work under conditions of high axial loads.
Bearing dimensions and characteristics
The main components of the ball bearing article 256907 are cages with grooves for balls and a rolling element assembly. The shape of the grooves provides support for the rolling elements, both radially and axially. The assembly itself is protected by contact type seals.
This bearing is a part of domestic production. The decoding of its designation can be performed according to the scheme adopted for Russian products of this type.
For example 6-256907 E2C17:
6 - normal accuracy;
25 - design features (seals);
6 - angular contact ball bearing;
9 - ultralight series;
07 - code of the inner diameter (d / 5);
E2 - PCB separator;
C17 - type of grease (Litol-24).
The dimensions of bearing 256907 are 34x64x37 mm. Weight does not exceed 0.445 kg. At factories, this part is packed in cardboard boxes, and instructions for the installation and operation of the product are placed inside.
The dynamic load rating of the ball bearing is 31.5 kN. Static - 27.9 kN. Working frequency of rotation - 6000 rpm.
Diameter and number of balls
Diameter and number of balls
The number of rolling elements in the bearing 256907 - 28 pcs. These are balls of a regular spherical shape with a diameter of 9.525 mm. They are made of special grades of steel (as a rule, ShKh-15) and heat-treated.
The separator can be steel, made by stamping from an alloy with a high carbon content (without additional designation), cast polyamide (E5), made of textolite (E1C17).
Analogs and modifications
Another analogue can be considered a double-row roller bearing with the same dimensional characteristics 537907. Due to the peculiarities of its design, it has a significantly higher load capacity, but a lower operating frequency.
Among the modifications of the ball bearing 256907 are products with different types of cages and different materials used for the manufacture of plugs.
Applicability
Bearings 256907 are used in the front wheel hubs of passenger cars VAZ 2101-2109 (2112, 2121). Installed in wheels M-2141 produced by AZLK and ZAZ-1102 (1102).
If necessary, they can also be installed in the hub units of modern VAZ models instead of a roller bearing.
