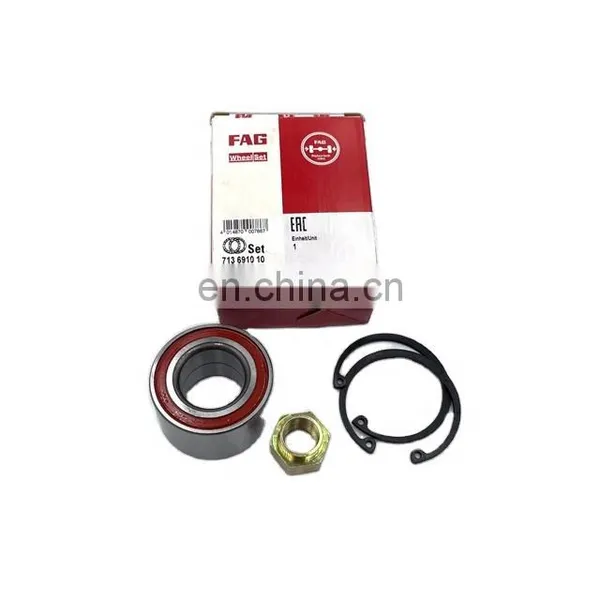

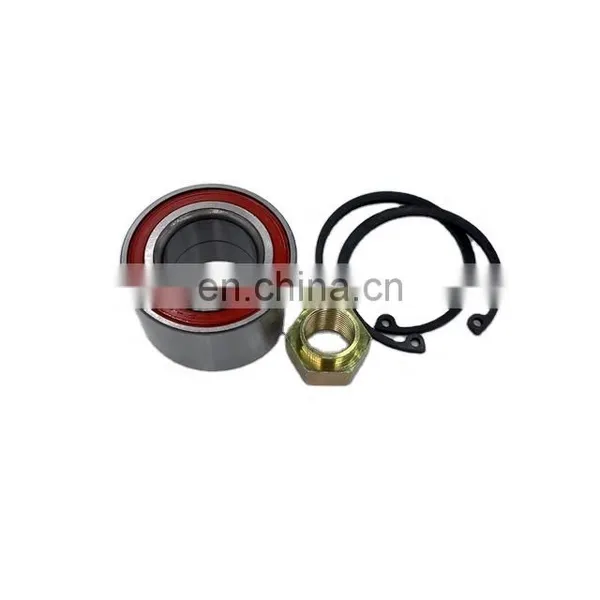

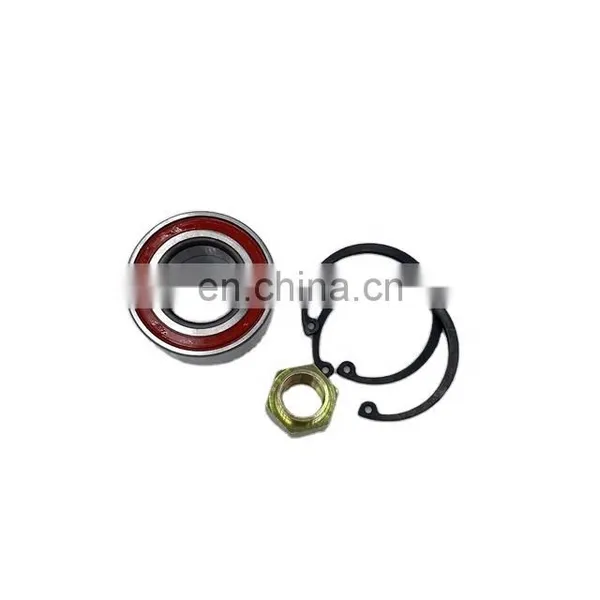

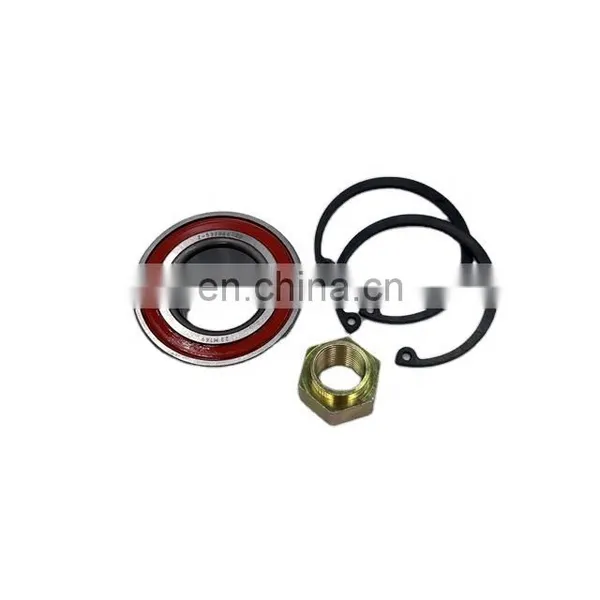

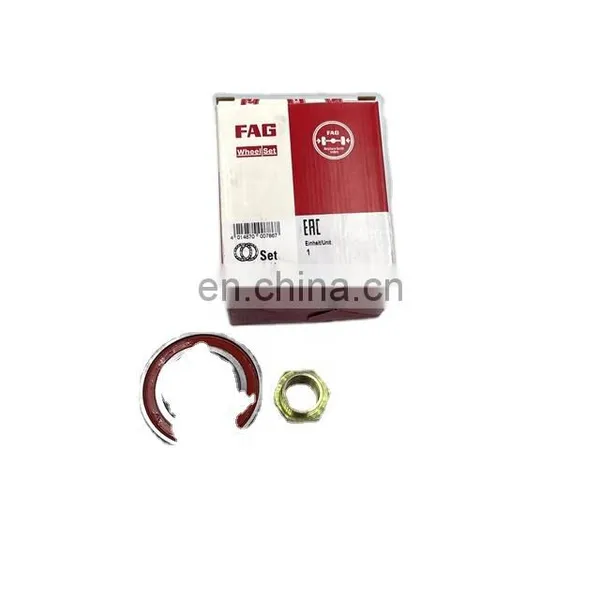

Good Quality Cylinder 713691010 2108-3103020 Size 34*64*37 Auto Front Wheel Hub Bearings For Car
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Attractive Price New Type IJ221001 GH0018R0 29*53*37mm GCR15 Assembly Rear Hub Wheel BearingNegotiableMOQ: 1 -
Special Design Widely Used Ij141003 Numbers Bt4z1215a Front Wheel Hub Bearing For Es350 07-09 CarNegotiableMOQ: 1
-
Low Price IJ141003 45*84*45 mm GP9A33047D Professional Reliable Auto Parts Wheel Hub Bearing for RX330 04-06 CarNegotiableMOQ: 1
-
Factory Provide Angular Contact Ball Bearing 713644190 GH039065 Front Wheel Bearing Size 39*74*39 for CarsNegotiableMOQ: 1
-
Useful 713630840 37*72*37 Abs Vkba3991 Spare Auto Parts Products Wheel Bearing Repair Kit for LOGAN (LS_) 1.4NegotiableMOQ: 1
Specification
Product name |
Good Quality Cylinder 713691010 2108-3103020 size 34*64*37 Auto Front Wheel Hub Bearings For Car |
Usage |
wheel hub bearings |
Rotational Speed ingrease |
6000 |
Car Make |
LADA CARLOTA, LADA CEVARO, LADA DIVA, LADA SABLE, LADA SAGONA, LADA SAMARA, LADA SAMARA FORMA |
OE NO. |
2108-3103020 |
Place of Origin |
China |
Brand Name |
VLBG VBF |
Model Number |
713691010 2108 -3103020 |
Warranty |
12Months |
Inner diameter |
34MM |
Outside diameter |
64MM |
Height |
37MM |
Outer cage width |
37mm |
Certificate |
ISO9001/TS16949 |
Number of balls pcs |
28 |
Weight |
0.445kg |
Ball diameter |
9.52 |
Steel grade |
shkh-15 |
Dynamic Load Capacity.H |
31500 |
Static Lifting capacity.H |
27900 |
713691010 2108 -3103020 |
Double-row angular contact ball bearing GOST 6-256907 |
Double-row angular contact ball bearing GOST 713691010
Double-row angular contact ball bearing GOST 713691010 was specially developed for operation in passenger car hub assemblies.
It has a higher load capacity than single row deep groove ball bearings, but has comparable speed characteristics. Among other things, being a radial-thrust one, it can work under conditions of high axial loads.
Bearing dimensions and characteristics
The main components of the ball bearing article 256907 are cages with grooves for balls and a rolling element assembly. The shape of the grooves provides support for the rolling elements, both radially and axially. The assembly itself is protected by contact type seals.
This bearing is a part of domestic production. The decoding of its designation can be performed according to the scheme adopted for Russian products of this type.
The dimensions of bearing 713691010 are 34x64x37 mm. Weight does not exceed 0.445 kg. At factories, this part is packed in cardboard boxes, and instructions for the installation and operation of the product are placed inside.
The dynamic load rating of the ball bearing is 31.5 kN. Static - 27.9 kN. Working frequency of rotation - 6000 rpm.
Diameter and number of balls
Diameter and number of balls
The number of rolling elements in the bearing 713691010 - 28 pcs. These are balls of a regular spherical shape with a diameter of 9.525 mm. They are made of special grades of steel (as a rule, ShKh-15) and heat-treated.
The separator can be steel, made by stamping from an alloy with a high carbon content (without additional designation), cast polyamide (E5), made of textolite (E1C17).
Analogs and modifications
Another analogue can be considered a double-row roller bearing with the same dimensional characteristics 537907. Due to the peculiarities of its design, it has a significantly higher load capacity, but a lower operating frequency.
Among the modifications of the ball bearing 713691010 are products with different types of cages and different materials used for the manufacture of plugs.
Applicability
Bearings 713691010 are used in the front wheel hubs of passenger cars VAZ 2101-2109 (2112, 2121). Installed in wheels M-2141 produced by AZLK and ZAZ-1102 (1102).
If necessary, they can also be installed in the hub units of modern VAZ models instead of a roller bearing.
