China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality thumbnail-3

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality thumbnail-4

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality thumbnail-5

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality photo-1

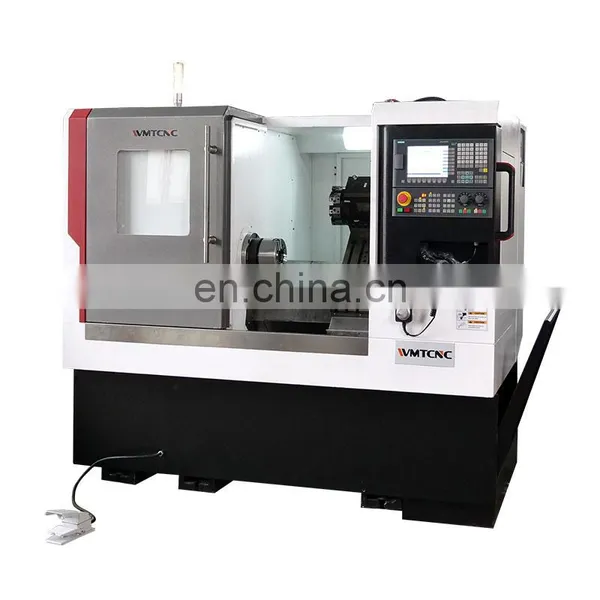

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality photo-2

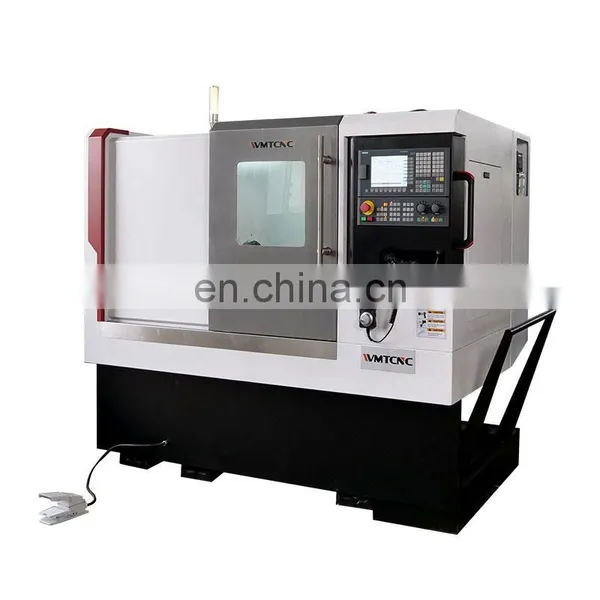

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality photo-3

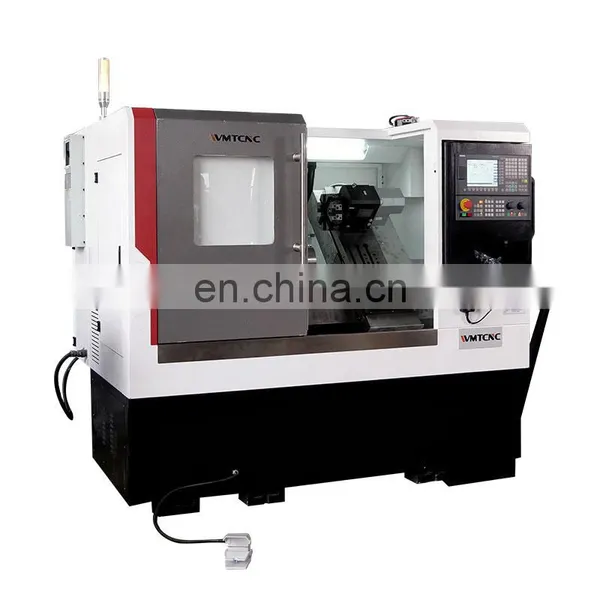

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality photo-4

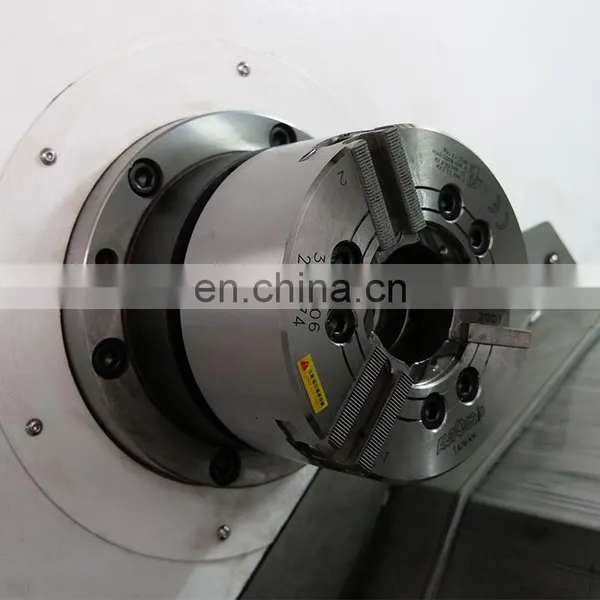

China Hot Sale CK35L Slant Bed Cnc Lathe With High Quality photo-5

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

Main Features:

1)CK35L ATC type cutter cnc turning and milling slant bed cnc lathe, with the advanced level of international similar products as thetarget, which is designed and developed by our company.

The lathe has a horizontal cnc tool holder and a power spindel with a toolmagazine.

The conventional horizontal tool holder can be equipped with conventional tools for turning.

The power spindle can beequipped with BT30 common tools for milling and drilling.

Tool magazine can install 6/8 tools, thus could meet machining needs

2)The lathe adopts the integrated layout of 45' high rigidity integral inclined bed.

It is simple and with full protection.

The whole machine is compact in structure, beautiful in appearance, stable and reliable in performance, and has excellent precision retention.

The lathe can be applied to the processing of small-disc and short-axis parts with complex shapes and high precision requirements

SPECIFICATIONS FOR CNC LATHE CK35L

Max. swing over bed	350mm
Distance between centers	250mm
Max.swing over cross slide	185mm
Max. spindle speed	4000rpm
Spindle bore	52mm
Spindle nose	A2-5
Taper of spindle bore	1:20
Chuck dia.	160mm
X-axis travel	350mm
Z-axis travel	300mm
Rapid traverse X/Z	12/15 m/min
Tool station	Tool array
Tool section	20x20mm
Spindle motor power	4KW Servo
Spindle pump power	120w
CNC controller	GSK 980TDI
Type of guideway	Taiwan linear guideway
Overall size (LxWxH)	2600x1300x1700mm
Packing size (LxWxH)	2760x1700x2050mm
N.W/G.W	1350/1550kg

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes, we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
