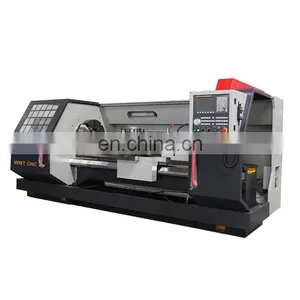

QK1322 225mm Spindle Bore Dia. Pipe Threading Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK6140X1000mm Cnc Lathe Machine With Automatic Bar FeederNegotiableMOQ: 1 -
CK6140X750mm CNC Automatic Lathe Machine for Cutting ScrewsNegotiableMOQ: 1
-
CAK6180X2000 Factory Direct Sell Cnc Lathe Machine With Cheap PriceNegotiableMOQ: 1
-
CK6163 High Speed Cheap Cnc Lathe for SaleNegotiableMOQ: 1
-
360mm Spindle Bore Dia. QK1327 Pipe Threading MachineNegotiableMOQ: 1
Technology Data
Main Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
Specification |
QK1322 |
Max.swing over bed |
Ф670mm |
Max.swing over carriage |
Ф380mm |
Max. cutting length |
1500mm |
Rail width |
550mm |
Spindle bore |
Ф225mm |
Taper of spindle bore |
MT6 |
Chuck size |
500mm |
Range of spindle speed |
(L):25-120rpm(H):100-500rpm |
X-axis travel |
350mm |
Z-axis travel |
1250mm |
X/Z rapid speed |
4m/min |
Electronic turret |
4 -station |
Max.section of tool |
32x32mm |
Stroke of tailstock sleeve |
250mm |
Diameter/Hole of tailstock sleeve |
Ф100mm/MT5 |
Main motor power |
11kw |
Overall dimensions L x W x H |
3657×1555×1360mm |
Packing size L x W x H |
3857×1755×1560mm |
Net weight |
4600kgs |
Gross weight |
5600kgs |

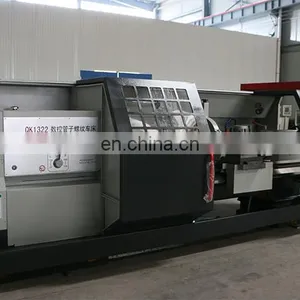

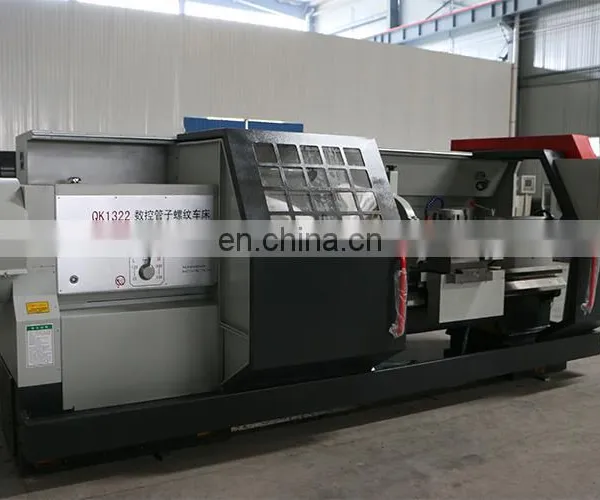

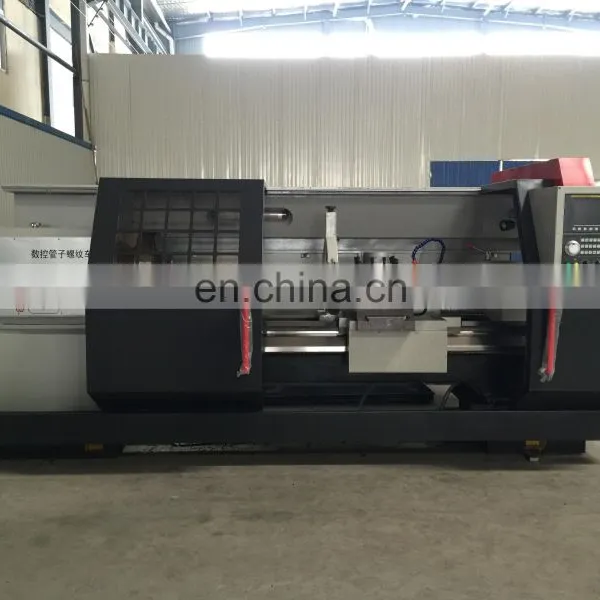

Machine pics
GSK980TDC controller
Siemens 808D controller
Fanuc Oi TF controller
Machine Accesories
Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post
Unitary iron casting machine stand
Manual 3-jaw chuck 2 pcs
Optional Accessories:
GSK218M controller
Simens 808D controller
Simens 808D Advance controller
Fanuc Oi TF controller
6/8-Position electrical tool post
