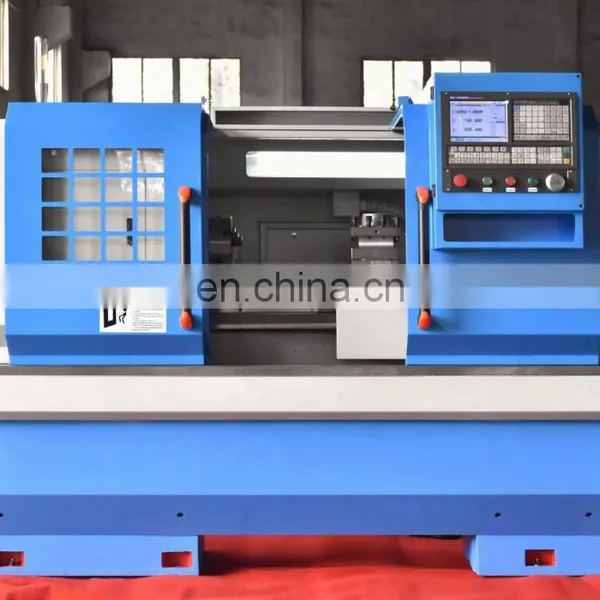

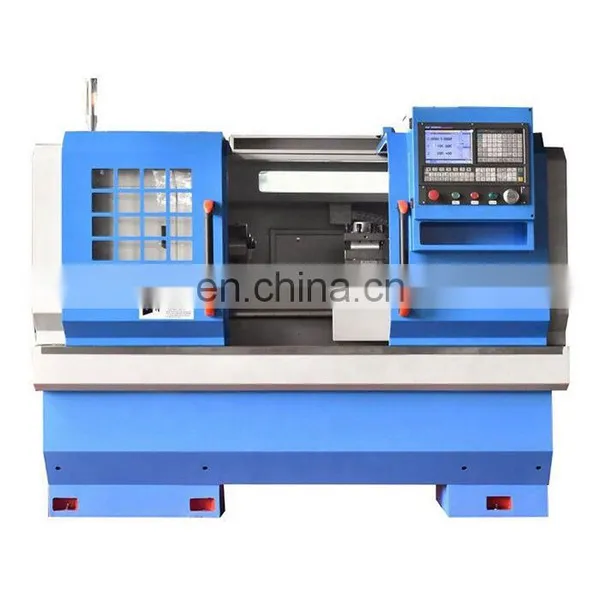

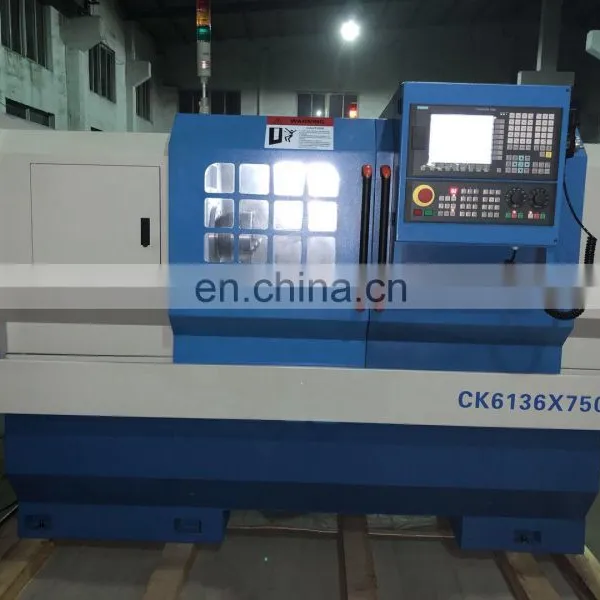

CK6136x1000 Chinese Cnc Machine Lathe Price for Metal Work
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QK1319 200mm Spindle Bore Dia. Pipe Threading MachineNegotiableMOQ: 1 -
Cnc Lathe CNC210 Metal Mini Cnc Lathe Machine With Siemens System ControllerNegotiableMOQ: 1
-
CNC210 Benchtop Cnc Machine With GSK System ControllerNegotiableMOQ: 1
-
QK1322 Heavy Duty CNC Pipe Threading Lathe Machine for Industry and MiningNegotiableMOQ: 1
-
QK1330 China Factory CNC Pipe Threading Lathe Machine With High PrecisionNegotiableMOQ: 1
Machine Show:
Technology Data
Specification for CK6136 CNC Lathe machine
Specification |
CK6136x500/750/1000/1500mm |
CK6140×750/1000/1500mm |
Max. swing over bed |
360mm |
Φ400mm |
Max. swing over carriage |
210mm |
Φ240mm |
Max length of work piece |
500/750/1000/1500mm |
750/1000/1500mm |
Rail width |
330mm |
330mm |
Range of spindle speed |
150-2000rpm or 60-600/280-2000rpm with 2 steps |
150-2000rpm or 60-600/280-2000rpm with 2 steps |
Stations of tool post |
4/6/8 position or gang type tool holder |
4/6/8 position or gang type tool holder |
Spindle bore |
60mm |
Φ60mm |
Taper of spindle bore |
MT6 |
MT6 |
X-rapid speed |
4m/min |
6m/min |
Z-rapid speed |
7m/min |
8m/min |
Width of guide way |
330mm |
330mm |
X-axis travel |
210mm |
250mm |
Z-axis travel |
500/750/1000/1500mm |
1000/1500mm |
Max size of tool post |
25x25mm |
25×25mm |
Taper of tail stock |
MT4/Ф55mm |
MT4 |
Max range of tail stock quill |
120mm |
120mm |
Power of main motor |
5.5kw or 7.5kw |
5.5kw |
Packing size(LxWxH) |
2150/2420/2740/3240x1620x2100mm |
2420/2740/3240×1620×2100mm |
Net weight |
1350/1500/1700/2100kgs |
1700kg/2100kgs |
Gross weight |
1550/1700/1900/2300kgs |
1900/2300kgs |
Machine accessories
Standard Accessories:
Cooling system
Auto-lubricating system
Work lamp
GSK-980TDc controller with feeding servo motor
4-Position electrical tool post

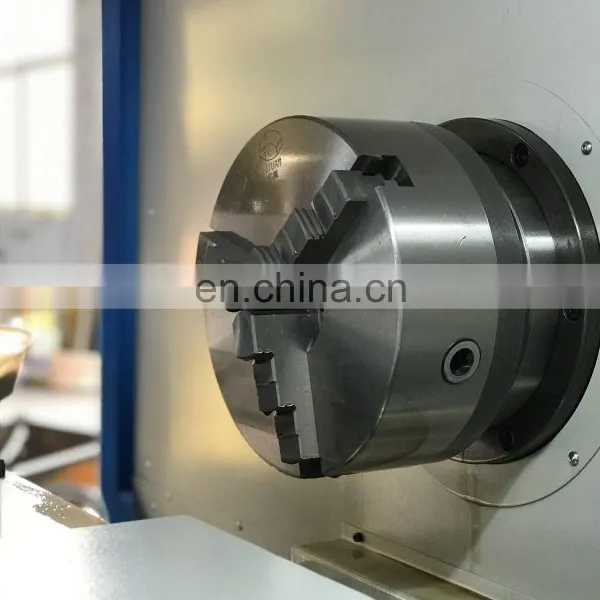

Manual 3-jaw chuck
Optional Accessories:
GSK218M controller
Simens 808D controller, Advance controller
Fanuc Oi TF controller
6-Position electrical tool post
Hydraulic chuck
Bar Auto-feeding (KT-16 and KT-20)
Gang tools type
