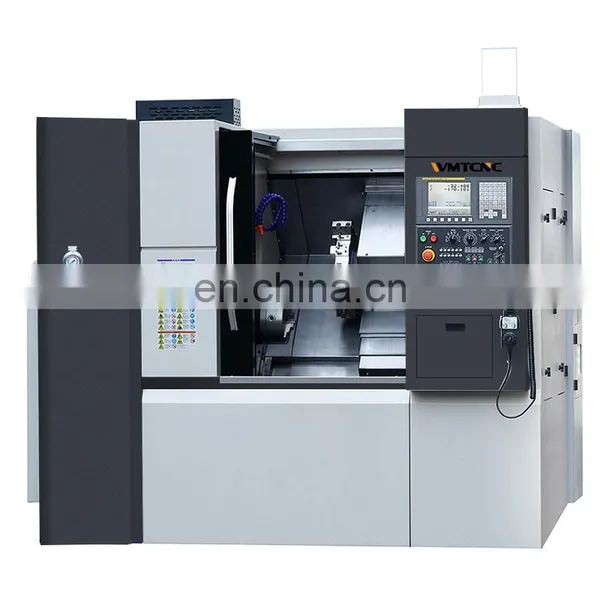

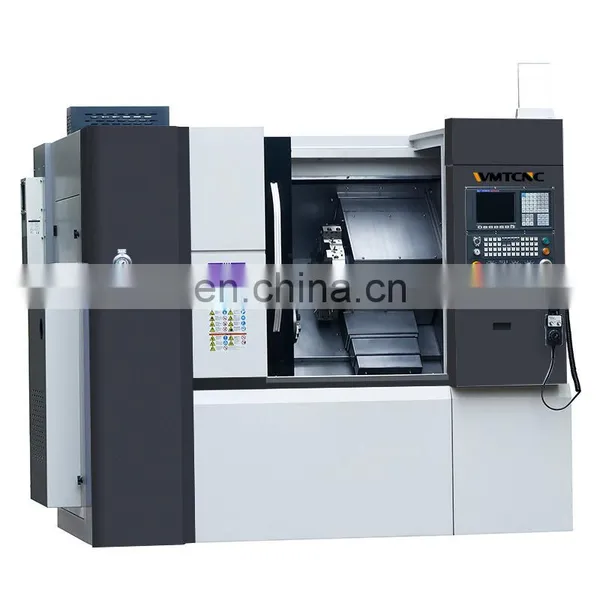

Factory Sell SHL450/320 45-degree CNC Slant Bed Lathe Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct Sell SWL550/1000 35-degree CNC Slant Bed Turning Center Lathe Machine From ChinaNegotiableMOQ: 1 -
Efficient TX700 3-axis CNC Turning Center Lathe Machine With 12-station Power Turret for MetalworkingNegotiableMOQ: 1
-
High Speed Spindle VK450 Vertical Type Cnc Lathe Machine With 8-station TurretNegotiableMOQ: 1
-
VK600 Vertical Type Cnc Lathe Machine With 8-station TurretNegotiableMOQ: 1
-
Dual Spindle SWL450S/650 35-degree CNC Turning Center Slant Bed Lathe Machine From ChinaNegotiableMOQ: 1
Product Description
SHL450/320 45-degree CNC slant bed lathe machine
Main Features:
1. SHL lathes have a heavy-duty cast base with “true align” slant bed design.
2. The machine bed, headstock and turret are aligned on the same plane.
3. This design reduces heat built-up and resulting thermal expansion.
4. Additional resulting efficiencies from the “true align” design are greater rigidity and smoother operation which provides a variety of benefits.
5. You can expect to produce highly accurate parts with extremely fine surface finishes.
6. There are multiple benefits to having a lathe that combines such a large sized “vibration damping” solid, cast base.7. PLUS, properly aligned and balanced components.
8. The SHL450/320 CNC slant bed lathe features a mono-block bed/spindle design for increased rigidity and vibration damping. Even during heavy cutting operations.
9. The rigid foundation on the SHL450/320 also assures precision and repeatability during high speed turning operations.
10. Ture slant bed extremely minimizes the impact of thermal expansion to precision.
11. 45 degree slant bed is more convenient for scrap iron.
12. Better dynamics and higher precisions.
13. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable.
14. Increasing the versatility and automation of the lathe.
15. Better water-resistant and scrap-iron-resistant.
Some of these benefits include:
1. Smoother slide surface operation.
2. Higher speed and accuracy.
3. Fewer machine adjustments and lower maintenance costs.
4. Shortened machine warm-up time.
5. Lower power consumption.
Specification |
Unit |
SHL450/320 |
||
Capacity |
Chuck size |
inch |
8" |
|
Max. swing dia. over bed |
mm |
Ø450 |
||
Max. length of workpiece |
mm |
320 |
||
Max. swing dia. over slide |
mm |
Ø220 |
||
Spindle |
Spindle bore |
mm |
Ø62 |
|
Max. dia. of through-hole |
mm |
Ø52 |
||
Spindle nose |
type |
A2-6 |
||
Spindle speed |
rpm |
4000 |
||
*2000 |
||||
Main motor power |
kW |
7.5/11 |
||
Axis |
X axis travel |
mm |
250 |
|
Z axis travel |
mm |
320 |
||
X/Z rapid traverse |
m/min |
20/20 |
||
Turret |
No. of tool stations |
nos |
8,*12 |
|
Tool shank size |
mm |
25X25,*20X20 |
||
Structure |
Slant bed degree |
45 |
||
Guideway type |
LM |
|||
Others |
Power capacity |
kVA |
15 |
|
Overall dimension (LxWxH) |
mm |
2290X1600X1810 |
||
Weight (about) |
kg |
3300 |
||

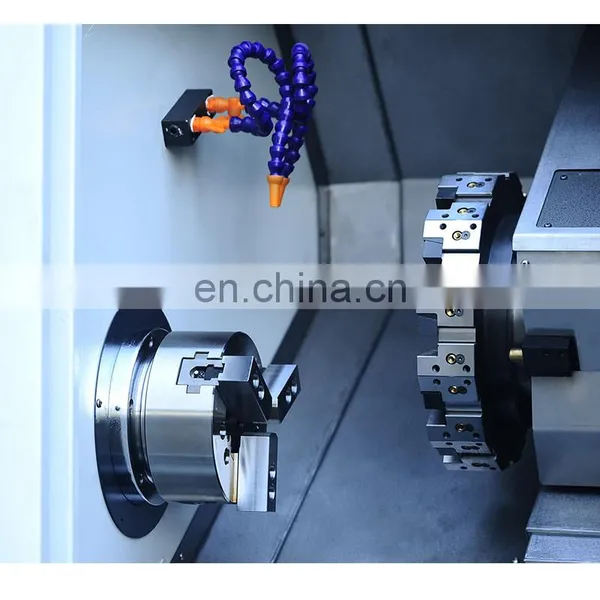

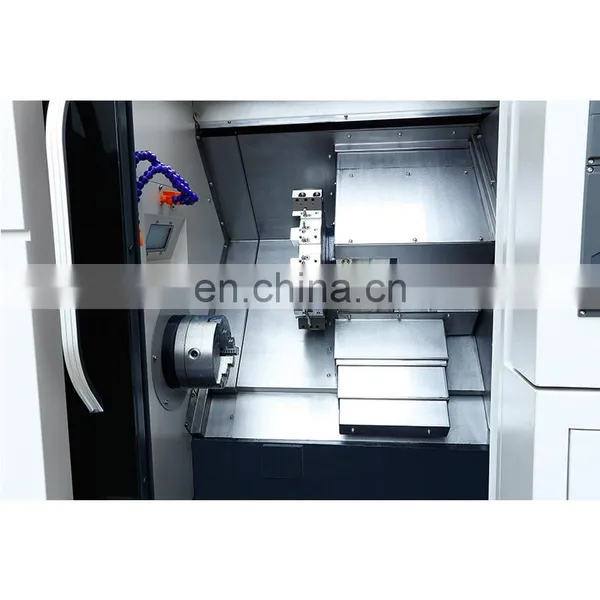

Detailed Images
