Factory Direct Sale C0632A C0632B Cheap Bench Lathe Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini 3 in 1 Lathe Combo MP250V Multi Purpose Lathe MachineNegotiableMOQ: 1 -
CQ0625 DIY 26mm Mini Lathe Machine With CE for SaleNegotiableMOQ: 1
-
38mm Bore CQ6133 Hobby Turning Tool Cheap Precision Bench Lathe Machine With CENegotiableMOQ: 1
-
CJM250 Parallel Lathe 500mm Mini Metal Lathe Machine Price With Auto FeedingNegotiableMOQ: 1
-
Variable Speed 26mm CQ0625V Manual Mini Lathe Machine Price With CE for SaleNegotiableMOQ: 1
Product Description
Main Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers.
5. Removable gap is provided for larger diameter work.
6. Easy operating gear box has various feeds and thread cutting function.
Machine Details:

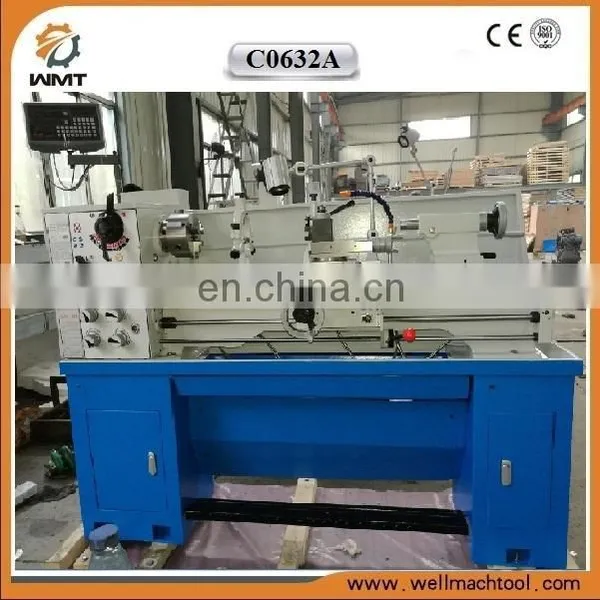

1) Specification for C0632A lathe machine:
Specifications |
C0632A×750/1000mm |
C0636A×750/1000mm |
|
C0632B×750/1000mm |
C0636B×750/1000mm |
||
Swing over bed |
Φ330mm(13") |
Φ360mm(14") |
|
Swing over cross slide |
Φ198mm(7-25/32") |
Φ212mm(8-1/6") |
|
Swing over gap |
Φ476mm(18-3/4") |
Φ491mm(9-1/3") |
|
Distance between centers |
750mm(30")/1000mm(40") |
||
Bed width |
187mm(7-3/8") |
||
Spindle bore and nose |
A: Φ38mm(1-1/2") / D1-4 camlock |
||
B: Φ52mm(2")/D1-5 camlock |
|||
Taper in nose |
MT5 |
||
Speeds number |
8 or 16(pole changeable motor:optional) |
||
Speeds range |
70-2000rpm or 35-2000 rpm(2 speed motor) |
||
Leadscrew thread |
8 TPI or 3mm pitch |
||
Cutting tool max section |
16×16mm(5/8"×5/8") |
||
Threads imperial pitches |
36 Nos. 8-112TPI or (34 Nos. 4-56TPI) |
||
Thread metric pitches |
28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm) |
||
Longitudinal feeds imperial |
36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev) |
||
Longitudinal feeds metric |
36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev) |
||
Cross feeds imperial |
36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev) |
||
Cross feeds metric |
36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev) |
||
Tailstock barrel taper and travel |
MT3 100mm (3-15/16") |
||
Main motor |
1.5KW/3 PH or 1 PH |
||
Cross slide travel |
160mm(6-5/16") |
118mm(4-5/16") |
|
Compoud rest travel |
68mm(2-11/16") |
||
Net /Gross weight |
570/620kg 620/670kg |
610/660kg 650/700kg |
|
Packing size |
1890/1940 X 750 X 1510mm |
||

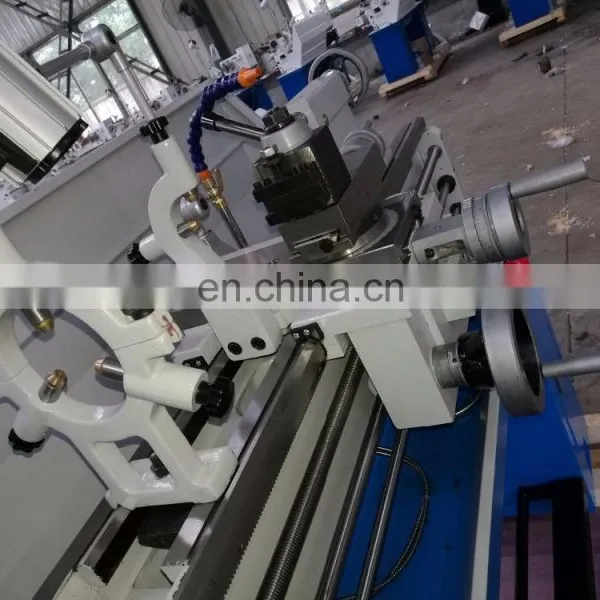

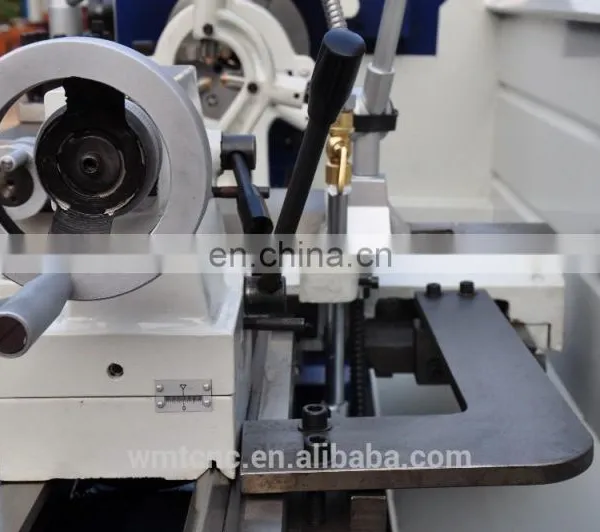

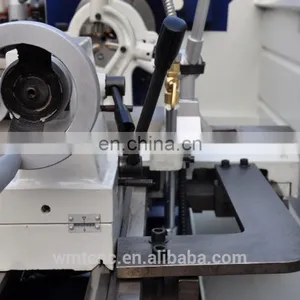

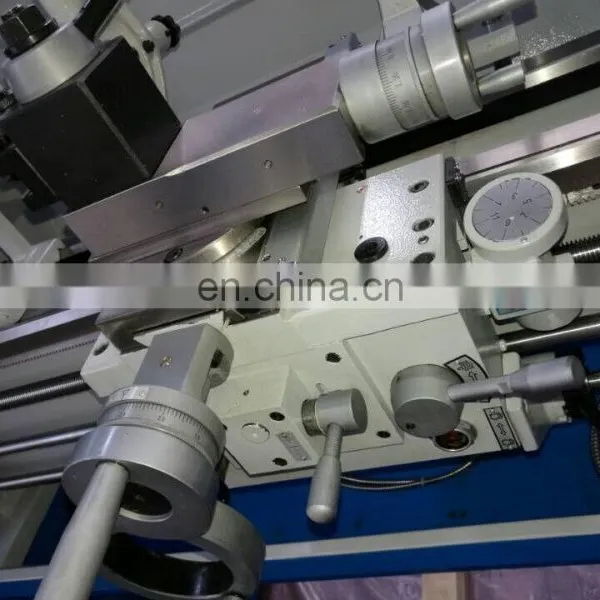

2) Details for lathe machine C0632A : hardend bed way+safe packing.
Standard accessories:
3-jaw chuck, 4-jaw chuck
coolant system, working light
foot brake, steady rest
follow rest, chasing dial indicator
change gears set, tool box and tools
Optional accessories:
MT4 live center
American quickc chamge toolpost
Turning tools
Taper attachment
2-Axis digital read out
3-Axis digital read out
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
