CD6260C 80mm Spindle Bore Heavy Duty Horizontal Engine Lathe Manual Lathe Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C6253 1000/1500/2000 mm Diameter Gap Bed Heavy Duty Metal Horizontal Engine Lathe PriceNegotiableMOQ: 1 -
Hot Selling Mini Bench Lathe Machine DIY0714 for DIY Hobby and Training UseNegotiableMOQ: 1
-
CM6241 1000mm Gap Bed Manual Engine Lathe Machine for Metal Turning With CENegotiableMOQ: 1
-
280mm Big Bore Manual Lathe Pipe Threading Lathe Machine Q1327 With CE StanfardNegotiableMOQ: 1
-
Manual Lathe Machine C6128 High Precision Metal Bench Mini Lathe Machine PriceNegotiableMOQ: 1
Product Description
Features:
CD6260C 80mm spindle bore heavy duty horizontal engine lathe machine with CE
Super voice frequency heated bedways
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Main Technical Data
Specification |
CD6260B or CD6260C |
Max.swing over bed |
Φ600mm |
Max.swing over cross slide |
Φ360mm |
Max.swing over gap |
Φ730mm |
Effective length of gap |
260mm |
Center Distance |
1000mm/1500mm/2000mm/3000mm |
Bed Width |
330mm |
Spindle hole |
B:Φ65mm,C: Φ80mm |
Spindle nose |
B:ISO-D6,C:ISO-D8 |
Spindle speed(Number) |
B:20-1800rpm(15steps) C:/24-1600rpm(15steps) |
Longitudinal feeds range |
66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev) |
Cross feeds range |
66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev) |
Metric threads range |
66kinds 0.5-28 |
Inch threads range |
66kinds 1-56inch |
Module threads range |
33kinds 0.5-3.5mπ |
Diametric threads range |
33kinds 8-56D.P |
Max.travel of top slide |
130mm |
Max.travel of cross slide |
300mm |
Max.size of tool shank |
20×20mm/25×25mm |
Dia.of tailstock sleeve |
Φ65mm |
Taper of tailstock sleeve |
MT5 |
Max.travel of tailstock |
120mm |
Main drive motor |
5.5kw or 7.5kw |
Rapid traverse motor |
250w |
Coolant pump motor |
125w |
Packing size |
1000mm:2420mm×1150mm×1800mm 1500mm:2920mm×1150mm×1800mm 2000mm:3460mm×1150mm×1800mm 3000mm:4720mm×1150mm×1800mm |
N.W/G.W |
1000mm:1560/2210kgs 1600/2250kgs 1640/2290kgs |
1500mm:1770/2410kgs 1830/2470kgs 1870/2530kgs |
|
2000mm:2010/2780kgs 2070/2820kgs 2130/2860kgs |
|
3000mm:2400/3200kgs 2460/3260kgs 2580/3400kgs |

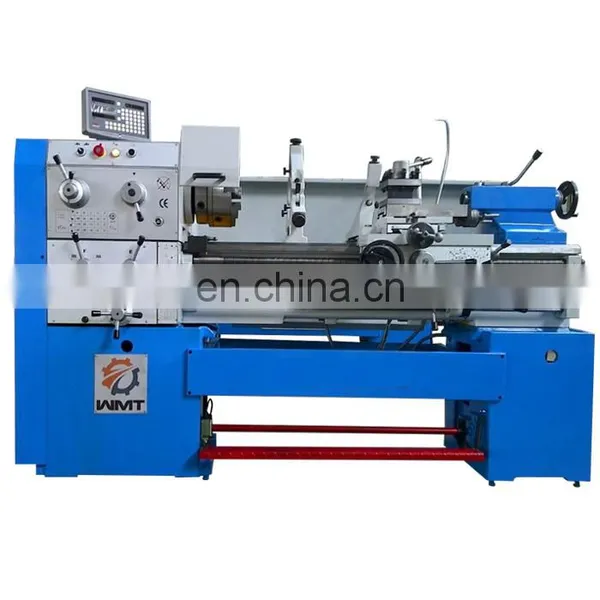

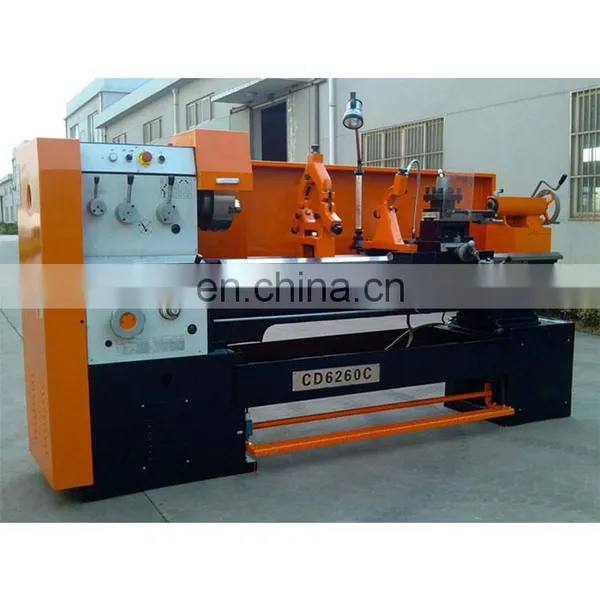

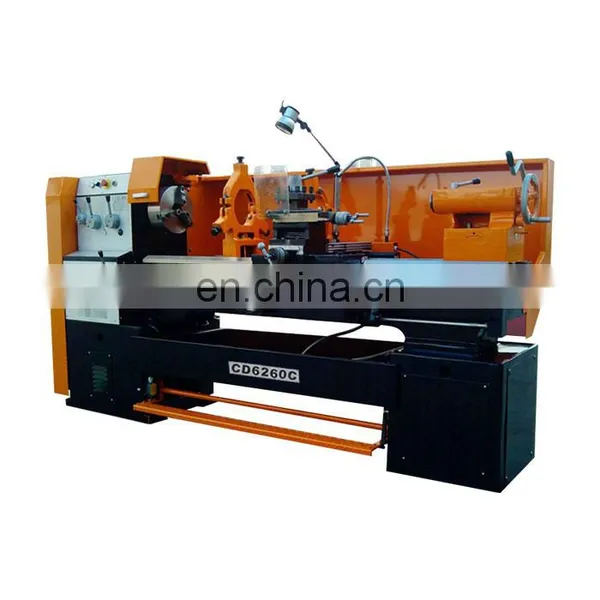

Detailed Images
Package&Shipping
Company profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
