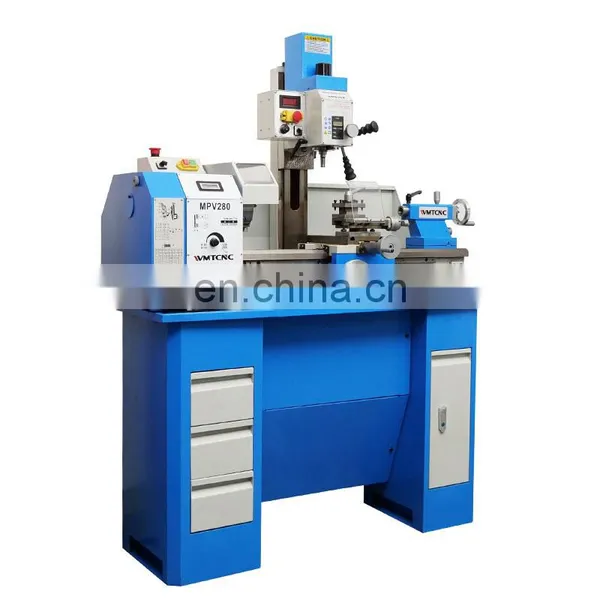

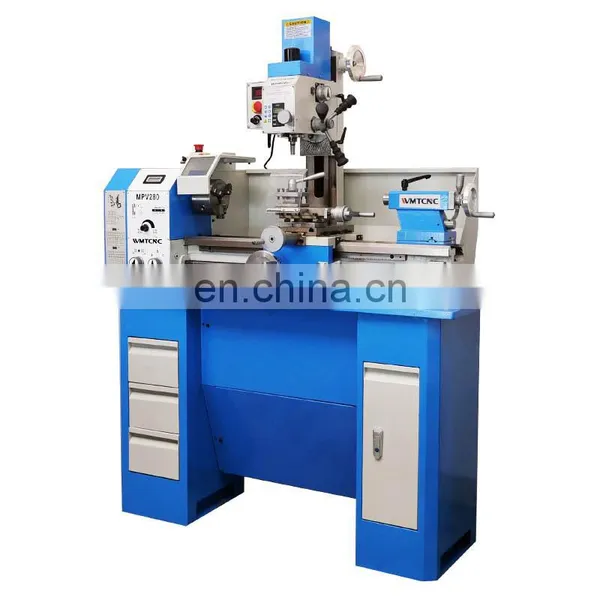

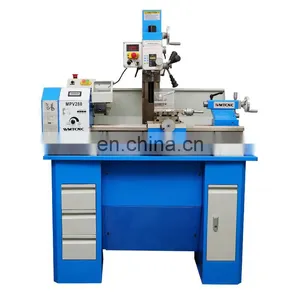

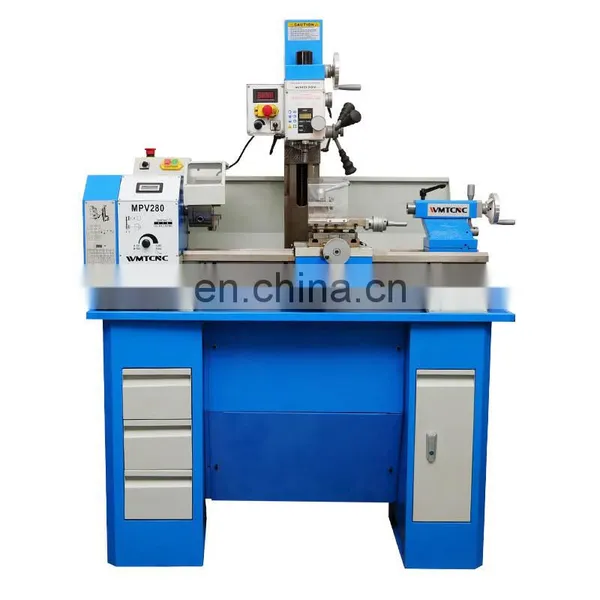

Economic Multi-purpose Lathe Machine MPV280 Combo Lathe and Milling Drilling Machine in China
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Design 1500mm CM6241 Manual China Engine Lathe Machine With DRO for MetalworkingNegotiableMOQ: 1 -
WMTCNC Variable Speed MPV290 Combination Lathe Milling Machine With 220V/50HZ/single-phaseNegotiableMOQ: 1
-
CM6241 52mm Spindle Bore Manual Engine Lathe Machine With CE for SaleNegotiableMOQ: 1
-
C0636B Horizontal Precision Metal Bench Lathe Machine With Competitive PriceNegotiableMOQ: 1
-
Lathe Tool C0636A Cheap Lathe Machine Tool PrecisionNegotiableMOQ: 1
Product Description
Combo lathe drilling milling machine main features:
1.The machine combined turning, milling, drilling and threading.
2. Most popular, widely useful variable speed lathe.
3. V-way bed is hardened and precision ground.
4. Spindle is supported by precision tapered roller bearing.
5. High precision chuck.
6. T-slotted cross slide.
7. Power longitudinal feed allows threading.
8. Adjustable grids for slidedways.
9. Top design of gearbox gets more function.
10. Right and left hand threads cutting is available.
11. Gear mill head gets more torque.
12. Mill head can be tilled.
13. Tolerance test certificate, test chart included.
Specification |
MPV280 |
Distance between centers |
700mm |
Swing over bed |
280mm |
Swing over cross slide |
170mm |
Spindle taper |
MT4 |
Width of bed |
180mm |
Spindle bore |
26mm |
Range of spindle speeds（variable speed） |
50-2500rpm |
Range of cross feed |
0.07-0.40mm/r |
Range of longitudinal feed |
0.085~0.832mm/rev |
Range of inch threads |
8-56T.P.I |
Range of metric threads |
0.2-3.5mm |
Top slide travel |
65mm |
Cross slide travel |
180mm |
Tailstock quill travel |
75mm |
Taper of tailstock quill |
MT2 |
Main motor |
1.1kw |
Drilling and milling head |
BF20 |
Spindle taper |
MT2 |
Spindle travel |
52mm |
Range of spindle speeds（variable speed） |
50-3000rpm |
Max.distance from spindle nose to table |
380mm |
Max.distance from spindle to columm |
185mm |
Motor power |
850w |
Packing size（for machine） |
1370x850x1050mm |
Packing size（for stand） |
800x580x415mm |
248kgs |

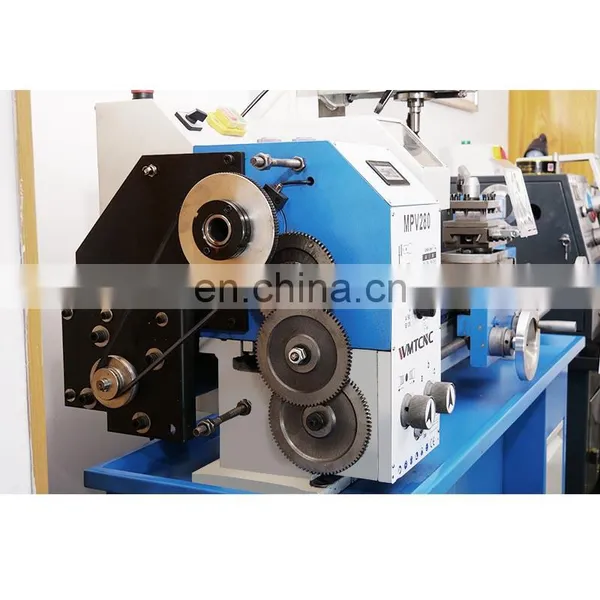

Detailed Images
Standard accessories:

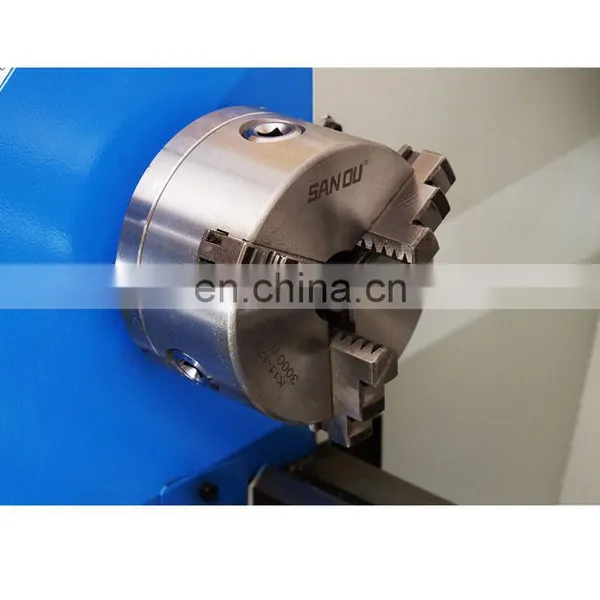

3-jaw chuckSpeed display
Splash guard
Chip tray
Dead center
Change gears
Draw bar
Working lamp
Drill chuck
Tool box with tools
Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
