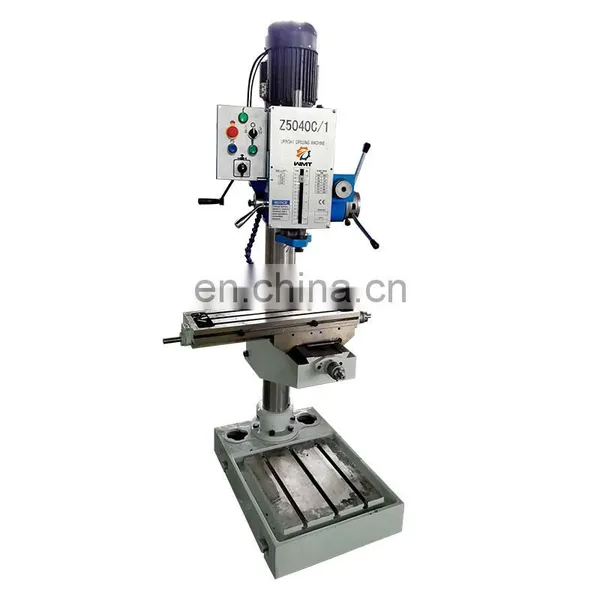

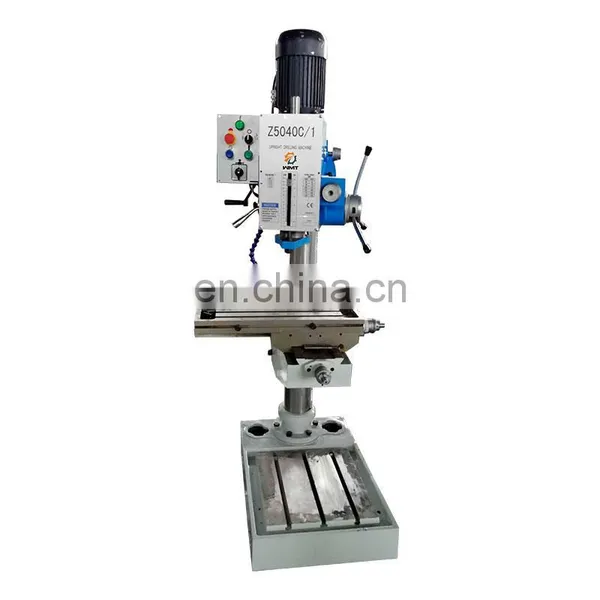

Z5040C/1 Spindle Auto-feeding Vertical Drilling Machine With Cross Table

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

1,Drilling,Milling and Tapping.

2,Headstock and worktable up and down perpendicularly.

3,Head swivels 360 ° horizontally

4.Gear driven lower noise

5,Positive spindle lock

6,It have Cross table.

7,Spindle auto feeding

Specification	Z5032/1 Z5040/1 Z5045/1	Z5032 Z5040 Z5045
Max.drilling capacity	Φ32mm/Φ40mm/Φ45mm
Spindle taper	MT3/MT4/R8
Spindle travel	Φ130mm
Step of spindle speed	6 steps
Range of spindle speed 50Hz	80-1250rpm
60Hz	95-1500rpm
Step of spindle auto-feeding	6 steps	/
Range of spindle auto-feeding amount	0.06-0.30rpm	/
Min.distance from spindle axis to column	290mm
Max.distance from spindle nose to worktable	725mm	700mm
Max.distance from spindle nose to stand table	1125mm
Max.travel of headstock	Φ250mm
Swivel angle of headstock(horizontal/vertical)	360°
Max.travel of worktable bracket	Φ600mm
Worktable size of avaliablity	380×300mm	730×210mm
Swivel angle of table horizontally	360°
Table leaned	±45°	/
Size of stand worktable of avaliability	417×416mm
Motor Power	0.75kw/1.1kw/1.5kw	0.75kw/1.1kw/1.5kw
Speed of motor	1400rpm	1400rpm
N.W/G.W	440/490kgs	470/530kgs
Packing size	1850×750×1000mm	1850×950×1000mm
Loading amount/20" container	18pcs	12pcs
