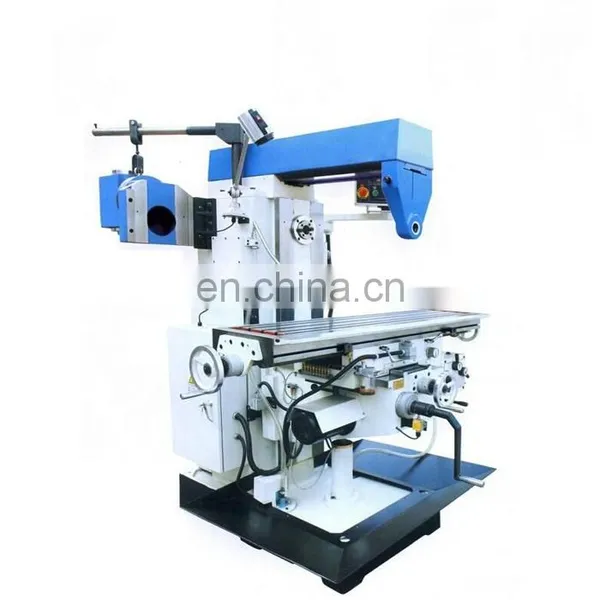

XU28 XU32 Vertical Horizontal Universal Milling Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZX32G Dia.32mm Manual Milling Machine for Metal WorkingNegotiableMOQ: 1 -
ZAY7045V Variable Speed Milling Drilling Machine for Sale From ChinaNegotiableMOQ: 1
-
WMT Vertical Type Mill Machinery X6332B Universal Milling MachineNegotiableMOQ: 1
-
Universal Vertical Milling Machine XZ6350ZB for Metal WorkingNegotiableMOQ: 1
-
ZAY7045V Variable Speed Small Milling Machine for Metal WorkingNegotiableMOQ: 1
Features:
Universal milling machine
Specification |
XU28 |
XU32 |
Spindle taper |
ISO40 |
ISO40 |
Distance from horizontal spindle to worktable |
0-400mm |
0-400mm |
Spindle speed |
(12 steps) 48-1560rpm (horizontal) |
(12 steps) 42-1320rpm (horizontal |
Table size |
1270x280mm |
1370x320mm |
Table travel |
750/300/400mm |
740/320/400mm |
Feeding range of longitudinal, cross travel |
(8 steps) 22-555mm/min (rapid 1080) |
(8 steps) 22-555 (rapid 1080) |
Auto feeding of Z axis |
560mm/min |
560 |
T-slot (number-width-distance) |
3-14-70 |
3-14-70 |
Main motor |
3 |
4 |
Motor for rapid device of table |
750W |
750W |
Motor for vertical device of table |
750W |
750W |
Overall dimension |
1600x1500x2000mm |
1700x1600x2000mm |
N.W./G.W. |
1500/1600kgs |
1900/2000kgs |
