ZAY7045FG Milling and Drilling Machine for Metal Working
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZAY7045FG Vertical Milling and Drilling Machine With CE Standard From ChinaNegotiableMOQ: 1 -
ZAY7045V Variable Speed Milling and Drilling Machine With CE StandardNegotiableMOQ: 1
-
ZAY7045FG Gear Head Drilling and Milling Machine With Metal WorkingNegotiableMOQ: 1
-
Anhui Mini Manual Milling and Drilling Machine ZAY7032G for PlasticNegotiableMOQ: 1
-
ZAY7032V Variable Speed Drilling Milling Machine for Metal WorkingNegotiableMOQ: 1
Drilling/Milling Machine ZAY7045FG
Milling ,drilling, tapping,boring,reaming;

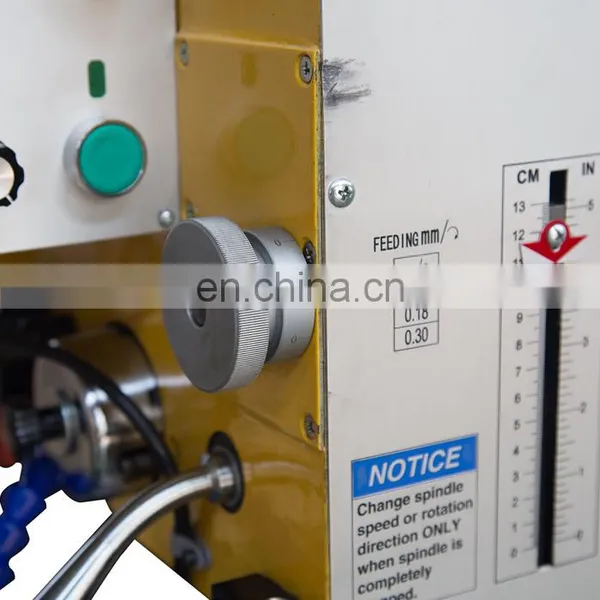

Head swivels ±90°verticaly; Spindle micro feed precision;

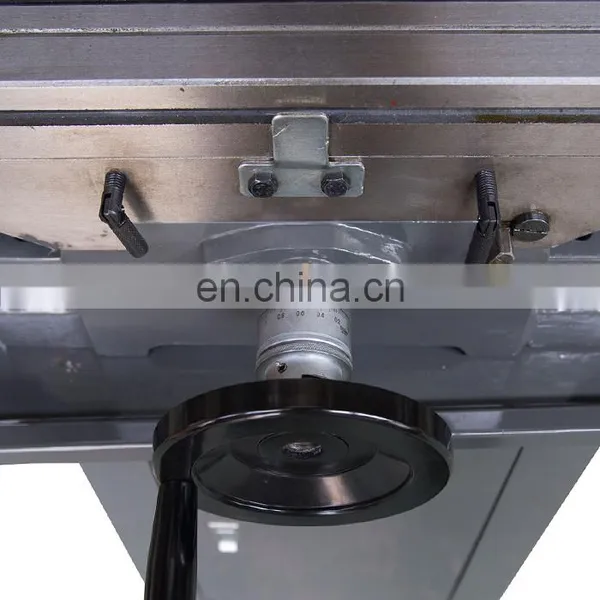

Adjustable gibs on table precision;
Accurate position ,strong rigidity , powerful cutting;

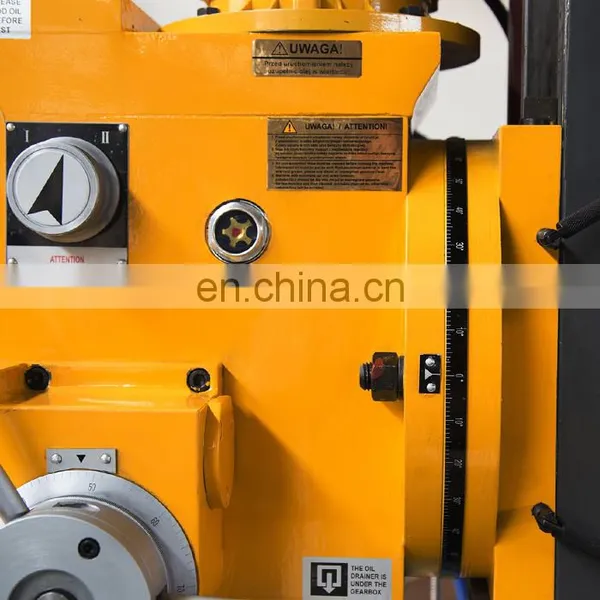

Gear-driven type and square column.
Specification |
ZAY7032FG |
ZAY7040FG |
ZAY7045FG |
ZAY7045M |
|||
Drilling capacity |
Φ32mm |
Φ40mm |
Φ45mm |
Φ45mm |
|||
Face milling capacity |
Φ63mm |
Φ80mm |
Φ80mm |
Φ80mm |
|||
End milling capacity |
Φ20mm |
Φ32mm |
Φ32mm |
Φ32mm |
|||
Distance from spindle nose to table |
450mm |
450mm |
450mm |
420mm |
|||
Min.distance from spindle axis to column |
260mm |
||||||
Spindle travel |
130mm |
||||||
Spindle taper |
MT3 MT4 or R8 |
MT4 or R8 |
|||||
Step of spindle speed |
6 steps |
||||||
Range of spindle speed 50Hz |
80-1250 r.p.m |
||||||
60Hz |
95-1500 r.p.m |
||||||
Swivel angle of headstock (vertical) |
±45° |
||||||
Table size |
800×240mm |
||||||
Forward and backward travel of table |
175mm |
||||||
Left and right travel of table |
500mm |
||||||
Motor Power |
1.5kw |
||||||
N.W/G.W |
320/370kgs |
323/373kgs |
325/375kgs |
||||
Packing size |
770×880×1160mm |
||||||
