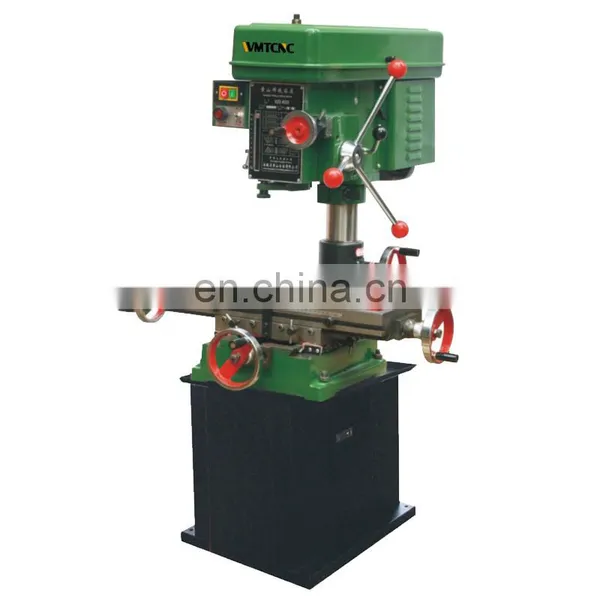

Bench Drill XZS4020 Drilling and Milling Machine Industrial Type Small Table Drill Press Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SK4316/SK4316W Folding Arm Type Servo Electric Tapping Machine Vertical/ Universal Tapping DirectionNegotiableMOQ: 1 -
SK4330/SK4330W Folding Arm Type Servo Electric Tapping Machine Vertical/ Universal Tapping DirectionNegotiableMOQ: 1
-
SK4342/SK4342W Folding Arm Type Servo Electric Tapping Machine Vertical/ Universal Tapping DirectionNegotiableMOQ: 1
-
Drill Press 20mm Auto-feed Drilling Machine JZB4020(L) Bench Drill PressNegotiableMOQ: 1
-
Drill Press 25mm Auto-feed Drilling Machine JZB4025(L) Bench Drill PressNegotiableMOQ: 1
Product Description
Model |
XZS4020 |
Max. Drilling capacity(mm) |
20 |
Max. Horizontal milling diameter(mm) |
50 |
Max. Veitical milling capacity(mm) |
12 |
Max.tapping capacity(mm) |
M 14/M 10 |
Max.horizontal grinding wheel diameter(mm) |
— |
Max. Spindle travel(mm) |
110 |
Morse taper of spindle nose(mm) |
MT.2 |
Spindle speeds(r/min) |
300-400-550-800- 1200-1800-2450-3150 |
Distance from spindle axis to column surface(mm) |
198 |
Size of worktable(mm) |
550x200 |
Max. travel of worktable(mm) |
360x160 |
Distance from spindle nose to worktable(mm) |
200-375 |
Motor(kw) |
0.55(6 极) |
G.W/N.W(kg) |
238/218 |
Ship measurement(cm) |
100x78x103.5 |
Detailed Images
Company profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
