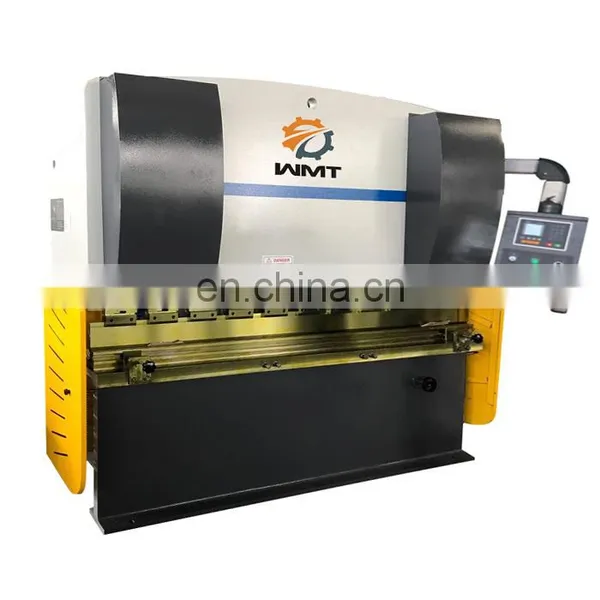

WC67Y-100/3200 Hydraulic Press Brake Machine With E21

WC67Y-100/3200 Hydraulic Press Brake Machine With E21 thumbnail-1
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 thumbnail-2
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 thumbnail-3
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 thumbnail-4
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 thumbnail-5
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 photo-1
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 photo-2
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 photo-3
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 photo-4
WC67Y-100/3200 Hydraulic Press Brake Machine With E21 photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Jingjiang Fuji Technology Co., Ltd.
Gold Verified Supplier
4Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Features of hydraulic press brake:
1. Hydraulic press brake all Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity.Hydraulic upper
transmission, steady and reliable.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high
precision.
3. Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level.
hydraulic press brake back gauge can be multi-axes controlled.
4. Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust equipment, numerical
display.
5. Our hydraulic press brake machine worktable full deflection compensation
6. Adopt integrated hydraulic system, more reliable and easy for maintenance.
7. Travel limit protection, full hydraulic press brake machine guarding with safety interlocker.
8. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
9. Inch, single mode being designed for the hydraulic press brake machine and reversing and maintain time can be controlled by the
time relays
10. Safe fence and the electric interlocker have been designed for the hydraulic press brake machine to ensure the operation
safety.
11. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
12. Control system for hydraulic press brake: Estun NC E21, CNC DELEM DA41, DA52, DA66T,etc.
Features:
MODEL
Nominal pressure
Length of worktable
Distance between uprights
Ram stroke
kn
mm
mm
mm
WC67Y-40/2000
400
2000
1590
100
WC67Y-40/2200
400
2200
1590
100
WC67Y-40/2500
400
2500
2090
100
WC67Y-50/2500
500
2500
1900
120
WC67Y-50/3200
500
3200
2600
120
WC67Y-63/2500
630
2500
2050
100
WC67Y-63/3200
630
3200
2600
100
WC67Y-80/3200
800
3200
2600
100
WC67Y-80/4000
800
4000
3200
100
WC67Y-100/2500
1000
2500
1900
120
WC67Y-100/3200
1000
3200
2600
120
WC67Y-100/4000
1000
4000
3200
120
WC67Y-100/5000
1000
5000
4000
120
WC67Y-125/2500
1250
2500
2050
130
WC67Y-125/3200
1250
3200
2600
130
WC67Y-125/4000
1250
4000
3200
130
WC67Y-125/5000
1250
5000
4000
120
WC67Y-160/3200
1600
3200
4800
200
WC67Y-160/4000
1600
4000
2600
200
WC67Y-160/5000
1600
5000
3200
200
WC67Y-160/6000
1600
6000
4000
200
WC67Y-200/3200
2000
3200
4800
200
WC67Y-200/4000
2000
4000
2600
200
WC67Y-200/5000
2000
5000
3200
200
WC67Y-200/6000
2000
6000
4000
200
WC67Y-250/3200
2500
3200
4800
200
WC67Y-250/4000
2500
4000
2600
250
WC67Y-250/5000
2500
5000
3200
250
WC67Y-250/6000
2500
6000
4000
250
WC67Y-300/3200
3000
3200
4800
250
WC67Y-300/4000
3000
4000
3200
250
WC67Y-300/5000
3000
5000
4000
250
WC67Y-300/6000
3000
6000
4800
250
WC67Y-400/4000
400
4000
3200
320
WC67Y-400/5000
400
5000
4000
320
WC67Y-400/6000
400
6000
4800
320
