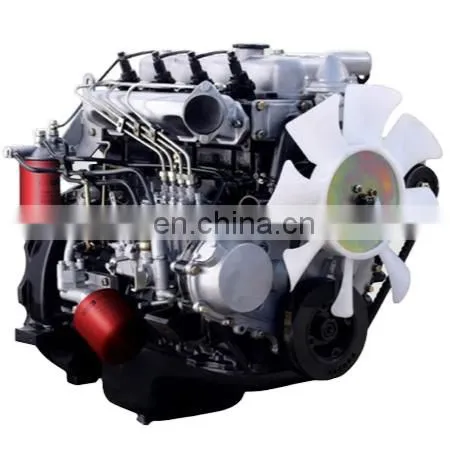

Hot Sale Water Cooled 4 Cylinder Machinery Engines Isu 4BD1T for Truck
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ISU 4BD1 Diesel ENGINENegotiableMOQ: 1 -
4 Cylinder Isu 4HF1 Engine for VehicleNegotiableMOQ: 1
-
High Level ISU 4JB1T EngineNegotiableMOQ: 1
-
100hp 3600rpm Diesel Motor for Pickup Truck Pump PickupNegotiableMOQ: 1
-
4JB1T Diesel Engine 68KW(116HP) Power Pack for Pump and Stationary Equipment(.)NegotiableMOQ: 1
| Isu 4BD1T engine |
|
Model |
4BD1T |
|
Type |
4 cylinders in line, 4 stroke, water-cooling |
|
Aspiration |
turbocharged |
|
Ignition Order |
1-3-4-2 |
|
Bore * Stroke |
102mm (4 inch) x 118mm (4.65 inch) |
|
Displacement |
3.856 L ( 235 in3 ) |
|
Compression Ratio |
17 : 1 |
|
Peak Torque |
343 N.m (253 lb.ft) |
|
Peak Torque Speed |
1600rpm |
|
Speed Governor |
mechanical |
|
Rated Power |
88kw (120hp) 2800rpm |
|
Sound Pressure Level |
114 dB(A) |
|
Idle Speed |
750 rpm |
|
Oil Consumption |
≤ 0.8 g/kw.h |
|
FSN |
≤ 3.0 |
|
Net dry weight |
340 kg |
|
Overall Dimensions |
810mm x 660mm x 813mm |
If you need more information, please contact with us.
