This product can be customized non-standard. For more models, please consult customer service!
1、 Product parameters

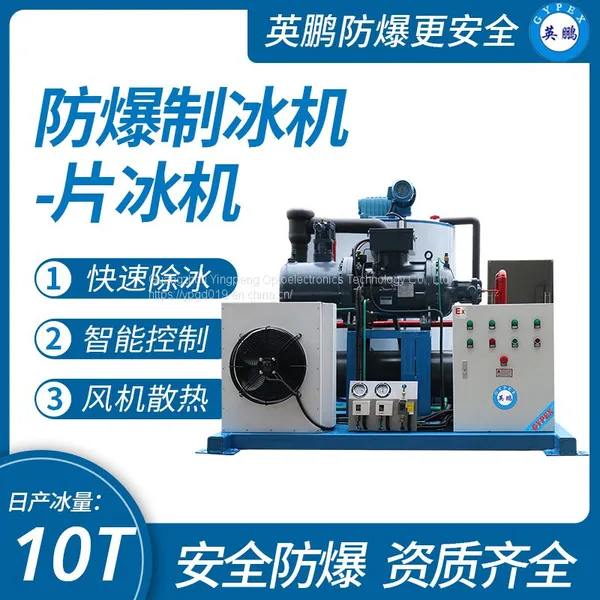

Model: BL-400EX10T
Ice production (kg/24h): 10000
Ice storage capacity (kg): 6000
Refrigeration capacity (kcal/h): 56034
Total power (kW): 31.5
Evaporation temperature: -22 ℃
Power supply: 3P/380V/50Hz
Refrigerant: R22/R404A
Cooling method: water cooling
Weight (excluding freezer): 1360kg
Unit size L * W * H (mm): 2180 * 1840 * 1620
Explosion proof grade: Ex d ib mb IIC T4 Gb
Standard operating conditions of explosion-proof ice machine:
1. The ambient temperature is 25 ℃, and the water temperature is 25 ℃
2. Water supply pressure: 0.15~0.5Mpa, pipe diameter 1/2 ″
3. Cold capacity working condition: condensation temperature is 40 ℃, evaporation temperature is -22 ℃
4. Ice thickness: 1.5-3.0mm, ice temperature: -8 degrees Celsius
model
BL-400EX3T BL-400EX5T BL-400EX6T BL-400EX8T BL-400EX10T
Ice production (kg/24h) 3000 5000 6000 8000 10000
Ice storage capacity (kg) 600 2500 5000 5000 6000
Refrigeration capacity (kcal/h) 16810
28016 33618 44827 56034
Evaporation temperature -22 ℃
Total power (kW) 12.5 20.5 23 26 31.5
Power supply 3N/380V/50Hz
Refrigerant R22/R404A
Cooling method: air cooling and water cooling
Unit size
Length * Width * Height (mm)
1500*1100*1300
1600*1500*1380 2040*1600*1520 2180*1840*1500 2180*1840*1620
Dimensions of ice storage cabinets (warehouses)
Length * Width * Height (mm)
1500*1500*1300
Based on the actual needs of the customer
Weight (kg)
(excluding ice storage cabinets)
660 800 900 1280
one thousand three hundred and sixty
2、 Application field of Yingpeng ice machine:
Widely used in industries such as water conservancy and hydropower, chemical cooling, biopharmaceuticals, scientific research experiments, mine cooling and freezing, concrete mixing, ocean fishing, preservation and transportation of meat, vegetables and fruits, and fresh food processing; Ice sheets have no sharp edges and corners, and will not puncture frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and have a good moisturizing effect. It has the characteristics of large cooling capacity and fast cooling speed.
3、 Advantages of Yingpeng Ice Machine:
1: Evaporator: The evaporator of the ice maker adopts a fixed and stationary vertical design, which is an internal scraping ice making device. The evaporator does not move, and the ice knife rotates on the inner wall to scrape the ice. This design reduces wear, has high sealing performance, and effectively prevents refrigerant leakage. We use high-quality 304 stainless steel material and fully automatic fluorine welding technology to comprehensively improve its strength and accuracy.
2: Ice cutter: Spiral roller cutter, with low resistance, low loss, no noise, and uniform ice production.
3: Refrigeration unit: The main components come from countries with advanced refrigeration technology such as the United States, Germany, and Japan.
4: Microcomputer intelligent control: The refrigeration and ice making systems all adopt microcomputer fully automatic control. Alarm information such as water shortage, reverse rotation, full ice, high and low pressure will be displayed on the screen. Effectively preventing abnormal operation and reducing machine damage rate.
5: It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with Class IIB, IIC, temperature group T4 in petroleum, chemical, pharmaceutical, laboratory, storage and other departments. The ice maker adopts integrated explosion-proof technology and is designed with explosion-proof systems according to industrial environmental requirements.
The entire machine adopts ultra weak current technology to isolate intrinsically reliable circuits. After special manufacturing processes and explosion-proof treatment, the design and manufacturing of the product strictly follow the relevant national standards:
GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"
GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "
GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "
GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "
GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
