Product Advantages

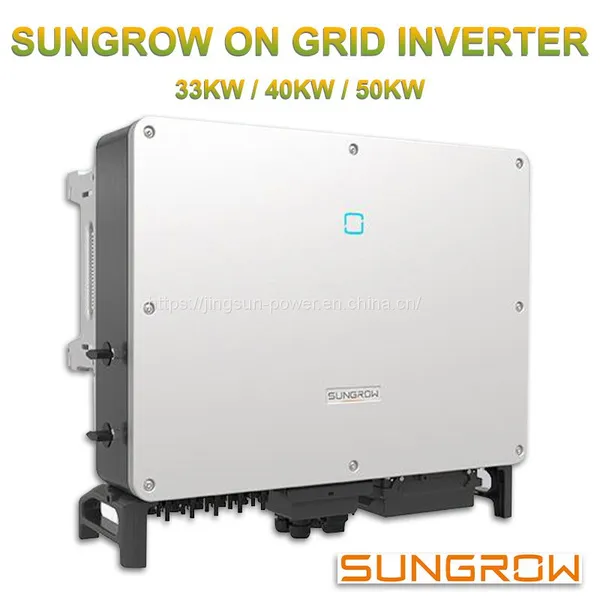

1. Built-in PID recovery function: The SUNGROW SG50CX grid-tied inverter comes equipped with a built-in PID recovery function, which helps to optimize its performance. This advanced feature ensures maximum efficiency and reduces the need for maintenance.
2. Touch-free commissioning and remote firmware upgrade: With the SUNGROW SG50CX inverter, commissioning is a breeze. It is designed for touch-free commissioning and remote firmware upgrade, eliminating the need for physical inspections. This saves time and effort while keeping the system running smoothly.
3. Cable-free communication with optional WLAN: The SG50CX inverter offers cable-free communication with optional WLAN. This allows for easy and efficient monitoring of the system, reducing the hassle associated with wired communication. The optional WLAN feature also makes it possible to remotely manage the system from anywhere in the world.
4. Satisfied global safety and grid code: The SUNGROW SG50CX inverter meets global safety and grid codes. It is certified to ensure compliance with international standards, making it a reliable and safe solution for energy conversion. This means that users can rest assured that their system is operating safely and efficiently, without being subject to any penalties or fines.
5. Positive environmental impact: The SG50CX inverter contributes to a sustainable energy system for a greener future. It facilitates the integration of renewable energy sources into the power grid, reducing our dependence on non-renewable sources of energy. The SG50CX inverter provides a more environmentally friendly solution for energy generation, making it a positive contribution to the global effort to combat climate change.
Technical Data
Type Designation |
SG33CX |
SG40CX |
SG50CX |
Input (DC) | |||
Max. PV Input Voltage |
1100 V |
||
Min. PV Input Voltage |
200V |
||
Start-up Input Voltage |
250V |
||
Nominal PV input voltage |
585 V |
||
MPP Voltage Range |
200 V – 1000 V |
||
No. of Independent MPP Inputs |
3 |
4 |
5 |
No. of PV Strings Per MPPT |
2 |
||
Max. PV Input Current |
3 * 26 A |
4 * 26 A |
5 * 26 A |
Max. DC Short-circuit Current |
3 * 40 A |
4 * 40 A |
5 * 40 A |
Output (AC) | |||
AC output power |
33 kVA @45℃, 400Vac/36.3 kVA |
40 kVA @45 ℃, 400Vac /44 kVA @40℃,400Vac |
50kVA@45℃, 400Vac/55kVA |
33 KVA @ 50℃, 415Vac/36.3 KVA |
40 KVA @ 50℃, 415Vac /44 KVA |
50KVA @ 50℃, 415Vac /55kVA |
|
Max. AC Output Current |
55.2A |
66.9 A |
83.6A |
Nominal AC Voltage |
3 / N / PE, 230 / 400 V |
||
AC Voltage Range |
312V – 528 V |
||
Nominal Grid Frequency |
50 Hz / 45 – 55 Hz |
||
Grid Frequency Range |
60 Hz / 55 – 65 Hz |
||
Harmonic (THD) |
|||
DC Current Injection |
|||
Power Factor At Rated Power |
>0.99 |
||
Adjustable Power Factor |
0.8 leading – 0.8 lagging |
||
Feed-in Phases |
3 |
||
Connection Phases |
3 |
||
Efficiency | |||
Max. Efficiency |
98.60% |
98.60% |
98.70% |
European Efficiency |
98.30% |
98.30% |
98.40% |
