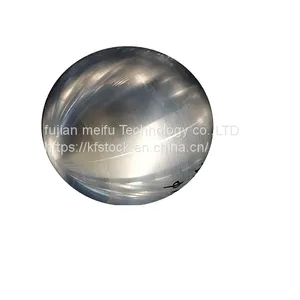

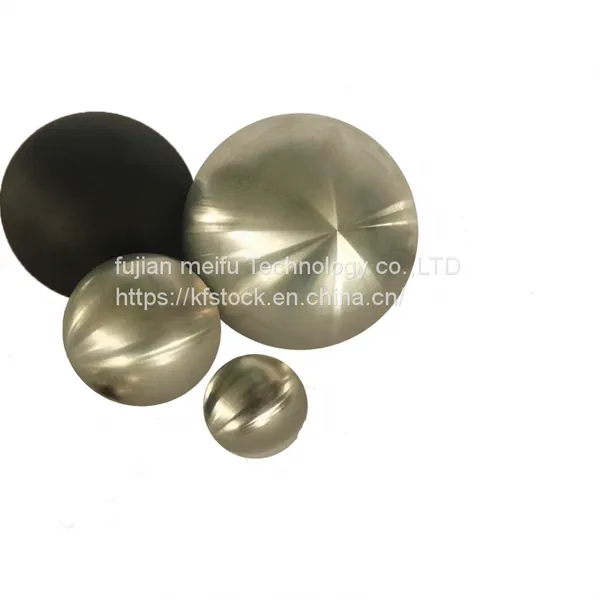

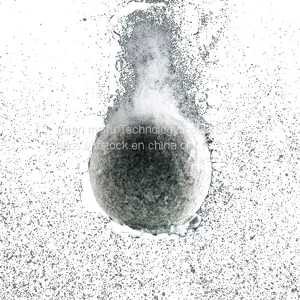

Dissolvable Frac Ball are inserted into wells to build up pressure in the ground.
• This high pressure created causes the fracking of specific identified areas.The balls vary in size, subject to its application.
• The frac balls should withstand high pressure and temperature in order to make a successful fracking process.
• The development of the dissolvable fracking ball has boosted functionality, efficiency of the technology, and saved on time and cost of retrieving them.
• Among the tools used in the fracturing process, frac balls are pumped into the well in order to activate various devices.
• Specifically, the balls are designed to activate tools as well as to isolate portions of a well during multi-stage fracturing operations.
• These two processes allow for the accumulation of pressure in a specific area, thereby enabling fracturing in a target section of the well.
In order to expand the application field, we have carried out different process treatment on the material, which can be processed to meet the different construction needs of the dissolvable fracturing ball.
• Dissolving medium:P≥70 Mpa in simulated petroleum downhole medium.
• Dissolving temperature:30-180ºC
• Dissolving time:customization
ONE-STOP SOLUTION
• A number of excellent production equipment.
• Mature process control.
• Advanced testing equipment.
• Excellent traceability system.
• Professional quality management personnel.
• Produced under the condition of non-oxygen casting and electromagnetic stirring.
• The whole industry chain production mode.
• Quick R&D iterations of new recipes.
• Quick life cycle of production.
• Save your costs.
• Quick delivery from sufficient inventory.
| Grades | Mechanical Properties at Room Temperature | Dissolution Rate | Dissolvable Magnesium Alloy Type | ||||||
| Min. Tensile Strength | Min. Yield Strength | Min. Elongation | Hardness | ||||||
| MPa | Ksi | MPa | Ksi | % | HB | Test Conditions | mg/(cm2*h) | ||
| KF-96 | 380 | 55.2 | 300.0 | 43.5 | 5.0 | 96.0 | 93ºC 3%KCL | 40-65 | High temp./strength |
| KF-98 | 450 | 65.3 | 350.0 | 50.8 | 3.0 | 98.0 | 93ºC 3%KCL | 30-60 | |
KF-982 |
450 | 65.3 | 350.0 | 50.8 | 3.0 | 98.0 | 93ºC 3%KCL | 15-23 | |
| KF-989 | 320 | 46.4 | 250.0 | 36.3 | 5.0 | 98.0 | 90ºC 3%KCL | 100-120 | |
| KF-916 | 380 | 55.2 | 260.0 | 37.7 | 3.0 | 101.0 | 50ºC 0.84%KCL | 20-35 | |
| 380 | 55.2 | 280.0 | 40.6 | 3.0 | 101.0 | 93ºC 3%KCL | 90-130 | ||
| KF-55 | 280 | 40.6 | 250.0 | 36.3 | 5.0 | 70.0 | 93ºC 3%KCL | 90-110 | |
| KF-88 | 120 | 17.4 | 80.0 | 11.6 | 35.0 | 65.0 | 93ºC 3%KCL | 200-400 | Low temp./ultra-high ductility |
| MF-105 | 250 | 36.3 | 180.0 | 26.1 | 12.0 | 75.0 | 93ºC 3%KCL | 30-55 | High temp./ductility |
| KF-85 | 250 | 36.3 | 180.0 | 26.1 | 12.0 | 64.0 | 93ºC 3%KCL | 40-70 | |
| KF-75 | 310 | 45.0 | 220.0 | 31.9 | 5.0 | 75.0 | 93ºC 3%KCL | 55-80 | |
| 50ºC 0.84%KCL | 15-25 | ||||||||
| KF-73 | 310 | 45.0 | 220.0 | 31.9 | 5.0 | 70.0 | 93ºC 3%KCL | 40-70 | |
| KF-741 | 300 | 43.5 | 250.0 | 36.3 | 6.0 | 70.0 | 93ºC 3%KCL | 130-220 | |
| 50ºC 0.84%KCL | 5-30 | ||||||||
| KF-63 | 210 | 30.5 | 150.0 | 21.8 | 15.0 | 62.0 | 93ºC 3%KCL | 70-100 | High temp./ultra-high ductility |
| KF-631 | 150 | 21.8 | 90.0 | 13.1 | 20.0 | 58.0 | 93ºC 3%KCL | 45-75 | |
| KF-613 | 150 | 21.8 | 90.0 | 13.1 | 24.0 | 55.0 | 93ºC 3%KCL | 20-55 | |
| KF-34 | 310 | 45.0 | 220.0 | 31.9 | 5.0 | 75.0 | 93ºC 3%KCL | 200-400 | Regular |
| 50ºC 0.84%KCL | 75-115 | ||||||||
| 50ºC 0.1%KCL | 40-60 | ||||||||
| KF-74 | 290 | 42.1 | 250.0 | 36.3 | 6.0 | 70.0 | 93ºC 3%KCL | 200-400 | |
| 50ºC 0.84%KCL | 80-110 | ||||||||
| 50ºC 0.1%KCL | 40-70 | ||||||||
| KF-43 | 220 | 31.9 | 180.0 | 26.1 | 8.0 | 64.0 | 93ºC 3%KCL | 120-160 | |
| 50ºC 0.84%KCL | 25-65 | ||||||||
| 50ºC 0.1%KCL | 5-30 | ||||||||
| KF-23 | 240 | 34.8 | 200.0 | 29.0 | 5.0 | 64.0 | 93ºC 3%KCL | 300-450 | |
| 50ºC 0.84%KCL | 50-120 | ||||||||
| 50ºC 0.1%KCL | 30-70 | ||||||||
| KF-13 | 240 | 34.8 | 200.0 | 29.0 | 5.0 | 55.0 | 93ºC 3%KCL | 500-800 | |
| 50ºC 0.84%KCL | 90-180 | ||||||||
| 50ºC 0.1%KCL | 40-80 | ||||||||
| KF-14 | 240 | 34.8 | 200.0 | 29.0 | 5.0 | 55.0 | 93ºC 3%KCL | 600-800 | |
| 50ºC 0.84%KCL | 120-300 | ||||||||
| 50ºC 0.1%KCL | 45-100 | ||||||||
| KF-15 | 240 | 34.8 | 200.0 | 29.0 | 5.0 | 55.0 | 93ºC 3%KCL | 700-1000 | |
| 50ºC 0.84%KCL | 150-350 | ||||||||
| 50ºC 0.1%KCL | 55-110 | ||||||||
