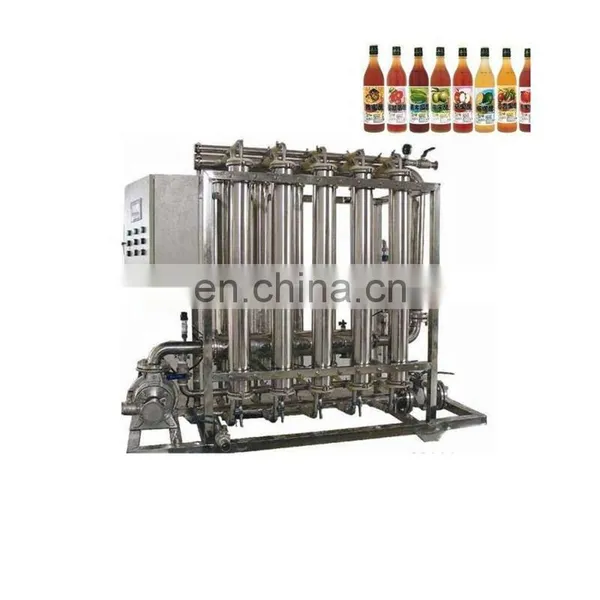

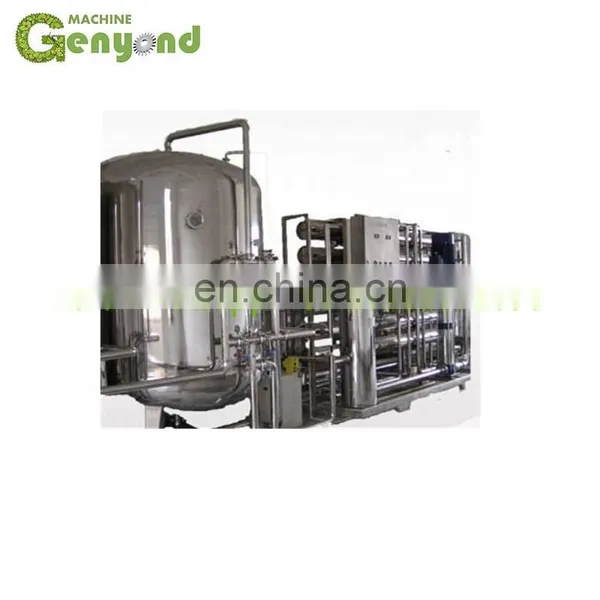

Help CenterShanghai Factory Fruit Wine Apple Cider Vinegar Liquid State Fermentation Tank Machine Processing Plant Production Line
Related Products
-
Blueberry Vinegar Liquid Fermentation Process LineNegotiableMOQ: 1 -
CHINA Factory Coffee Roast Machine Baking Machine Coffee ExtractorNegotiableMOQ: 1
-
CHINA Factory Coffee Bean Baking Machine Deep Processing of Coffee BeansNegotiableMOQ: 1
-
CHINA Factory Coffee Roast Machine Baking Machine Coffee ExtractorNegotiableMOQ: 1
-
Market Price Coffee Roast Machine Coffee Baking Machine Coffee Processing MachineNegotiableMOQ: 1
Fruit vinegar liquid fermentation process line
Process: juice(choose by client)--enzyme alcohol fermentation -- --mixing - acetic acid fermentation-- --vinegar machine----mixing----filtration sterilization(choose by client) - packing(choose by client).

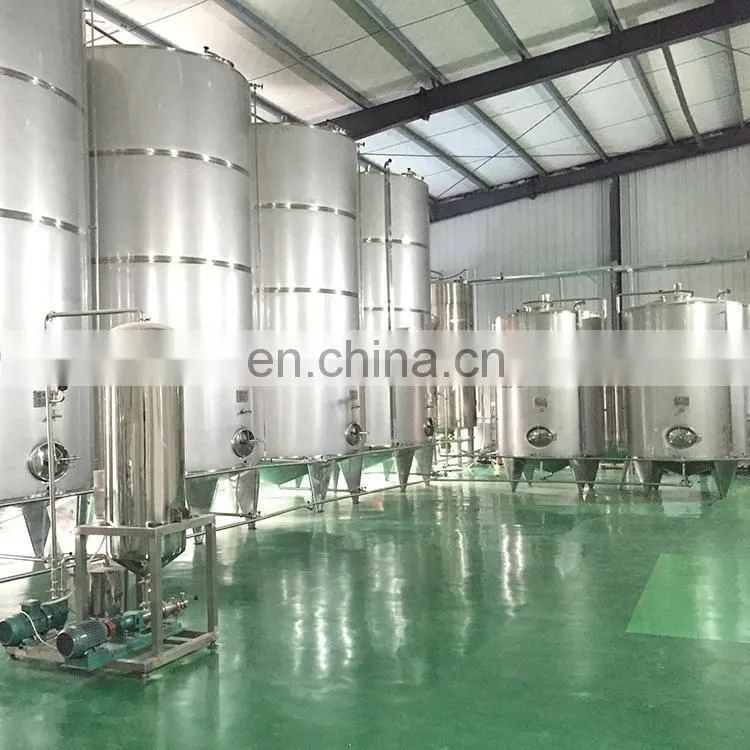

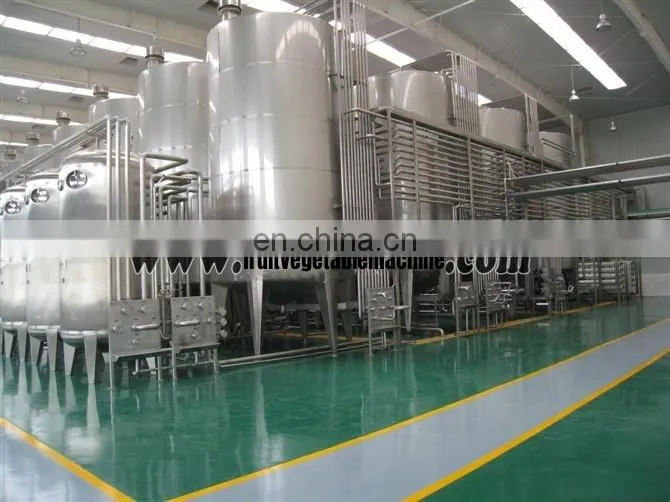

- Tanks system : rotating axis and horizontal tanks , SUS316L material is used, and it is processed by polishing inside and outside. Designed pressure is 0.25Mpa, operating pressure is 0.01-0.07Mpa, heat is transmit- ted by inner bushing with big vaccination, out-off-band jacket, special security ventilation, exhaust and sample port.
- Mixing system : mechanical agitation, double propellers blades; speed control: timed positive --negative operation , 0-99 minutes adjustable.
- Temperature control : Cooling water +5°C. Pt--100 temperature and electrode, fuzzy PID intelligent controller.
- Ventilation flow : 0--1VVM (rotermeter.) 0.2μm asepsis air filter, tank pressure: 0-0.3Mpa, pressure gauge indication, manually operation adjustment.
- Regnant vaccination and blending : Uniform vaccination by regnant tinder and flame. Stable and even fermentation happens with blending material in the tank and crushing system in the biochemical reaction process
- Disinfection and smoked grains : Steam is accepted externally and manually controlled, mature vinegar grains is ventilated with steam directly in fermentation tank with special mixing system in order to reach regnant disinfection and smoked grains.
•♦C2H5OH+[O]→CH3CHO+H2O •♦ CH3CHO+H2O→CH3CH(OH)2 •♦ CH3CH(OH)2+[O]→CH3COOH+H2O
|
Item
|
300T/year |
600T/year |
1000T/year |
2000T/year |
3000T/year |
|
sugaring equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Enzymolysis equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Alcohol fermentation equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Alcohol fermentation equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Vinegar equipment |
FVPL-1000 |
FVPL-1000 |
FVPL-1000 |
FVPL-1000 |
FVPL-1000 |
|

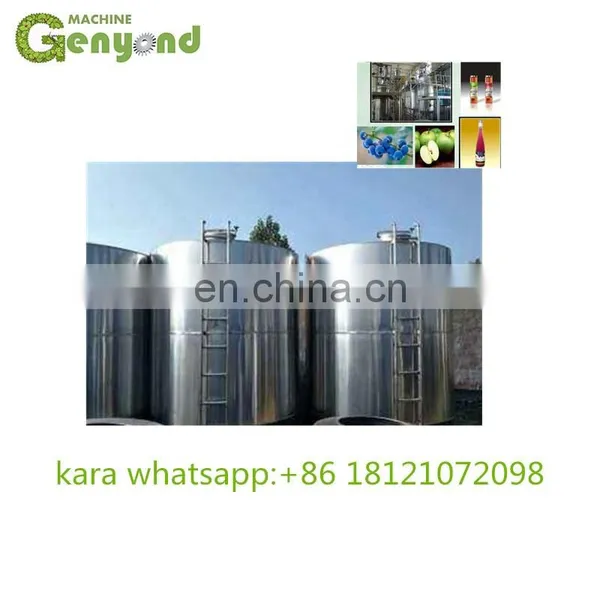

storage tank |
5m3 |
5m3 |
5m3 |
6.5m3 |
10m3 |
Kara Whatsapp:+86 18121072098
Kara Whatsapp:+86 18121072098
Kara Whatsapp:+86 18121072098
GENYOND MACHINERY INDUSTRIAL GROUP
It has 6 factories in China for food machine and packing machine.
Shanghai Genyond Technology Co Ltd; Zhangjiagang Genyond Machinery Co Ltd
Shanghai Jou Yu industrial Co Ltd; Shanghai Keyfood Machinery Co Ltd
Sino topone machinery; Nantong Yihai Machinery; Kunshan Kpack Machinery
Our products have been exported to more than 160 countries with Annual sales reaching 80 millions in 2022 and it raises by yearly average 10% above.
Genyond machine has more than 100 engineers for the installation of oversea projects.
You just need to give us your idea on final product to be made, processing capacity, way of packing, we will make the proposals for your checking. You can also give us your budget, we can also design a line to meet your budget accordingly.
A satisfying project will be given; A long-term cooperation will come.
