Instrument Introduction
Instrument Overview:
This Fourier Transform Infrared (FTIR) Spectrometer is a cost-effective and high-performance model, meticulously developed by our company with advanced foreign technology. It boasts user-friendly operation, high stability, and ease of maintenance. Widely applicable in industries such as pharmaceuticals, chemicals, petroleum, food, jewelry, polymers, semiconductors, and materials science, this instrument offers strong expandability, supporting various configurations including conventional transmission, diffuse reflection, attenuated total reflection, and non-contact external reflection. It is an ideal analytical testing equipment for universities, research institutions, and industrial applications alike.
Product Features:
Intelligent Operation Software:
Smart human-machine interaction design, enabling quick proficiency even for first-time users of FTIR software.
Selectable laser frequency calibration modes, compliant with both national standards and metrological specifications.
Unique data acquisition preview and full-process monitoring, providing a clear view of the collection process.
Comprehensive library of professional infrared spectra, including customizable options for user-defined spectra. The library encompasses: National Pharmacopoeia Spectra, National Veterinary Pharmacopoeia Spectra, Rubber Spectra, Gas Spectra, Polymer Spectra, Protein and Amino Acid Spectra, Judicial Spectra (for hazardous materials, chemicals, pharmaceuticals, etc.), Inorganic Spectra, Organic Spectra, Solvent Spectra, Food Additive Spectra, Flavor and Fragrance Spectra, Paint Spectra, and more.
Reliable Optical System:
Reliable sealed interferometer design, featuring a moisture-resistant beamsplitter and a reusable desiccant box with five times the moisture resistance of similar products. A visual color-change window facilitates monitoring and replacement of molecular sieves.
High-precision diamond lathe-machined optical components ensure exceptional consistency and stability.
Pin-to-pin alignment installation, eliminating the need for adjustments.
High Stability:
The interferometer employs imported gold-coated corner-cube mirrors for superior reflectivity and angular accuracy.
High-performance, long-life ceramic light source with up to 80% luminous efficiency.
High-sensitivity imported DLATGS detector.
User-Friendly Design:
Spacious sample chamber for easy integration of various infrared accessories.
Sliding sample chamber door minimizes external air interference during experiments.
Compact and lightweight design.
Modular construction simplifies maintenance.
Specifications:
Spectral Range: 7800～350 cm-1
Resolution: Better than 1.0 cm-1
100%τ Line Tilt Range: Better than 0.5τ% (2200~1900cm-1)
Signal-to-Noise Ratio: 45000:1 (P-P, 4cm-1, 1-minute scan)
Beamsplitter: KBr Substrate Coated with Germanium (Imported)
Light Source: High-energy, High-efficiency, Long-life Ceramic Light Source (Imported)
Interferometer: 30-degree Angle of Incidence Michelson Interferometer
Detector: High-sensitivity DLATGS Detector with Moisture-resistant Film (Imported)
Dimensions: 450mm x 350mm x 235mm
Weight: 14.2 Kg
Data Transmission Interface: USB 2.0
Supported Systems: Windows XP, Windows Vista, Windows 7, Windows 8，Windows 10

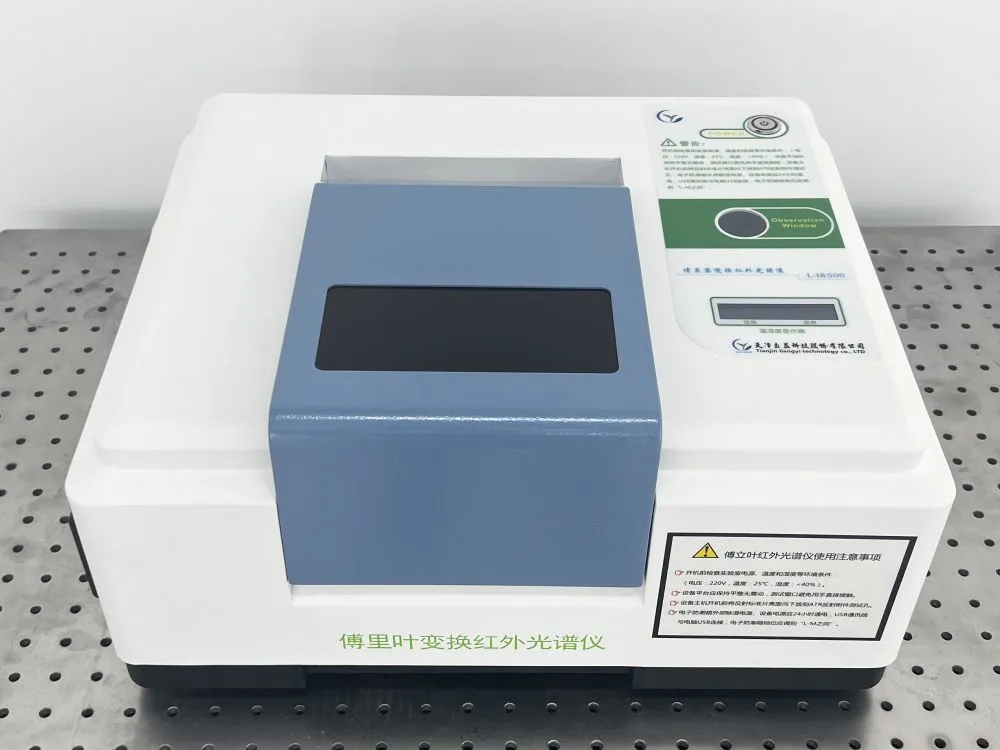

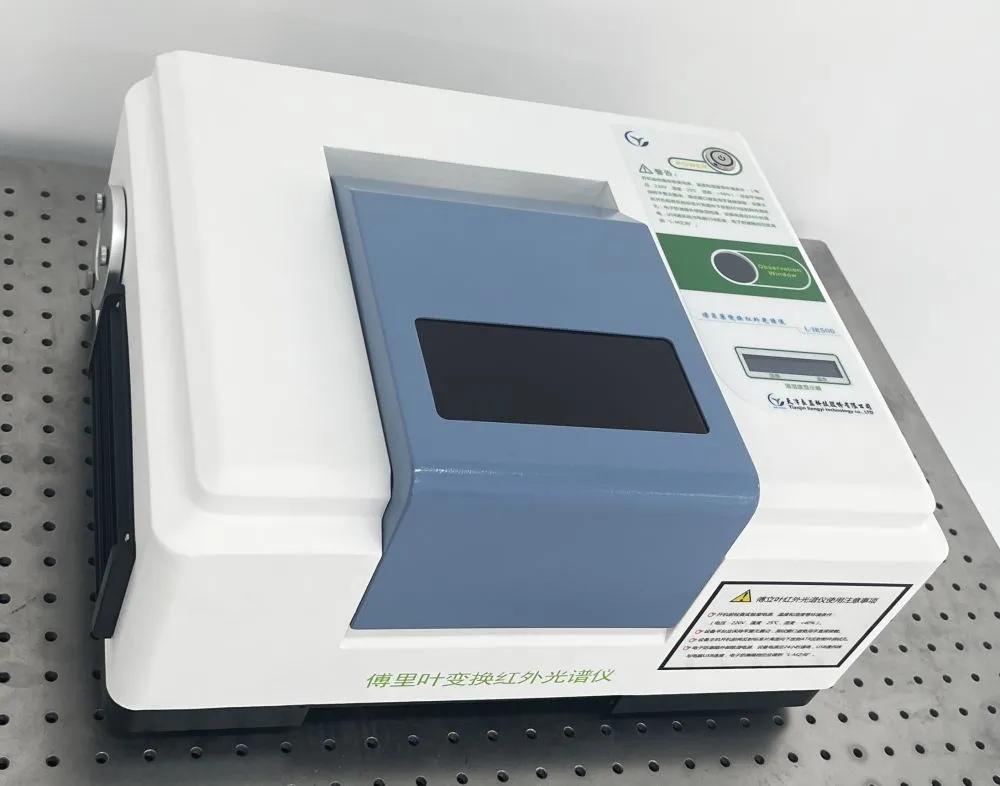

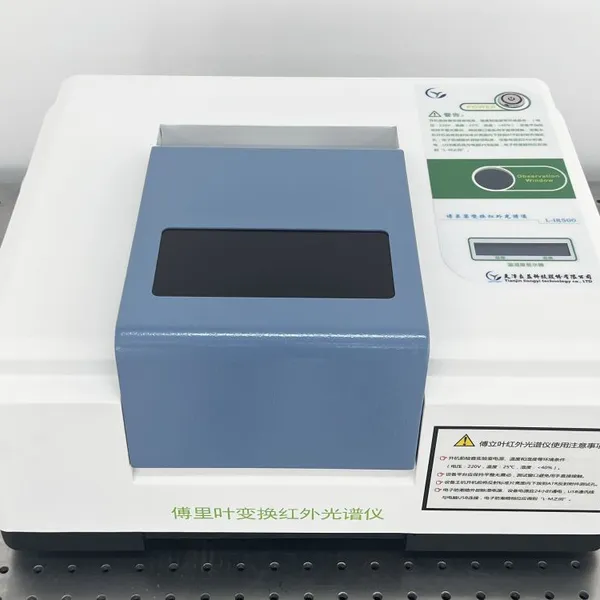

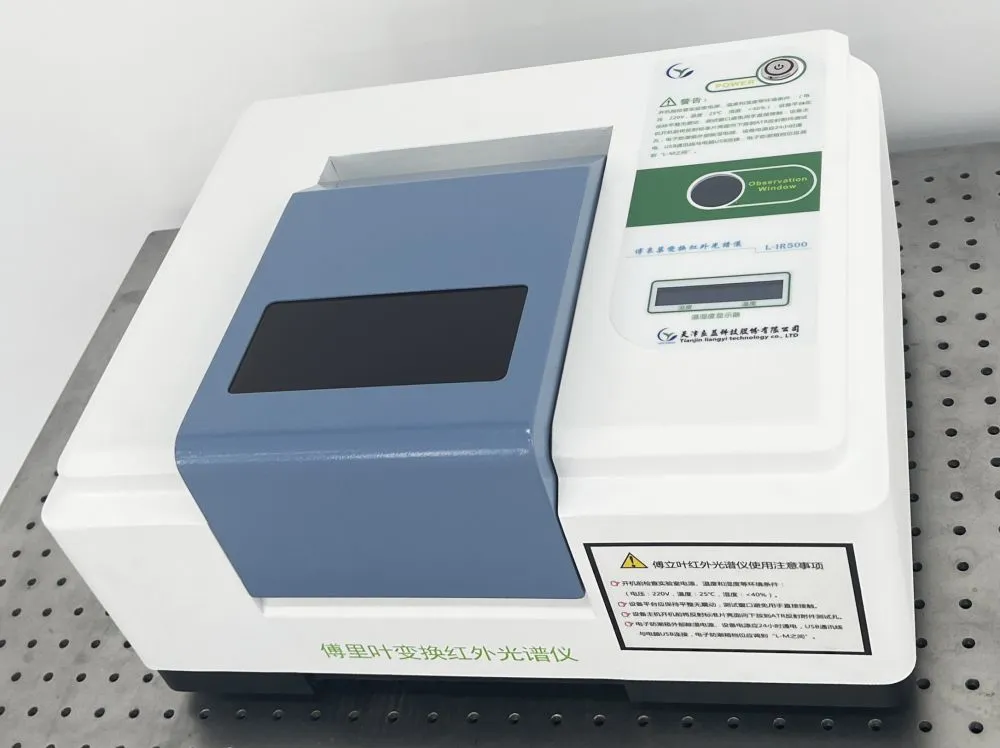

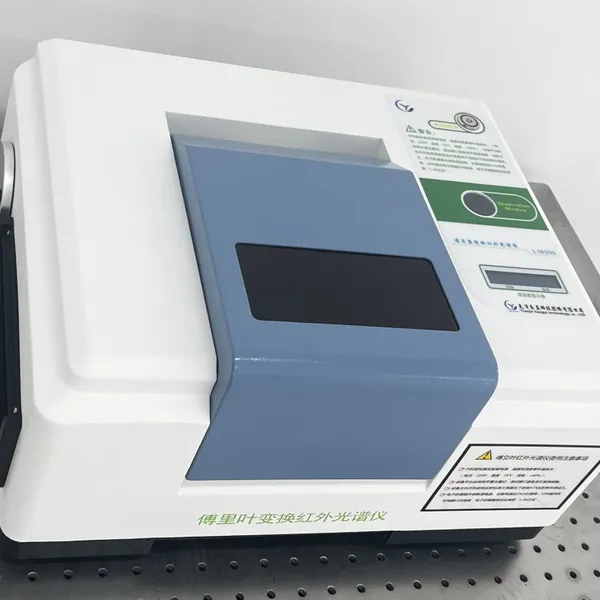

product picture：
