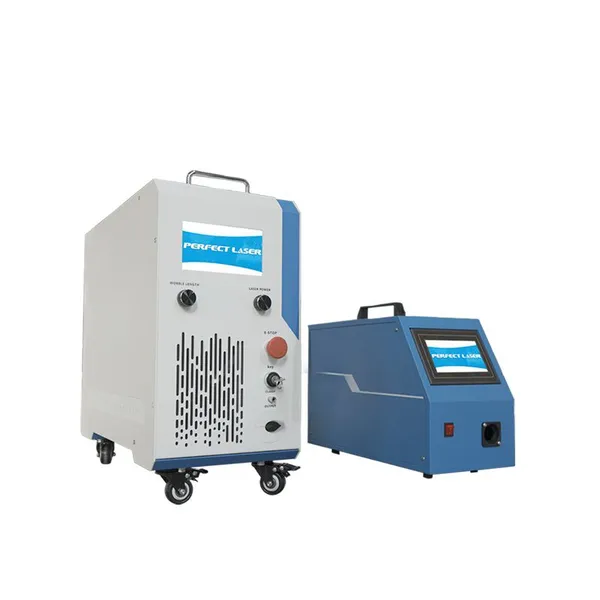

Help Center1200w Portable Handheld Metal Laser Welding / Cutting / Cleaning 3 in 1 Industrial Small Fiber Laser Welding Machine
Related Products
-
200W High Speed Precision Scanning Plastic Laser Welding Machine for Small Flat Plastic PartsUS$ 26900 - 27500MOQ: 1 Unit -
3 Axis Automatic CCD Large Format Fiber Laser Beam Li-battery Soldering Welding MachineUS$ 24500 - 24900MOQ: 1 Unit
-
2000w Multi-Function Optical Fiber Laser Welding MachineUS$ 67400 - 67900MOQ: 1 Unit
-
Six-axis Robotic Arm Fiber Laser Welding MachineUS$ 38600 - 39200MOQ: 1 Unit
-
150W Jewelry Gold YAG Laser Spot Welding MachineUS$ 3300 - 3600MOQ: 1 Unit
Features:
1.The handheld laser welder has professional laser welding system, with comfortable graphics, simple and clear operation, integrating welding, cleaning, welding seam cleaning, and cutting functions into one;
2. Flexible and portable, weighing only 45 kilograms. Mobile operation, electric vehicles can be used. The armored cable of the welding gun can be dragged, making the movement operation more convenient;
3. The handheld laser welder adopts intelligent touch screen and intelligent operating system, it only requires half an hour of training to master welding operations;
4. The weight of the welding gun is 0.7kg, and the maximum welding thickness is 3mm. Lightweight and portable, single person controllable, truly achieving one person portable handheld laser welding machine;
5.The handheld laser welder is suitable for metal welding of 0.5mm-3mm,such as overlap welding, spot welding, external corner welding, internal corner welding, suitable for various welding processes;
6. Equipped with a wire feeder, welding wires can be selected according to the size of the weld seam. The weld seam is beautiful and the welding speed is fast.
Technical data:
Product name |
Fiber laser welding machine |
Model |
PE-W1200 |
Laser power |
1200W(Can be customized) |
Wire feeding diameter |
Standard configuration 0.8-1.6mm |
Net weight of wire feeder |
13.2KG |
Weld seam splicing requirements |
Self fusion welding is used for plate thickness ≤ 15% and ≤ 0.5mm, with wire filling welding ≤ 1.2mm |
Net weight of equipment |
45KG |
Equipment size (including casters) |
600X275X556mm |
Welding thickness |
≤ 3.5mm |
The total length of the welding gun wire |
10m (the length of the wire feeding tube is 5m) |
Welding gun weight |
≤ 0.7KG |
The total power of the equipment |
4.5KW |
System languages |
Chinese, English, Korean, Russian, Japanese, German, French, Spanish, Portuguese, Turkish, Greek, Czech, Slovak, Polish, Thai, Vietnamese, Romanian, Italian, etc. |
Voltage/frequency |
Standard single-phase 220V 50/60HZ |
Laser | |
Center wavelength (nm) |
1080±10 |
Operating mode |
Continuous/Modulated |
Operating temperature |
-10—45℃ |
Power stability |
±2 |
Output connector |
QBH |
Core diameter |
25um |
Output fiber length m |
10 |
Input power (V AC) |
Single item 220±10%V AC |
Power adjustment range % |
10-100 |
Beam quality BPP |
≤1.1 |
Cooling method |
Air cooling |
Laser weight |
＜24KG |
Automatic wire feeder | |
Placement environment |
Smooth, vibration free and impact free |
Working environment temperature (℃) |
-10~40 |
Working environment humidity (%) |
＜70 |
Maximum supported welding wire weight |
20KG |
Maximum supported wire diameter |
2.0mm |
Supply voltage (V) |
220±10％V AC 50/60HZ |
