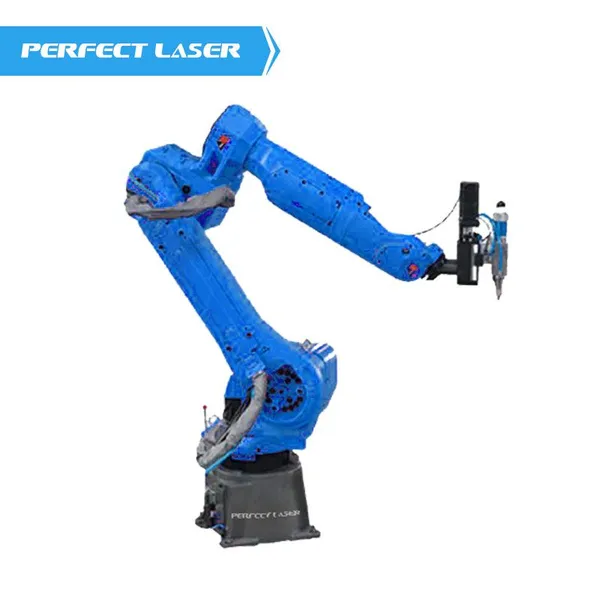

Help CenterSix-axis Robotic Arm Fiber Laser Welding Machine
Related Products
-
150W Jewelry Gold YAG Laser Spot Welding MachineUS$ 3300 - 3600MOQ: 1 Unit -
200W Jewelry Gold YAG Laser Spot Welding MachineUS$ 3800 - 4200MOQ: 1 Unit
-
600W 3d SS Aluminum Advertising Logo Channel Letter YAG Laser WelderUS$ 11900 - 12500MOQ: 1 Unit
-
500W Table and Handheld 3d SS Aluminum Advertising Logo Channel Letter YAG Laser WelderUS$ 9980 - 10500MOQ: 1 Unit
-
220V 60HZ 300W Industrial Mould Repair YAG Laser Welding MachineUS$ 5600 - 5900MOQ: 1 Unit
Features:
1. High speed: the use of lightweight devices, high-power micro-motor, to improve the maximum speed of the robotic welding machine, thereby shortening the cycle time and improve production efficiency.
2. High precision: This robotic welding machine uses high-quality, high-performance harmonic reducer, so that in the running of repeated positioning, to ensure accuracy.
3. Good sealing: Each axis of the robotic welding machine is completely sealed, suitable for dust, oil, harmful gas liquid and other high sealing requirements of the harsh environment.
4. Improved safety measures: multi-function protection, to prevent the robotic arm welding machine in the course of the use of overload, over temperature, over-voltage situation.
5. Low consumption: own loss of this robotic welding machine is much lower than other machines on the market, simple maintenance, save cost.
6. Low noise: update noise reduction technology, performance unchanged, lower noise.
Technical data:
Model |
PE-W6-robotic arm welding machine |
|||
Machine configuration system |
Kalop intelligent six axis system |
|||
Multi-axis operation of the body configuration |
Yaskawa servo motor |
|||
Reducer |
Japan HD and RV reducer |
|||
Weight |
20KG |
|||
Airframe sheet metal |
Full dust-proof closed cover |
|||
Configuration |
Working table |
|||
Control |
PLC dedicated control integrated system |
|||
Working radius |
2000mm |
|||
Positioning accuracy / 300mm |
0.1mm |
|||
Others |
Maximum speed |
|||
(Degrees / sec) Wrist Carrying Capacity Quality Body Color Installation Protection Level Control Cabinet | ||||
Axis |
Movement range |
Maximum speed |
||
JT1 |
±180° |
190°/s |
||
JT2 |
+155° ~ -105°205°/s |
|||
JT3 |
+150° ~ -163°210°/s |
|||
JT4 |
±270° |
400°/s |
||
JT5 |
±145° |
360°/s |
||
JT6 |
±360° |
610°/s |
||
Axis |
Maximum torque |
Inertia moment |
||
JT4 |
45 N•m |
0.9 kg•m2 |
||
JT5 |
45 N•m |
0.9 kg•m2 |
||
JT6 |
29 N•m |
0.3 kg•m2 |
||
230 kg (excluding optional equipment) | ||||
Ground, suspension | ||||
Wrist: IP67 Base: IP65 *the same | ||||
Model for North America |
E01 |
|||
Model for Europe |
E01 |
|||
Model for Japan & Asia |
E01 |
|||
