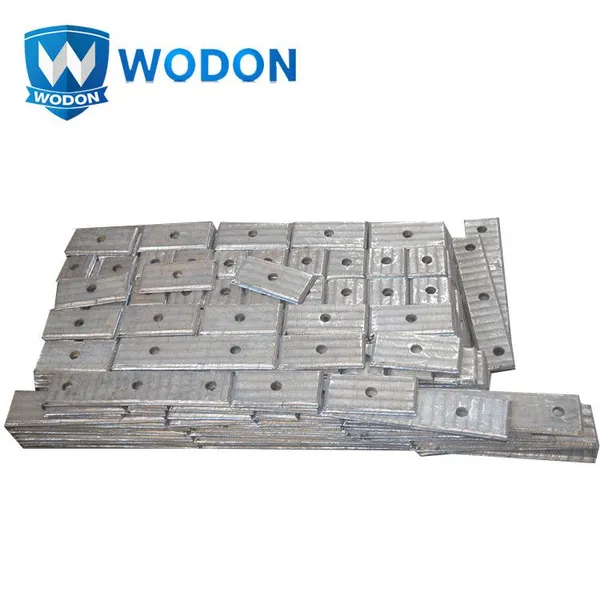

Chute liner heat resistant standard hardened wear steel plate
wear plate
wear plate
wear plate
Wodon wear plates are manufactured by welding one or multiple wear resistant layers on a medium or low carbon steel base plate. The overlay alloy has a high amount of chromium carbide hard particles.
|
Product Name |
Chute liner heat resistant standard hardened wear steel plate |
|
Brand |
Wodon. |
|
Base Plate |
Q235/Q345. |
|
Hardfacing layer |
High chromium high carbide overlay. |
|
Chemical Composition |
C(%): 3.0-5.0 ,Cr(%): 25-40. |
|
Microstructure |
The carbide (Cr7C3) volume fraction on the microstructure is above 50%. |
|
Hardness |
HRC58-65. |
|
Surface Treatment |
Hardfacing,clading,coated. |
|
Technique |
Hardfacing,open arc welding,submerged arc welding. |
|
Wear Resistance |
High wear resistance,30 times higher than low carbon steel and 12 times than heat treated steel. |
|
Impact Resistance |
Medium. |
|
Flatness tolerance |
±3mm/m. |
|
Thickness tolerance |
Uniform overlay thickness, with tolerance within 0-0.5mm. |
|
Main Thicknesses |
3+3,4+4, 5+5 6+4,6+5,6+6,6+8 8+4,8+5,8+6,8+7,8+8 10+4,10+5,10+6,10+7,10+8,10+9,10+10,10+20 12+4,12+5,12+6,12+7,12+8,12+10,12+11,12+12 14+6,14+8,14+10,16+6,16+8,16+10 18+6,18+8,18+10,20+5,20+6,20+8,20+10,20+20,30+10,40+10 Customized. |
|
Plate Size |
Open arc welding wear plate:1400*3400mm Submerged arc welding wear plate:1400*3000mm, 1400*3500mm, 2100*3500mm. Customized. |
|
Place of Origin |
China. |
|
Application |
Mining,Steel,Cement,Power,Port,etc. |
Wodon Wear Plate Others
Factory
Welding Wire Workshop
wear plate workshop
Labratory
welding wire warehouse
Wear plate warehouse
Packaging: Steel pallet, Non fumigation pallets,Customized
Packaging Size: 1.4*3.4, 1.4*.3.0, 1.4*3.5, 2.1*3.5, customized.
Delivery Detail: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
wear plate packaging
Our company has a professional after-sales service team, with many years of experience not only on hardfacing products and applications, but also on the operation of application equipment. We are able to quickly solve customer’s problems.If there are any quality problems, the responsible person will provide reasonable solutions within 12 hours after being notified.
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance against copy of BL.
