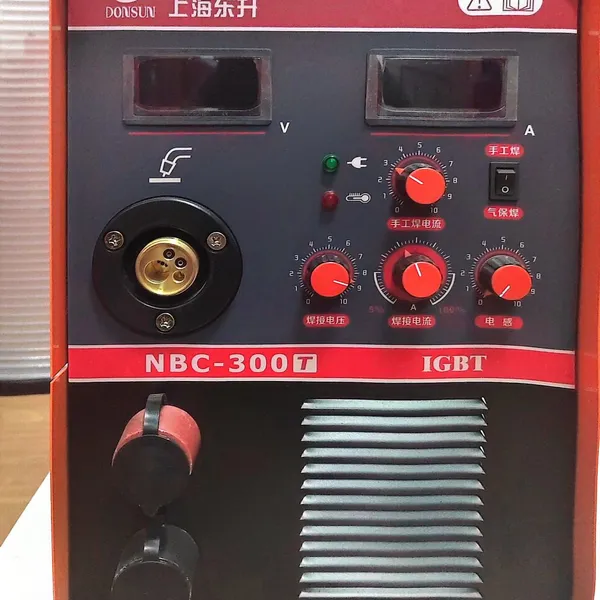

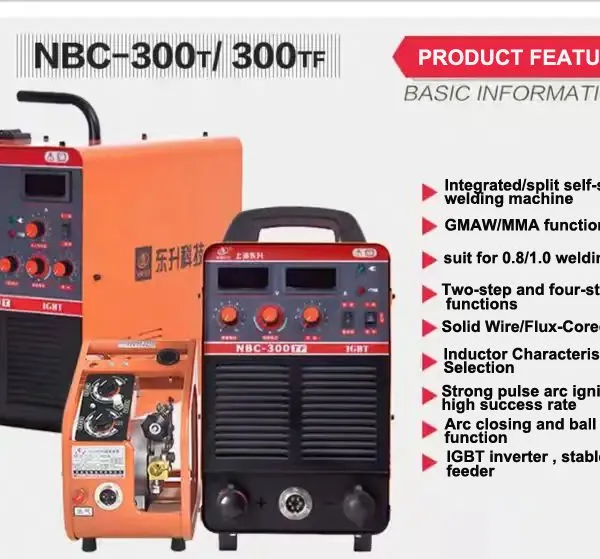

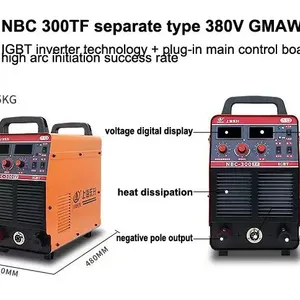

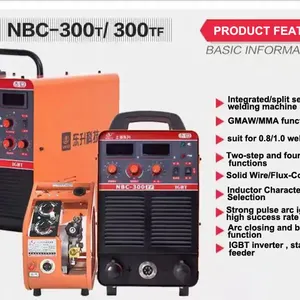

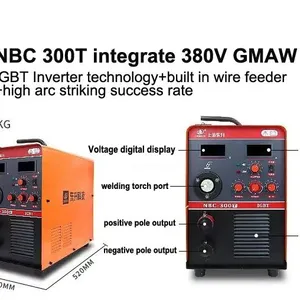

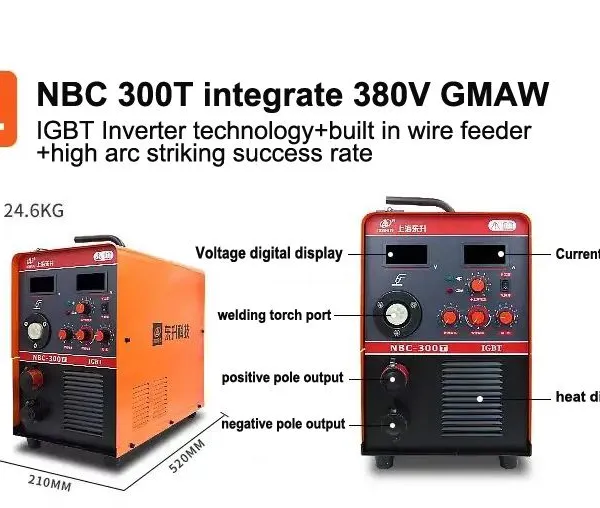

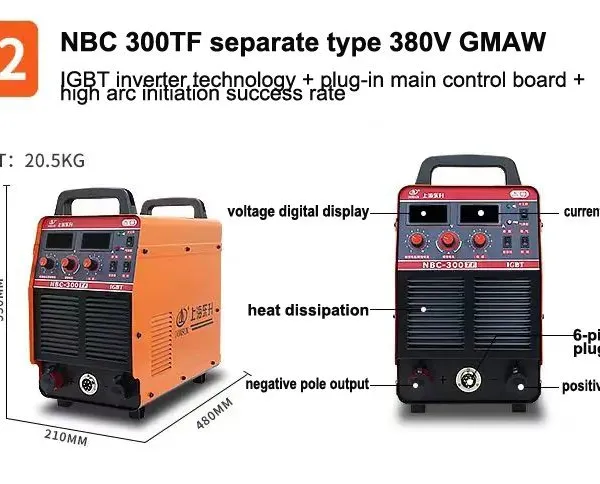

MIG-300T/300TF series
Multifunctional, efficient welding
·IGBT technology,the core adopts advanced IGBT Inverter device.
-Infinite Voltage Control with optimized starting performance.
· Inductance Control for arc stability and spatter control.
·Digital Voltage and Amperag Meters e;Preview and Hold capability
Quick Change Polarity - Simple quick change polarity (no tools
required) from the front of the power Source.
·Thermal overload protectlon helps prevent machlne damage.
·Energy Saving- Compared with the traditional SAW machlne more
efficient.
Inverter technology
Intelligent air cooling
Over load protection
ARC/MIG dual function
MIG-300T |
MIG-300TF |
|
Rated input voltage(V) |
AC380V±15% 3P |
AC380V±15% 3P |
Rated input power(KVA) |
10.4 |
10.4 |
Rated input current (A) |
12.7 |
12.7 |
Duty Cycles(%) |
60 |
60 |
Welding current （A） |
50-300 |
50-300 |
Welding voltage (V) |
14-27 |
14-27 |
No Load voltage(V) |
58 |
58 |
Efficiency (5) |
≥89 |
|
Power factor (ŋ) |
≥0.87 |
≥0.87 |
Wire Diameter(mm) |
Ø0.8- Ø1.0 |
Ø0.8- Ø1.0 |
Gas Flow(L/min) |
15-20 |
|
Weight(KG) |
24.6 |
20.5 |
Dimension(mm) |
520*210*510 |
480*210*550 |
