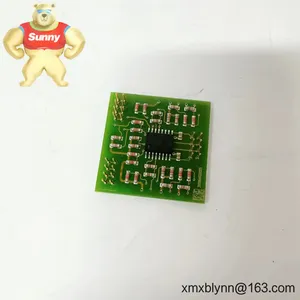

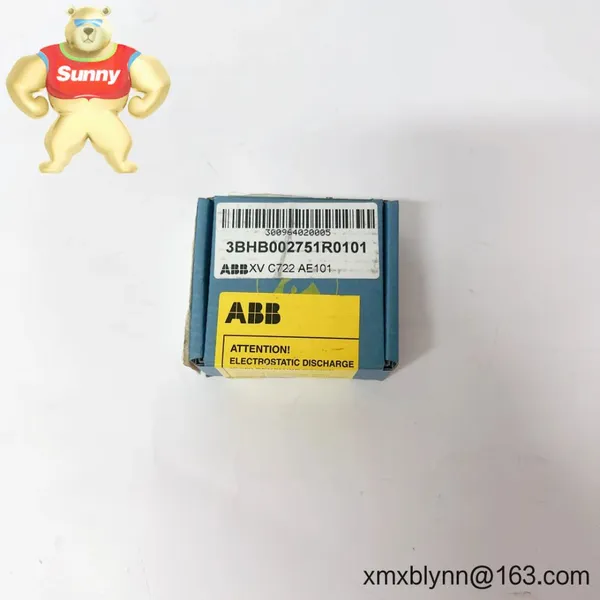

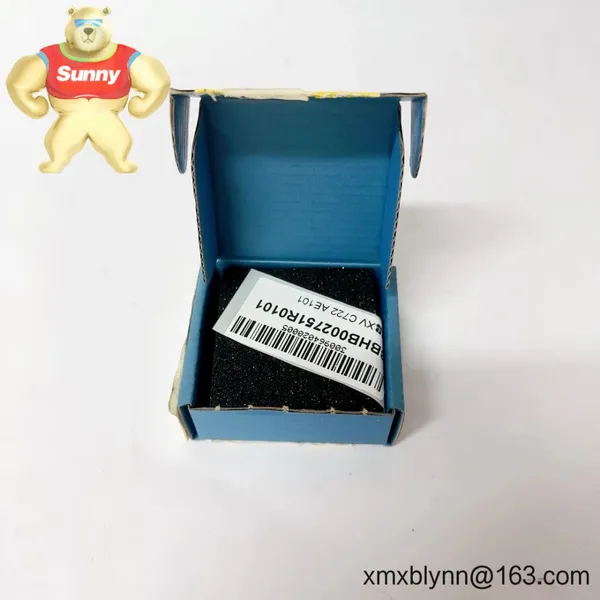

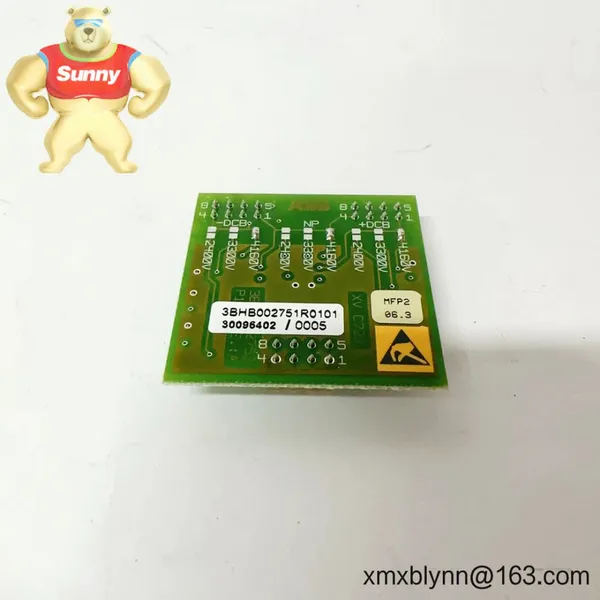

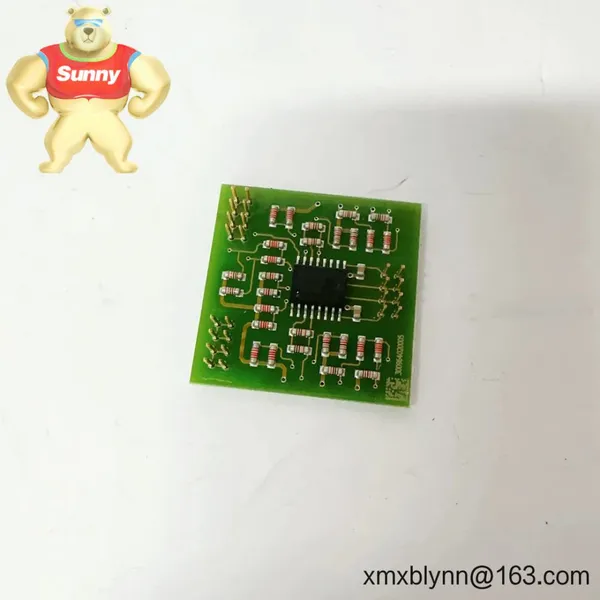

Help CenterABB XVC722AE101 (3BHB002751R0101) Control Board for ACS800 Drives
Related Products
-
ABB UFC765AE102 (3BHE003604R0102) – High-reliability Controller/communication Board for ABB Symphony/Advant Harmony DCSUS$ 4216.00MOQ: 1 Blade -
ABB PM592-ETH (1SAP150200R0271) – High‑performance AC500 PLC CPU With Integrated Ethernet for Fast Control and Easy NetworkingUS$ 3376.00MOQ: 1 Pallet
-
ABB RMU610 (2VAA008425R1) – Remote Monitoring/Gateway Unit for Industrial AssetsUS$ 4200.00MOQ: 1 Unit
-
ABB UCD208A101 (3BHE020018R0101) – Control Board Module for ABB Power Electronics and Drive SystemsUS$ 2351.00MOQ: 1 Pallet
-
ABB PM591-ETH (1SAP150100R0270) – AC500 PLC CPU With Integrated Ethernet for Reliable Mid-range ControlUS$ 1300.00MOQ: 1 Pallet
Warranty: 365 days
Lead time: 1 week for in‑stock items; no more than one month at the latest
Payment: 50% advance payment; full payment prior to delivery
Express delivery: FedEx, UPS, DHL
Packing: ESD-safe packaging with moisture protection, suitable for international air freight
Support: Pre‑shipment photo check and basic compatibility guidance upon request
OEM spare part for ABB drives – Ensures mechanical fit and electrical compatibility with ABB drive frames (commonly ACS800).
Stable control and protection logic – Coordinates interlocks, fault detection, and measured feedback for reliable drive operation.
Fiber‑optic power section interface – Typically handles fiber links to IGBT/power modules for noise‑immune control.
Backplane and ribbon connectivity – Designed to plug into the drive’s internal backplane and auxiliary boards.
Service-friendly design – Field‑replaceable with standard ESD tools; no special jigs required in most cases.
RoHS‑aligned component selection – Appears to comply with restricted substances norms for modern service parts.
| Brand / Model | ABB XVC722AE101 (3BHB002751R0101) |
| Product Type | Drive control board (OEM replacement module) |
| HS Code | 850490 (Parts of static converters) |
| Power Requirements | Typically 24 VDC supplied by the drive backplane; power consumption |
| Operating Temperature | 0 to +55°C (non‑condensing environment recommended) |
| Dimensions & Weight | Approx. 220 × 120 × 30 mm; ~0.35 kg (board only) |
| Signal Input/Output Types | Internal low‑voltage logic, measurement feedback channels, and fiber‑optic control links to power module |
| Communication Interfaces | Internal backplane connectors and fiber‑optic interfaces; external fieldbus handled by the host drive |
| Installation Method | Plug‑in board mounted inside the drive; secured by screws/standoffs; ESD‑safe handling required |
| Typical Compatibility | ABB ACS800 series (specific frames and firmware revisions; confirm by drive type code and serial) |
Used as a service replacement in ABB industrial drives across:
Pump and fan systems in water & wastewater plants
Conveyors, mixers, and crushers in mining and aggregates
Web handling, winders, and extruders in plastics and paper
Compressors and process drives in oil & gas and chemicals
Material handling, cranes, and mill drives in metals
One thing I appreciate is how quickly maintenance teams can swap this board and restore production. A customer recently reported intermittent “internal comms fault” on an ACS800; after replacing the XVC722AE101 and aligning parameters to a backup file, the drive ran clean for weeks without a single nuisance trip.
Reliability: OEM board with proven stability in harsh industrial environments.
Compatibility: Mechanical and electrical fit for the intended ABB frames, reducing retrofit risks.
Downtime reduction: Fast field replacement; typically no panel rework required.
Cost control: Extends the life of existing drive assets without a full drive replacement.
Technical support: Guidance on compatibility, firmware alignment, and parameter restore on request.
Environment: Install inside a clean, dry control cabinet with adequate ventilation; avoid condensation and conductive dust.
ESD safety: Use grounded wrist straps and antistatic mats when handling; keep the board in ESD packaging until installation.
Wiring & connectors: Verify backplane alignment; seat fiber‑optic connectors fully without bending radii too tight.
Parameter handling: Back up the drive parameters before removal; restore and verify after replacement.
Routine care: Periodically inspect for contamination; lightly clean with dry air; check for secure connections.
Firmware: In many cases the board follows the host drive firmware; confirm compatibility if the drive has non‑standard options.
CE and UL: Intended for use within CE/UL certified ABB drive systems.
RoHS: Components and finishes typically meet RoHS requirements for service parts.
ISO: Manufactured under ABB’s quality management systems (commonly ISO 9001 at the factory level).
Warranty: 365‑day warranty against functional defects under normal use.
Note: Compatibility may depend on drive frame size and revision. Share the drive type code and serial number to verify fit before ordering.
