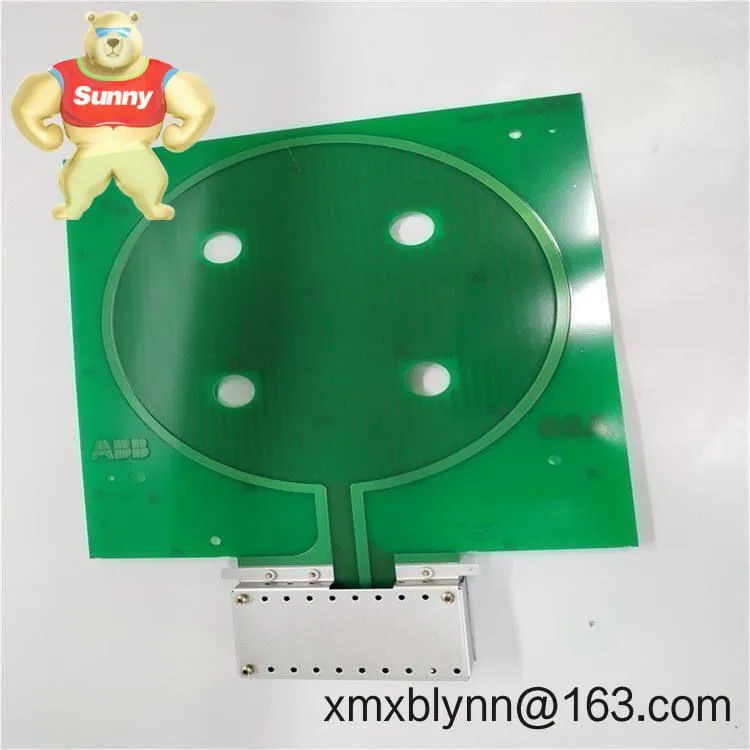

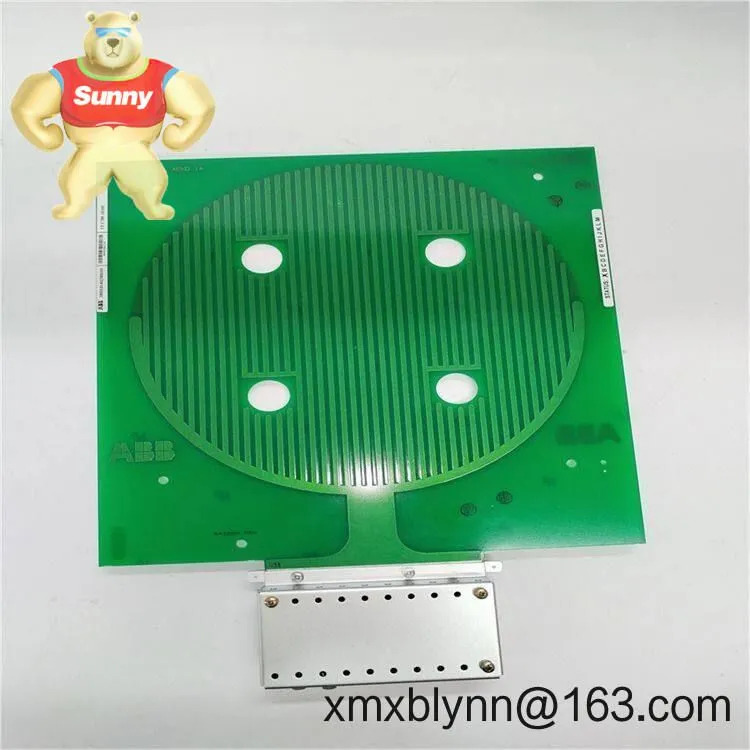

The ABB UFC789AE101, order code 3BHE014023R0101, is a plug-in controller/interface board designed for ABB system racks. From my experience, it’s typically used as a core signal and communication module in installed ABB DCS and drive/excitation cabinets, where long-term stability and drop‑in compatibility matter most.
If you’re maintaining legacy ABB platforms and need a dependable spare or replacement, this module seems to be a solid fit, minimizing downtime while preserving existing wiring and engineering logic.
Direct system-rack integration – Plug-in Eurocard-style board for ABB racks, keeping cabinet layouts unchanged in most cases.
Backplane-powered – Receives power and system-bus signals via the backplane, simplifying field wiring.
Deterministic system communications – Designed to maintain stable, real-time exchange on ABB system buses for process reliability.
Service-friendly diagnostics – Front-panel status indication (LEDs and labeling on most UFC-series boards) typically speeds fault isolation.
Lifecycle support – Often used to extend the service life of installed ABB control assets without re-engineering the entire system.
Proven in harsh environments – Intended for closed control cabinets with industrial temperature and vibration expectations.
Process automation upgrades in power generation, water & wastewater, pulp & paper, and chemicals.
Drive and excitation cabinets where ABB UFC-series modules are standard.
Lifecycle support for installed ABB DCS platforms in metals, mining, and oil & gas.
Critical spares strategies for sites aiming to reduce MTTR and protect production windows.
Drop-in compatibility – Keeps existing engineering intact, avoiding requalification in most cases.
Operational continuity – Stabilizes legacy system performance while you plan long-term migrations.
Cost control – Typically more economical than platform replacement, with minimal integration cost.
Risk reduction – Known behavior in ABB racks reduces commissioning surprises.
Supportability – Clear part IDs (UFC789AE101 / 3BHE014023R0101) simplify MRO logistics and spares tracking.
Cabinet & environment – Install in a clean, ventilated control cabinet. Maintain ambient within the system spec (typically 0–55°C) and avoid condensation.
ESD handling – Use grounding straps and ESD-safe packaging. Only handle by the front panel or edges.
Power-down procedure – In many cases, the rack should be de-energized before insertion/removal; follow your plant LOTO and ABB system manual.
Backplane & seating – Inspect connectors, align rails, and secure the front-panel screws to prevent vibration issues.
Routine care – Quarterly visual checks, gentle dust removal, and verification of front LED diagnostics. Confirm firmware/hardware revision compatibility with adjacent modules when applicable.
Documentation – Record the board’s serial, revision (R0101), and installation date to streamline future maintenance.
Compliance – ABB industrial control hardware is typically designed to meet CE and RoHS requirements when used within approved system cabinets.
Manufacturing standards – Built under ABB’s quality systems (commonly ISO 9001 for production sites).
Warranty – For new units, ABB’s standard manufacturer warranty usually applies; warranty terms can vary by channel and region. Refurbished units often include a limited repair/replace warranty—confirm at order.
If you’re matching a specific rack or controller family, feel free to share the host system ID and installed firmware levels. You might notice that minor revision differences matter in some plants, and checking these up front typically saves an extra outage window.
